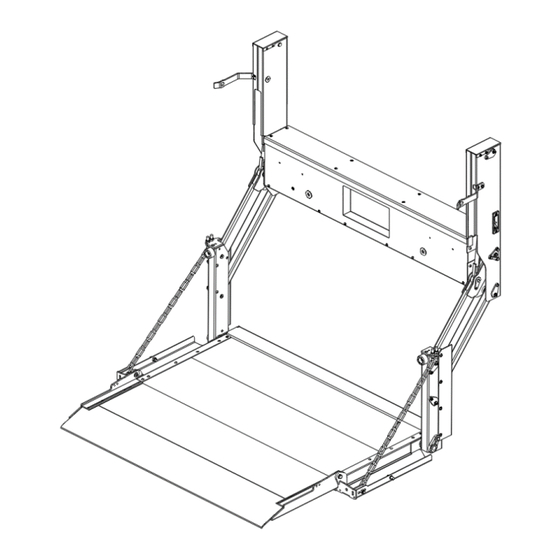

DH-P3*
OPERATION MANUAL
Manufacturer:
DHOLLANDIA N.V.
Zoomstraat 9
9160 LOKEREN (Belgium)
Tel : +32 (0)9 349 06 92
Fax : +32 (0)9 349 09 77
e-mail : info@dhollandia.be
website : www.dhollandia.com
Read the manual in its entirety before operating the tail lift
Keep this manual in the vehicle cab, as reference for the driver and tail lift operator
Order ref: MD043.EN
Doc: USE_CE UKCA operation manual DHP3_EUR EN_2024
Rev: 0 Date: APR. 20, 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DH-P3 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dhollandia DH-P3 Series

Summary of Contents for Dhollandia DH-P3 Series

  • Page 1 9160 LOKEREN (Belgium) Tel : +32 (0)9 349 06 92 Fax : +32 (0)9 349 09 77 e-mail : info@dhollandia.be website : www.dhollandia.com Read the manual in its entirety before operating the tail lift Keep this manual in the vehicle cab, as reference for the driver and tail lift operator Order ref: MD043.EN...

  • Page 2: Table Of Contents

    Operating instructions of the DH-P3.07 ..........................28 Operating instructions of the DH-P3G.07 ..........................31 Unlocking and locking the platform ............................. 35 The use of stabilizing legs ..............................36 DECALS ....................................... 38 MEANING OF SAFETY AND WARNING SIGNS ........................41 END NOTE ....................................43 DHOLLANDIA...

  • Page 3: Understanding Safety And Warning Signs

    Consult section 11 from page 41 onwards for an overview of signs and symbols used in DHOLLANDIA manuals, and their meaning. Please take special notice of the following signs used in the manual. They indicate the likelihood and severity of a potential injury if a person fails to follow the instructions presented on the safety sign.

  • Page 4: Contact Information And Disclaimers

    NOTICE Please confirm you have reviewed the most up-to-date version of this manual prior to operation of the associated DHOLLANDIA tail lift. See below for instructions to download the latest version of the manual.

  • Page 5: General Introduction

    4 INTENDED USE DHOLLANDIA tail lifts are designed to be fitted to commercial vehicles (commercial trucks, pick-up trucks and service bodies), and shall be used exclusively to load and unload the goods transported on the vehicle it is fitted to, within the limits of the load chart, in compliance with the operator instructions and safety instructions described in this manual.

  • Page 6: Identification

    5 IDENTIFICATION Every DHOLLANDIA tail lift is identified by and labelled • with a unique 8-digit serial number (with or without a space between the first and last 4 digits). Use this number for any inquiry on a particular tail lift, or when ordering replacement parts.

  • Page 7: Description And Tail Lift Terminology

    6 DESCRIPTION AND TAIL LIFT TERMINOLOGY GENERAL DHOLLANDIA tail lifts are developed and manufactured using state-of-the-art technology, high quality materials and components, • and highly skilled workmanship. They comply with the European CE and UKCA safety regulations mentioned in the Declaration of Conformity issued with each lift (unless otherwise agreed for tail lifts exported outside the CE / UKCA region).
  • Page 8 DHOLLANDIA...
  • Page 9 Mechanical locks L+R: 2 locking devices left and right with lever, to secure the platform [8] and arm assemblies [4-5-7] in their travel position in case of accidental loss of hydraulic pressure, when the tail lift is not being used. DHOLLANDIA...
  • Page 10 DHOLLANDIA...

  • Page 11: Safety Devices

    SAFETY DEVICES DHOLLANDIA tail lifts are equipped with multiple safety devices in order to ensure that goods can be loaded and unloaded with maximum safety for the operator, any incidental bystanders, and the load itself. The following safety devices are incorporated or...

  • Page 12: Safety Instructions For Using The Tail Lift

    7 SAFETY INSTRUCTIONS FOR USING THE TAIL LIFT DO NOT USE TAIL LIFT WITHOUT ADEQUATE SAFETY AND OPERATOR TRAINING DHOLLANDIA tail lifts shall be exclusively used to load and unload the goods transported on the carrying vehicle, within the limits •...
  • Page 13 NOTICE DHOLLANDIA offers optional platform mounted flashing lights and flags to make the platform more visible to other people. Please visit www.dhollandia.com or contact your national DHOLLANDIA distributor for more information. See page 3 for contact info.
  • Page 14 Inspect the tail lift prior to each use. If any unsafe condition exists or unusual noises or movements are noticed, DO NOT use • the tail lift and contact an authorized DHOLLANDIA service agent for repair. Please see ‘pre-trip inspection’ procedures under 7.5 from page 19 onwards.
  • Page 15 ALWAYS be sure to clearly identify to other drivers that the tail lift is in use. DHOLLANDIA recommends use of warning cones to clearly identify to drivers that the tail lift is being operated.
  • Page 16 DHOLLANDIA...

  • Page 17: Danger Zones, Risk Of Crush And Shear Injury

    → When operating the tail lift from a position on the ground, ALWAYS stand at the side of vehicle body, at a safe distance of minimum 25 cm away from the moving platform. DHOLLANDIA...
  • Page 18 NEVER reach over or through any of • the moving parts of the lift. NEVER operate a control switch or • stand in the path of the platform while unfolding the platform. ALWAYS keep visual control over the • entire work area of the lift. DHOLLANDIA...
  • Page 19 → ALWAYS stand clear of the range of motion of the platform and moving parts of the tail lift; → Keep hands, feet and upper body clear of pinch points and moving parts of the tail lift; → DO NOT allow any other person to stand near the tail lift and its platform. DHOLLANDIA...

  • Page 20: Safe Operator Position

    Therefore NEVER operate a control switch or stand in the path of the platform while unfolding the platform. • DHOLLANDIA...

  • Page 21: Instructions For Working At Loading Docks

    Improper use of the tail lift will put the operator and other parties at great risk of serious bodily injury or death. • DHOLLANDIA can assist in making risk assessments and safe work instructions for applications not covered in this manual. •...

  • Page 22: Recommended Daily Pre-Trip Inspection

    • NOTICE Authorized DHOLLANDIA service agents may be found at www.dhollandia.com or by calling your regional DHOLLANDIA distributor. See page 3 for contact info. Before operating the tail lift, the operator must conduct the following daily pre-trip inspection. Use caution: stay clear of the area directly behind the platform while conducting the daily pre-trip inspection.
  • Page 23 Remember: if any part of the pre-trip inspection reveals a need for service or repair → DO NOT use the tail lift until it has been serviced or repaired by a qualified service technician. → Switch OFF power at the main battery disconnect switch or cabin switch DHOLLANDIA...

  • Page 24: Importance Of Preventative Maintenance

    → Attach a clear and highly visible warning to the platform and the external control box. → Warn your supervisor and have the vehicle put out of service. → Contact an authorized DHOLLANDIA service agent to repair the tail lift prior to any further use.

  • Page 25: Load Charts And Correct Loading Procedures

    • load chart with great care. DHOLLANDIA disclaims liability for all personal bodily injury and / or property damage that results from overloading practices. • The maximum rated capacity is the maximum weight that the tail lift can carry under the following best possible circumstances: •...
  • Page 26 Lower and rest the pallet or load on the platform • surface to prevent it from shifting position while lifting and lowering. DHOLLANDIA...
  • Page 27 / lower it on the platform. NEVER use the platform to level the • ground surface, or to push or pull loads or material by means of the platform. NEVER use the platform to move snow or other debris. DHOLLANDIA...

  • Page 28: Operating Instructions - Principles And Procedures

    • distributor for more information, prior to ordering your tail lift. See contact info on page 3. The most popular options are outlined below. Contact your national DHOLLANDIA distributor for operation instructions on other • models, or models with different configurations, prior to operating the tail lift. See contact info on page 3.

  • Page 29: Switching The Main Power On/Off

    In case of combined system, (main battery disconnect and cabin switch) both must be switched on to activate the tail lift. Switching off only one of two will deactivate the tail lift, but it is strongly recommended to switch-off both. NEVER leave the main battery disconnect switch on while tail lift is not is use. DHOLLANDIA...

  • Page 30: Operating Instructions Of The Dh-P3.07

    LOWER the platform to medium height. NEVER operate a control switch or stand in the path of the platform while unfolding the platform. Manually unfold the flip-over point. If so equipped, deploy the roll stops and guard rails. DHOLLANDIA...
  • Page 31 Before lifting and lowering, ALWAYS and instructions at all times. make sure the load is secured on the platform surface. If the platform is not equipped with factory supplied roll stops, immobilize the load by means of adequate securement devices. DHOLLANDIA...
  • Page 32 Additionally, turning the main battery disconnect switch counter-clockwise switch in the pump unit, or both if both are (if so equipped), or switching off the cabin switch, will switch off the electrical power to available). the tail lift. DHOLLANDIA...

  • Page 33: Operating Instructions Of The Dh-P3G.07

    Switch on the electrical power to the tail lift If so equipped, LOWER the mechanical or getting started. Follow ALL safety and (cabin switch or main battery disconnect hydraulic stabilizing legs into work operation instructions. switch in the pump unit, or both if both are position. available). DHOLLANDIA...
  • Page 34 ALWAYS push the load from the vehicle body onto the ALWAYS do so from a safe operator platform. position, as described in 7.4 on page 18. ALWAYS follow the dedicated safe work instructions issued by your health and safety management. DHOLLANDIA...
  • Page 35 LIFT and pressurize it after that. NEVER operate a control switch or stand in the path of the platform while unfolding the platform. DHOLLANDIA...
  • Page 36 To avoid bodily injury, ALWAYS use the designated grab handle to manually open or close the • platform and its guard rails, and ALWAYS beware of pinch points. DHOLLANDIA...

  • Page 37: Unlocking And Locking The Platform

    To lock the platform again, proceed in opposite sequence. ALWAYS secure the mechanical locks on both sides of the lift. • ALWAYS mount the safety clips on both sides of the lift. In order to increase the level of safety against abuse, theft etc., the safety locks can be replaced by a pad lock. • DHOLLANDIA...

  • Page 38: The Use Of Stabilizing Legs

    THE USE OF STABILIZING LEGS DHOLLANDIA tail lifts are available with 2 types of stabilizing legs: • → Hydraulic stabilizing legs are operated via the main external control box. They are available in capacities of 2.5 tons, 4 tons and 10 tons, and are therefore suitable for a wide range of commercial vans and trucks.
  • Page 39 Therefore, ALWAYS operate the legs from a position at the side of the vehicle body, NOT from a position underneath the body. NOTICE The use of stabilizing legs is mandatory on certain vehicles. Consult the operation manual and / or the Fitting and Body Building Instructions from the vehicle manufacturer. DHOLLANDIA...

  • Page 40: Decals

    NEVER remove or paint over any decal. Missing, worn or illegible warning decals must be immediately replaced. Get free • replacement decals from DHOLLANDIA. Contact your regional DHOLLANDIA distributor. See page 3 for contact info. The operator should comply with all affixed safety and instructions decals. Be aware that the decals merely summarize the main •...
  • Page 41 ❶ ❷ ❸ ❹ ❺ ❻ ❼ ❽ DHOLLANDIA...
  • Page 42 • Tail lift decals used and affixed in areas, other than the rear of the vehicle: Cabin switch in driver’s cabin to switch electrical power to tail lift on / off (if so equipped) DHOLLANDIA...

  • Page 43: Meaning Of Safety And Warning Signs

    11 MEANING OF SAFETY AND WARNING SIGNS WARNING signs MANDATORY ACTION signs Overview and keep visual control over the working Contact your regional DHOLLANDIA distributor. area of the tail lift at all times. General warning sign used to alert the user to Consult the DHOLLANDIA website.
  • Page 44 Switch OFF the electrical power to the lift via the main battery disconnect switch and / or cabin switch. This is an operation to be executed manually (as opposed to an electrical function controlled by means of one of the control units). DHOLLANDIA...

  • Page 45: End Note

    • www.dhollandia.com → Country & language selection → Downloads → Checklists → … select required manual All maintenance and repair work should be performed by authorized DHOLLANDIA service agents and using only authorized • OEM DHOLLANDIA replacement parts. Consult the separate MAINTENANCE AND REPAIR MANUAL for safety instructions, maintenance guidelines, and •...
