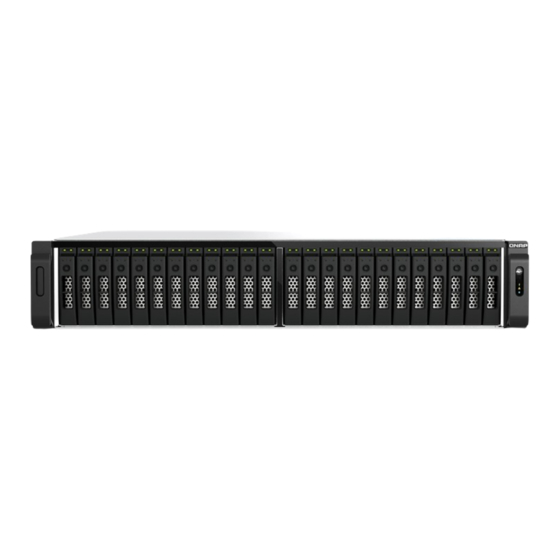

TS-h3077AFU
User Guide
Document Version: 1
04/01/2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-h3077AFU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for QNAP TS-h3077AFU

Summary of Contents for QNAP TS-h3077AFU

  • Page 1 TS-h3077AFU User Guide Document Version: 1 04/01/2024...

  • Page 2: Table Of Contents

    TS-h3077AFU User Guide Contents 1. Important Information Safety information..............................3 2. Product Overview About the TS-h3077AFU............................5 Hardware specifications............................5 Package contents...............................8 Components................................8 Front panel................................8 Rear panel................................9 System board...............................10 Drive numbering..............................10 Installation requirements............................11 Setting up the NAS..............................11 3.
  • Page 3 Recovering unintentionally removed healthy drives...................55 Support and other resources..........................55 7. Glossary Cloud Key.................................. 56 myQNAPcloud................................56 myQNAPcloud Link..............................56 Qfinder Pro................................56 QTS.....................................56 QuTS hero................................. 56 8. Notices Limited warranty..............................57 Disclaimer................................. 57 Copyright and trademarks............................57 GNU General Public License........................... 58 CE notice...................................

  • Page 4: Important Information

    Please keep the original packaging and packaging materials. If you want to return the product or send it for repairs, please use the original packaging to avoid damage. QNAP reserves the right not to provide a refund or warranty service for products that are damaged due to improper packaging.
  • Page 5 TS-h3077AFU User Guide • Keep batteries out of reach of children. • If you think batteries may have been swallowed or placed inside any part of the body, seek immediate medical attention. • To avoid potential battery explosion, causing injury or damage to components, ensure that you replace the existing battery with a battery of the same type.

  • Page 6: Product Overview

    This chapter provides basic information about your QNAP device. About the TS-h3077AFU Powered by an AMD Ryzen™ 5 7000 series or AMD Ryzen™ 7 7000 series processor, the TS-h3077AFU is designed to deliver a scalable platform for enterprise-level solutions. Featuring thirty 2.5-inch SATA drive...
  • Page 7 TS-h3077AFU User Guide Component TS-h3077AFU-R5-32G TS-h3077AFU-R7-64G Drive bays 30 x 2.5-inch SATA 6 Gbps The drive bays are backward compatible with SATA 3 Gbps drives. Drive compatibility 2.5-inch SATA solid-state drives Important For the list of compatible drive models, go to https:// www.qnap.com/compatibility.
  • Page 8 • Rail kits are not included with the NAS and must be purchased separately. For details, contact an authorized reseller or go to https://shop.qnap.com. • Information on rail kit installation can be found in the installation guide included in the rail kit package.

  • Page 9: Package Contents

    TS-h3077AFU User Guide For the list of compatible drive models and expansion cards, go to https://www.qnap.com/ compatibility. Package contents Item Quantity TS-h3077AFU Power cords Cat6a Ethernet cable Screws for 2.5-inch drives Quick Installation Guide (QIG) Components Front panel Component Component...

  • Page 10: Rear Panel

    TS-h3077AFU User Guide Rear panel Component Component 2.5 Gigabit Ethernet speed LED Drive status LED 2.5 Gigabit Ethernet activity LED Power supply unit 1 10 Gigabit Ethernet speed LED Power supply unit 2 10 Gigabit Ethernet activity LED Management port...

  • Page 11: System Board

    TS-h3077AFU User Guide System board Component Component System fan 4 PCIe slot 3 (PCIe 4.0 x4) System fan 3 Memory slot 1 (Channel A, DIMM 0, black) System fan 2 Memory slot 2 (Channel A, DIMM 1, blue) System fan 1 Memory slot 3 (Channel B, DIMM 0, black) PCIe slot 1 (PCIe 4.0 x4)

  • Page 12: Installation Requirements

    TS-h3077AFU User Guide Rear Drive Numbering Installation requirements Category Item Environment • Room temperature: 0˚C to 40˚C (32˚F to 104˚F) • Non-condensing relative humidity: 5% to 95% • Wet-bulb temperature: 27˚C (80.6˚F) • Flat, anti-static surface without exposure to direct sunlight, liquids, or chemicals •...
  • Page 13 TS-h3077AFU User Guide 3. Install drives. For details, see Installing 2.5-inch solid-state drives. 4. Optional: Replace or install additional memory modules. For details, see Replacing memory modules 5. Optional: Install expansion cards. For details, see Installing expansion cards. 6. Optional: Connect expansion units.

  • Page 14: Installation And Configuration

    TS-h3077AFU User Guide 3. Installation and Configuration This chapter provides specific hardware and firmware installation and configuration steps. Hardware installation This section provides information on installing or replacing drives, memory modules, expansion cards, expansion units, redundant power supply units, system fans, and rail kits.
  • Page 15 TS-h3077AFU User Guide b. Slide the rear top cover back. c. Lift the rear top cover off the device. 5. Remove the front top cover. Note This step is necessary for replacing memory modules and system fans. You can skip this step if you are installing expansion cards only.

  • Page 16: Attaching The Case Covers

    TS-h3077AFU User Guide b. Slide the front top cover forward. c. Lift the front top cover off the device. Attaching the case covers The device has two top covers. If both covers are removed, you must attach the front top cover before you can attach the rear top cover.
  • Page 17 TS-h3077AFU User Guide • Moving fan blades: Keep your hands and other body parts away from moving fan blades. • Other moving components: Keep your hands and other body parts away from other moving components. 1. Attach the front top cover.
  • Page 18 TS-h3077AFU User Guide 2. Attach the rear top cover. a. Place the rear top cover on the device. b. Slide the rear top cover forward. c. Attach the screws that secure the rear top cover to the chassis. Installation and Configuration...

  • Page 19: Installing 2.5-Inch Solid-State Drives

    TS-h3077AFU User Guide Installing 2.5-inch solid-state drives For the list of compatible drive models, go to https://www.qnap.com/compatibility. Warning • Installing a drive deletes all data on the drive. • Observe electrostatic discharge (ESD) procedures to avoid damage to components. 1. Remove the drive tray.
  • Page 20 TS-h3077AFU User Guide 2. Install a drive on the tray. a. Place the drive on the tray so that the holes on the bottom of the drive are aligned with the holes on the bottom of the tray. b. Attach the screws.

  • Page 21: Replacing Memory Modules

    Push the handle to secure the tray in place. Replacing memory modules The TS-h3077AFU has 4 memory slots. You can increase the memory capacity of the NAS by upgrading memory modules. For optimal dual-channel performance, replace memory modules in pairs.
  • Page 22 TS-h3077AFU User Guide • Moving fan blades: Keep your hands and other body parts away from moving fan blades. • Other moving components: Keep your hands and other body parts away from other moving components. 1. Power off the device.
  • Page 23 TS-h3077AFU User Guide Warning • Do not touch the internal components, particularly the metal connectors. • Do not bend the module. 6. Install a new module. a. Align the notch with the ridge in the slot. b. Insert the module into the slot.

  • Page 24: Installing Expansion Cards

    Check the value for Total memory. Installing expansion cards The TS-h3077AFU supports selected expansion cards, some of which require QNAP PCIe brackets. QNAP- branded expansion cards purchased from the company website are shipped with the brackets necessary to fit the TS-h3077AFU.
  • Page 25 Remove the screw that secures the cover to the bracket. b. Pull the cover away from the slot. 7. Optional: Attach the QNAP bracket to the expansion card. a. Remove all screws of the existing bracket. Installation and Configuration...
  • Page 26 TS-h3077AFU User Guide b. Carefully pull the bracket away from the card. c. Attach the QNAP bracket to the card using the same screws. d. Verify that the bracket is secured to the card. 8. Install the expansion card. a. Hold the card by the edges.

  • Page 27: Expansion Unit Installation

    12. Power on the NAS. Expansion unit installation The TS-h3077AFU supports PCIe, SAS, SATA, and USB expansion units. For details, see the table below. You can purchase storage expansion accessories from QNAP or an authorized reseller. For details, go to https://shop.qnap.com/.
  • Page 28 TS-h3077AFU User Guide Expansion Unit Description Required Accessories Model TL-R2400PES-RP • Uses a PCIe 32 Gbps or 64 • One of the following host bus adapter and Gbps (SFF-8644) interface cable pairings: • Supports SATA HDD/SDD • Adapter: QXP-3X4PES Cable: CAB-PCIE10M-8644-4X •...
  • Page 29 Important A QNAP QXP host bus adapter is required for connecting PCIe expansion units to a host device. Third-party host bus adapters are not compatible with QNAP expansion units. 2. Connect one or more PCIe expansion units to the NAS.
  • Page 30 TS-h3077AFU User Guide 3. Power on the expansion units. 4. Power on the NAS. 5. Verify that the expansion units are recognized by the NAS. a. Log on to QuTS hero as an administrator. b. Go to Main Menu > Storage & Snapshots > Overview > System .
  • Page 31 2. Connect the expansion units to the NAS using the following topology. Important QNAP recommends always using dual-path configuration to prevent storage downtime due to expansion unit failure or cable disconnection. Single-path configuration should be used only in a situation where it is not possible to use dual-path configuration.
  • Page 32 Installing expansion cards. Important A QNAP QXP host bus adapter is required for connecting SATA expansion units to a host device. Third-party host bus adapters are not compatible with QNAP expansion units. 3. Connect the expansion unit to the NAS.

  • Page 33: Hot-Swapping Redundant Power Supply Units

    TS-h3077AFU User Guide 3. Power on the expansion units. 4. Power on the NAS. 5. Verify that the expansion units are recognized by the NAS. a. Log on to QuTS hero as an administrator. b. Go to Main Menu > Storage & Snapshots > Overview > System .

  • Page 34: Replacing System Fans

    TS-h3077AFU User Guide 3. Insert the new PSU. 4. Connect the power cord to the PSU and the electrical outlet. Replacing system fans The fan unit of the device contains four system fans to ensure adequate cooling. Warning • Only qualified personnel should perform the following steps. Failure to follow instructions can result in serious injury or death.
  • Page 35 TS-h3077AFU User Guide • Moving fan blades: Keep your hands and other body parts away from moving fan blades. • Other moving components: Keep your hands and other body parts away from other moving components. 1. Power off the device.
  • Page 36 TS-h3077AFU User Guide 7. Install a new fan. a. Align the fan to the screw holes on the fan unit. b. Attach the rubber pins that secure the fan to the fan unit. 8. Install the fan unit. a. Connect the power connectors of all fans to the system board.

  • Page 37: Rail Kits

    You can also install the QNAP QTS operating system. If your NAS is connected to the internet, the option to install QTS will appear in the Smart Installation Guide wizard using any of the methods in the table. You can also manually download the QTS firmware from https://download.qnap.com.

  • Page 38: Initializing Quts Hero Using Qfinder Pro

    3. Run Qfinder Pro on a computer that is connected to the same local area network. Note To download Qfinder Pro, go to https://www.qnap.com/utilities. 4. Locate the NAS in the list and then double-click the name or IP address. The Smart Installation Guide opens in the default web browser.
  • Page 39 ASCII characters. 9. Click Next. 10. Specify the time zone, date, and time. QNAP recommends connecting to an NTP server to ensure that the NAS follows the Coordinated Universal Time (UTC) standard. 11. Click Next. The Configure the network settings screen appears.

  • Page 40: Initializing Quts Hero Using The Cloud Installation Website

    After the initialization, you can click Go to NAS Management to start using QuTS hero and configuring other settings. Initializing QuTS hero using the cloud installation website You can initialize QuTS hero on the cloud installation website, which is designed to help you set up QNAP devices. Warning Initializing QuTS hero deletes all data on the drives.
  • Page 41 TS-h3077AFU User Guide 8. Perform any of the following actions. • To check for the latest available version, click Start. The wizard downloads the latest available version, and then the NAS restarts after the download is complete. If a newer version is not available, the wizard automatically displays the Smart Installation Guide.
  • Page 42 TS-h3077AFU User Guide QNAP recommends connecting to an NTP server to ensure that the NAS follows the Coordinated Universal Time (UTC) standard. 14. Click Next. The Configure the network settings screen appears. 15. Select Obtain an IP address automatically (DHCP).

  • Page 43: Basic Operations

    TS-h3077AFU User Guide 4. Basic Operations This chapter describes basic NAS operations. Power button Operation User Action Result Power on Press the button once. The device powers on. Power off Press and hold the button for 1.5 The device powers off.

  • Page 44: Leds

    TS-h3077AFU User Guide LEDs LEDs indicate the system status and related information when the device is powered on. The following LED information applies only when the drive is correctly installed and when the device is connected to the network or to a host.
  • Page 45 TS-h3077AFU User Guide LAN LED Status Description Orange The device is connected to the network. Note The LAN LED can only detect the device՚s in-built Ethernet port connections. It cannot detect network expansion cards՚ Ethernet port connection status. Flashes orange The device is being accessed from the network.

  • Page 46: Audio Alert

    TS-h3077AFU User Guide 2.5 Gigabit Ethernet Speed LED Status Description Green The network connection is operating at 2.5 Gbps. Orange The network connection is operating at 1 Gbps or 100 Mbps. • The network connection is operating at 10 Mbps.

  • Page 47: Nas Migration

    NAS migration requirements You can only migrate drives to specific NAS models, depending on your source NAS. For the list of NAS models compatible with direct NAS migration, see https://www.qnap.com/go/nas-migration. Your device must meet the following requirements: • QTS NAS supports several types of NAS migration: •...

  • Page 48: Migrating A Nas

    1. Power off the source NAS and the destination NAS. 2. Remove the drives. Important QNAP recommends following the source NAS drive order when installing the drives. Take note of the drive tray order when removing the drives. a. Remove the drives from the source NAS.

  • Page 49: Migrating Nas Data Using Hbs 3

    TS-h3077AFU User Guide b. Remove the drive trays from the destination NAS. 3. Install the drives. a. Install source NAS drives onto the destination NAS drive trays. b. Insert the drive trays into the destination NAS. 4. Power on the destination NAS.
  • Page 50 TS-h3077AFU User Guide Setting Description Password Specify a password that contains 1 to 16 characters from any of the following groups: • Letters: A to Z, a to z • Numbers: 0 to 9 • Special characters: . - _ ~ ! @ # $ % ^ & ( ) { } •...
  • Page 51 TS-h3077AFU User Guide 10. Select the paired folders. Important • All subfolders and files in the selected folder are selected. • You can only sync up to 16 paired folders per job. a. Under the source, click A dialog box opens.

  • Page 52: Quts Hero Nas Migration

    NAS migration requirements You can only migrate drives and system settings to specific NAS models, depending on your source NAS. For the list of NAS models compatible with direct NAS migration, see https://www.qnap.com/en/nas-migration. Your device must meet the following requirements: •...

  • Page 53: Migrating A Nas

    Windows AD configurations must be reconfigured. Licenses Licenses are not migrated. Warning To prevent losing all your software licenses, QNAP recommends deactivating licenses on the source NAS before data migration. Applications If the destination NAS has less RAM than the source NAS, the following features and applications might not function: Virtualization Station, Qsirch, and Snapshots.
  • Page 54 TS-h3077AFU User Guide Important QNAP recommends following the source NAS drive order when installing the drives. Take note of the drive tray order when removing the drives. a. Remove the drives from the source NAS. b. Remove the drive trays from the destination NAS.

  • Page 55: Troubleshooting

    TS-h3077AFU User Guide 6. Troubleshooting This chapter describes basic troubleshooting information. Forcing Qfinder Pro or myQNAPcloud to locate the NAS If Qfinder Pro or myQNAPcloud is unable to locate the NAS during QuTS hero installation, the drives or data may be faulty.

  • Page 56: Recovering Unintentionally Removed Healthy Drives

    Two disks per subgroup fail. Triple Mirror Multiple of 3. (For example, 3, 6, 9, 12 disks and so forth.) ≥ 5 RAID-TP Support and other resources QNAP provides the following resources: Resource Documentation https://download.qnap.com Compatibility List https://www.qnap.com/compatibility NAS Migration Compatibility https://www.qnap.com/go/nas-migration...

  • Page 57: Glossary

    Provides various remote access services such as DDNS and myQNAPcloud Link myQNAPcloud Link Enables you to access QNAP devices over the internet without configuring complex port forwarding settings Qfinder Pro QNAP utility that lets you locate and access QNAP devices in your local area network...

  • Page 58: Notices

    No license, express or implied, by estoppels or otherwise, to any intellectual property rights is granted by this document. Except as provided in QNAP's terms and conditions of sale for such products, QNAP assumes no liability whatsoever, and QNAP disclaims any express or implied warranty, relating to sale and/or use of QNAP products including liability or warranties relating to fitness for a particular purpose, merchantability, or infringement of any patent, copyright or other intellectual property right.

  • Page 59: Gnu General Public License

    TS-h3077AFU User Guide Other company names and products mentioned herein are trademarks or registered trademarks of their respective holders. GNU General Public License Version 3, 29 June 2007 Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
  • Page 60 TS-h3077AFU User Guide “Copyright” also means copyright-like laws that apply to other kinds of works, such as semiconductor masks. “The Program” refers to any copyrightable work licensed under this License. Each licensee is addressed as “you”. “Licensees” and “recipients” may be individuals or organizations.
  • Page 61 TS-h3077AFU User Guide for which you do not control copyright. Those thus making or running the covered works for you must do so exclusively on your behalf, under your direction and control, on terms that prohibit them from making any copies of your copyrighted material outside their relationship with you.
  • Page 62 TS-h3077AFU User Guide a. Convey the object code in, or embodied in, a physical product (including a physical distribution medium), accompanied by the Corresponding Source fixed on a durable physical medium customarily used for software interchange. b. Convey the object code in, or embodied in, a physical product (including a physical distribution...
  • Page 63 TS-h3077AFU User Guide Corresponding Source conveyed, and Installation Information provided, in accord with this section must be in a format that is publicly documented (and with an implementation available to the public in source code form), and must require no special password or key for unpacking, reading or copying.
  • Page 64 TS-h3077AFU User Guide your license, and (b) permanently, if the copyright holder fails to notify you of the violation by some reasonable means prior to 60 days after the cessation. Moreover, your license from a particular copyright holder is reinstated permanently if the copyright...
  • Page 65 TS-h3077AFU User Guide have actual knowledge that, but for the patent license, your conveying the covered work in a country, or your recipient's use of the covered work in a country, would infringe one or more identifiable patents in that country that you have reason to believe are valid.

  • Page 66: Ce Notice

    TS-h3077AFU User Guide PROVIDE THE PROGRAM “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE PROGRAM IS WITH YOU.

  • Page 67: Vcci Notice

    Important Any modifications made to this device that are not approved by QNAP Systems, Inc. may void the authority granted to the user by the FCC to operate this equipment. VCCI notice この装置は、クラス...

  • Page 68: Sj/T 11364-2006

    TS-h3077AFU User Guide SJ/T 11364-2006 本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的年限。本产品可能 包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 0 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...
