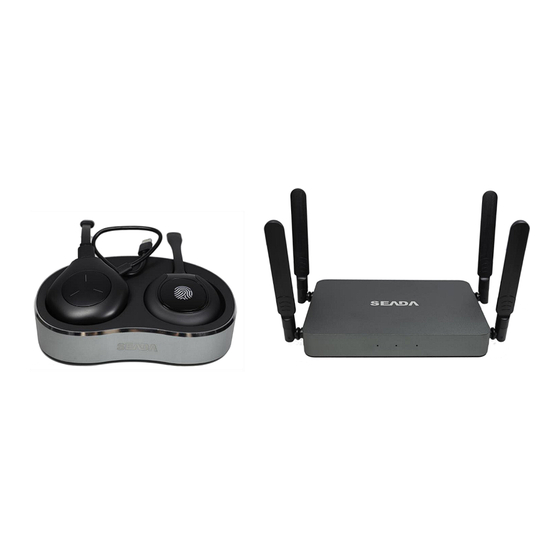

- Page 1 TapPlay™ P900 User Manual Receiver: TP-P900 Transmitter: TP-PDH (HDMI dongle), TP-PDC (Type C dongle) Decking Station: TP-PDS Document No. SD-MA-061 Document Version: 01...
-
Page 2: Table Of Contents
Contents Overview ................................ 1 Specification ..............................4 Panel Layout ..............................5 Hardware Interface ......................... 5 3.1.1 TP-P900 Front Panel ........................5 3.1.2 TP-P900 back Panel ......................... 6 3.1.3 Dongle Front Panel .......................... 7 Software Interface ........................... 9 3.2.1 Home Screen ........................... 9 Installation .............................. - Page 3 5.4.4 Smart Presentation Pen ......................... 20 5.4.5 Purchase More Functions ......................20 5.4.6 Main Transmitter ........................... 20 5.4.7 Cast Authorisation ......................... 20 5.4.8 Display Control Button ........................20 5.4.9 Display PPT Flip Icon ........................20 5.4.10 Chromecast ..........................21 5.4.11 Miracast ..........................
-
Page 4: Overview
1. Overview TP-P900 wireless video processor stands out as a tailor-made solution for expansive display setups that seamlessly integrates multiple video sources and interactive peripherals for BYOM. TP-P900 features a 1-channel 4K HDMI input and 2 channels of 4K HDMI outputs. Its Wi-Fi 6 wireless router supports simultaneous connections for up to 16 devices with 3x3 output splicing for seamless screen casting while ensuring concurrent internet access. - Page 5 TP-PDC/TP-PDH: • Support wireless transmission from PC/Mac to base unit • Support quick switch of the PC signal for less than 1s by clicking • Blue LED, indicating active source signal and power/link • Support wireless pairing • Support USB peripherals such as camera, mic, and speaker over Wi-Fi sharing TP-PDS: •...
- Page 6 Name Description Base Unit Base unit TP-P900 For PC/Mac to share the desktop/extended Dongles/Transmitters desktop. For Android/Windows/Mac devices to share ‘tranScreen’ app the screen. Airplay for IOS For IOS devices to share the screen. Decking station for dongles, compliable with Decking station TP-PDC and TP-PDH Accessories List...
-
Page 7: Specification
2. Specification HDMI Output 2x HDMI Video Output Resolution Up to 3840x2160@60 HDMI Input 1x HDMI HDMI Input Resolution Up to 3840x2160@30 USB interface 1x USB 3.0 Type A and 1x USB 2.0 Type A Storage 16GB Compatible dongles TP-PDC and TP-PDH Compatible 3 party protocols Airplay/DLNA/Miracast... -
Page 8: Panel Layout
3. Panel Layout Overview ⚫ Hardware Interface ◼ TP-P900 Front Panel ◼ TP-P900 Back Panel ◼ TP-PDH/TP-PDC Front panel ⚫ Software Interface ◼ Home Screen Hardware Interface 3.1.1 TP-P900 Front Panel Name Description Front LED indicator (red) Static Red: Power ON Front LED indicator (blue) Static Blue: Hotspot is ON Static Green: Ready to share... -
Page 9: Tp-P900 Back Panel
3.1.2 TP-P900 back Panel Name Description DC Power Power socket to boot up the unit socket LAN Ethernet 1000Mbps Ethernet port port Dual-HDMI Connect HDMI cables from these ports to an output HD or 4K/HDMI2.0 display USB port for TP-DGH pairing, mouse control, USB touch Rear USB 2.0 screen and USB device such as USB camera and speaker connector... -
Page 10: Dongle Front Panel
3.1.3 Dongle Front Panel TP-PDH (left) and TP-PDC (right) are dongles, used for toggling the mirroring from personal PC or Mac onto the main screen. ⚫ When LED indicator is static solid Blue, 1) it’s ready to mirror desktop onto the main screen, 2) if the dongle is connected to the base unit, that means pairing is done. - Page 11 Touch the sensor button to start mirroring desktop Touching onto the main screen. Touch again the sensor button to button terminate the sharing. LED indicator Indicates the status of the dongle. Note: TP-PDC contains a fully functional type-C interface with DP Altmode inside, which supports audio and video transmission.
-
Page 12: Software Interface
Software Interface 3.2.1 Home Screen SD-MA-061 V1.0... - Page 13 Name Description Device name of the base unit. Device name Wi-Fi name of the base unit access point. Hotspot name Wi-Fi password of the base unit. Hotspot password IP address of the base unit connected to Wi-Fi. Show time and date of the unit. TIME Whiteboard function.
- Page 14 When TP-P900 is connected with a USB stick, the 14 USB icon will be displayed. When TP-P900 is connected with an Ethernet 15 Ethernet cable, the icon will be displayed. When TP-P900 Bluetooth is ON, the icon will be 16 Bluetooth displayed.
-
Page 15: Installation
Chrome browser function. 24 Chrome View photos and videos in TP-P900 or external 25 Gallery storage. Calculator function. 26 Calculator Switch source on screen between TP-P900 and 27 Signal Source HDMI input. Browser and manage files in TP-P900 and 28 FileBrowser external storage. -
Page 16: Power Connection
How to install 1. Drill two holes in the wall. 2. Insert 2 flat screws into the 2 holes and fasten. 3. At the bottom of the base unit, plug 2 flat screws into 2 holes of its smallest diameter to fasten. Note: Mounting screws are not included in the box. -
Page 17: Audio Connection
outlet and switch the base unit on. 4. The system will then display the home page and user can switch the input signal to the HDMI input with ‘Signal source’ option. Note that TP-P900 has duplicate HDMI outputs that can be connected to two separate screens. Audio Connection The base unit can transmit the audio output of the PC/Mac, re-direct and send it with the video signal. -
Page 18: Use Of Usb Devices
Use of USB devices USB control: A USB mouse or touch screen can be connected to the base unit. USB mouse ⚫ Single click to select. ⚫ Right-click to return. Touch screen ⚫ Click to select. External USB Devices over Wi-Fi Sharing TP-P900 supports USB Camera and USB speakerphone over Wi-Fi sharing. -
Page 19: Quick Start
5. Quick Start Mobile device: Wireless Connection 1. Connect the mobile device to the base unit via WiFi and download ‘transcreen.app’ from Seada (https://seada.co.uk/downloads/) or type in ‘transcreen.app’ in any browser and download the application needed. 2. For IOS devices, use Airplay to mirror the desktop. -
Page 20: Options For Windows Pc/Mac
5. When the base unit is connected, user can click ‘Start Casting’ to mirror the desktop onto the main screen. 6. Click ‘Stop Sharing’ to stop mirroring or click ‘Pause Sharing’ to pause the mirroring. 7. User can right-click the status icon in Windows taskbar to open up the menu. -
Page 21: Nine View Mirroring
⚫ Window Casting Cast the window of a particular software on the PC/Mac onto the display. Note that in Window Casting, the touchback function will be disabled. ⚫ File Sharing Transfer files to the base unit. When the button is clicked, a notification will pop up on the base unit requesting the permission to receive the file. -
Page 22: Miracast On Android Devices And Win10 Pc
Sharing on IOS devices 1. Connect the IOS device to the same WiFi network as TP-P900. 2. Activate the control center and click the ‘Airplay’ Icon on the Apple device. 3. Select the TP-P900 to start mirroring. 4. User can mirror the screen/music/video/picture of the IOS device wirelessly to the base unit. 5.3.3 Miracast on Android Devices and WIN10 PC Android Devices... -
Page 23: Byom
BYOM Enable/Disable connected USB camera/All-in-one videobar/speakphone. User can also test if they are working in this function. 5.4.4 Smart Presentation Pen Function under development to work with Seada Smart Presentation Pen. 5.4.5 Purchase More Functions Authorised for extra functions. 5.4.6... - Page 24 5.4.10 Chromecast Enable/Disable Chromecast. 5.4.11 Miracast Enable/Disable Miracast. 5.4.12 HDMI Out Audio Enable/Disable audio from HDMI output. 5.4.13 HDMI Output Control After this function has been enabled and before the unit is restarted, the HDMI output of the base unit will be shut down. After the unit has been restarted, if no operation is made, after 20 seconds, HDMI output of the base unit will be shut down again.
