Safety READ AND FOLLOW GENERAL SAFETY SAFETY INSTRUCTIONS! WARNING This is the safety alert symbol. When you see this symbol on your pump or in this manual, look for one of Hazardous pressure! the following signal words and be alert to the potential Install pressure relief valve in discharge pipe.
Table of Contents Thank you for purchasing a top quality, factory tested pump. Page Safety ........................2 Warranty......................3 Installation ......................4-5 Electrical ......................6 Operation ......................7 Maintenance ....................8-10 Troubleshooting ....................11 Repair Parts ......................12 Limited Warranty STA-RITE warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free from defects in material and workmanship for the Warranty Period shown below.

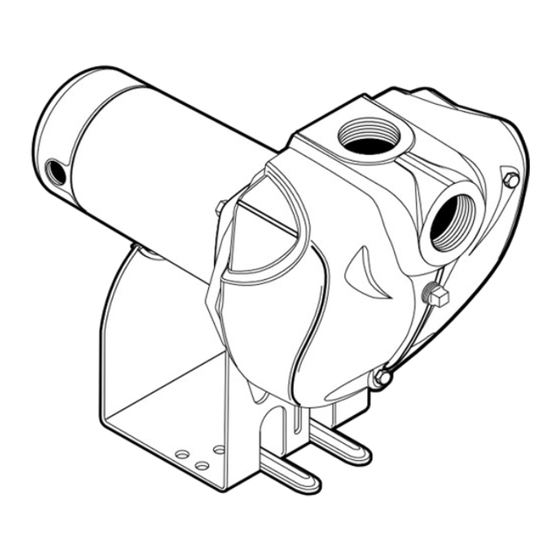

Installation BEFORE YOU INSTALL YOUR PUMP Priming plug NOTICE: Well must not be more than 20’ depth to water. 1. Long runs and many fittings increase friction and reduce flow. Locate Priming tee pump as close to well as possible: use as few elbows and fittings as Suction possible.
Page 5
Installation HORIZONTAL PIPING FROM WELL TO PUMP 1. Never install a suction pipe that is smaller than the suction port of the pump. 1 0 0 2. To aid priming on well point installations, install a line check valve as shown in Figure 2. Be sure check valve flow arrow points toward pump.
Electrical Connection diagram for dual voltage, single-phase 5. Attach the ground wire to the green ground screw motors. Your dual-voltage motor’s terminal board (under 6. Reinstall the Motor end cover the motor end cover) will match one of the diagrams Go to Wiring Connections below.
Page 8
Maintenance 3. Fill pump and suction pipe with water. 4. Replace priming plug, using PTFE pipe thread sealant tape on thread; tighten plug. NOTICE: If a priming tee and plug have been provided for a long horizontal run, be sure to fill suction pipe through this tee and replace plug.
Maintenance 4. Unscrew capacitor clamp and remove capacitor. Do not disconnect capacitor wires to motor. 5. Slide 7/16” open end wrench in behind spring loaded switch on motor end of shaft; hold motor shaft with wrench on shaft flats and unscrew impeller screw (if used) by turning clockwise (left hand thread) when looking into eye of impeller.
Page 10
Maintenance 10. Hold motor shaft with 7/16” open end wrench on shaft flats and screw impeller onto shaft. Be sure you do not touch capacitor terminals with body or any metal object. Tightening impeller will automatically locate seal in correct position. 11.
Troubleshooting SYMPTOM POSSIBLE CAUSE(S) CORRECTIVE ACTION Motor will not run Disconnect switch is off Be sure switch is on Fuse is blown Replace fuse Starting switch is defective Replace starting switch Wires at motor are loose, Refer to instructions on wiring. Check and tighten all wiring. disconnected, or wired incorrectly Capacitor voltage may be hazardous.
Repair Parts 3621 1199SPC MODEL NUMBER DS3HE-01 DS3HF-01 DS3HG-01 DS3HHG-01 Part DS3HE3-01 DS3HF3-01 DS3HG3-01 DS3HHG3-01 Description Qty. 1 HP 1-1/2 HP 2 HP 2-1/2 HP Motor, 115/230V, 1 Phase J218-596PKG J218-601PKG J218-883APKG J218-628A Motor, 230/460V, 3 Phase AP100EL AP100FL AP100GL...
