Peco T8168B-2 Manual

T8168B-2 BACnet™ IP Connection
Connecting to the Thermostat

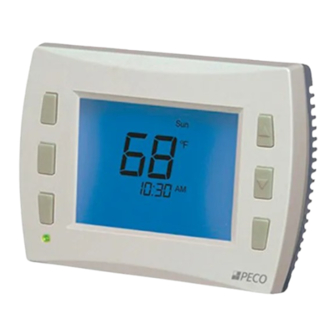

Congratulations on your selection of the PECO T8168B-2 Thermostat. These instructions decribe the process for BACnet™
IP Connection.
Connect the T8168B-2 thermostat to power. The display will turn on and the unit will automatically become accessable on
Wi-Fi.
Open the internet settings on the phone or device and look for the T8168 network. Actual screen images vary for IOS and
Android.
• Select "T8168 xxxxx" (xxxxx can be any 4-5 digits)
• Enter password "12345678"
• Press "Connect"
• Sign into open BACnet™ Configuration Page at IP Address 10.10.0.1 on the T8168#### network
Select T8168 XXXX Network
Internet
Tap a network to connect
Wi-Fi
Building Network
Visitor Network
Connected, secured
Office Network
Disconnect
T8168 #####
DONE
BACnet™ is a trademark of ASHRAE
© COPYRIGHT 2024 PECO Control Systesm. ALL RIGHTS RESERVED.
Enter Password 12345678
Internet
Tap a network to connect
Wi-Fi
T8168 #####
Password
Building Network
12345678
Visitor Network
Connected, secured
Show Password
Office Network
Disconnect
Cancel Connect
T8168 #####
DONE
Select Sign In to T8168 Network
Internet
Tap a network to connect
Wi-Fi
T8168 #####
Sign In to Network
Visitor Network
Connected, secured
Office Network
> See All
DONE
!
1
Sign-In to open BACnet
Configuration Page
Network Details
T8168 #####
X
Forget Sign-In Disconnect Share
Signal Strength
Frequency
Security
More....
P/N 3220-2413 REV 0
