KP-560
Side-Mount Programmable Keypad
User Manual
Features
Side-mount keypad attachment for Posiflex 15"/17" XT series terminals
36 programmable keys with predefined numeric keys + one 6-position lock
switch which is also programmable
Software program for each key
Optional MSR
Interface: USB

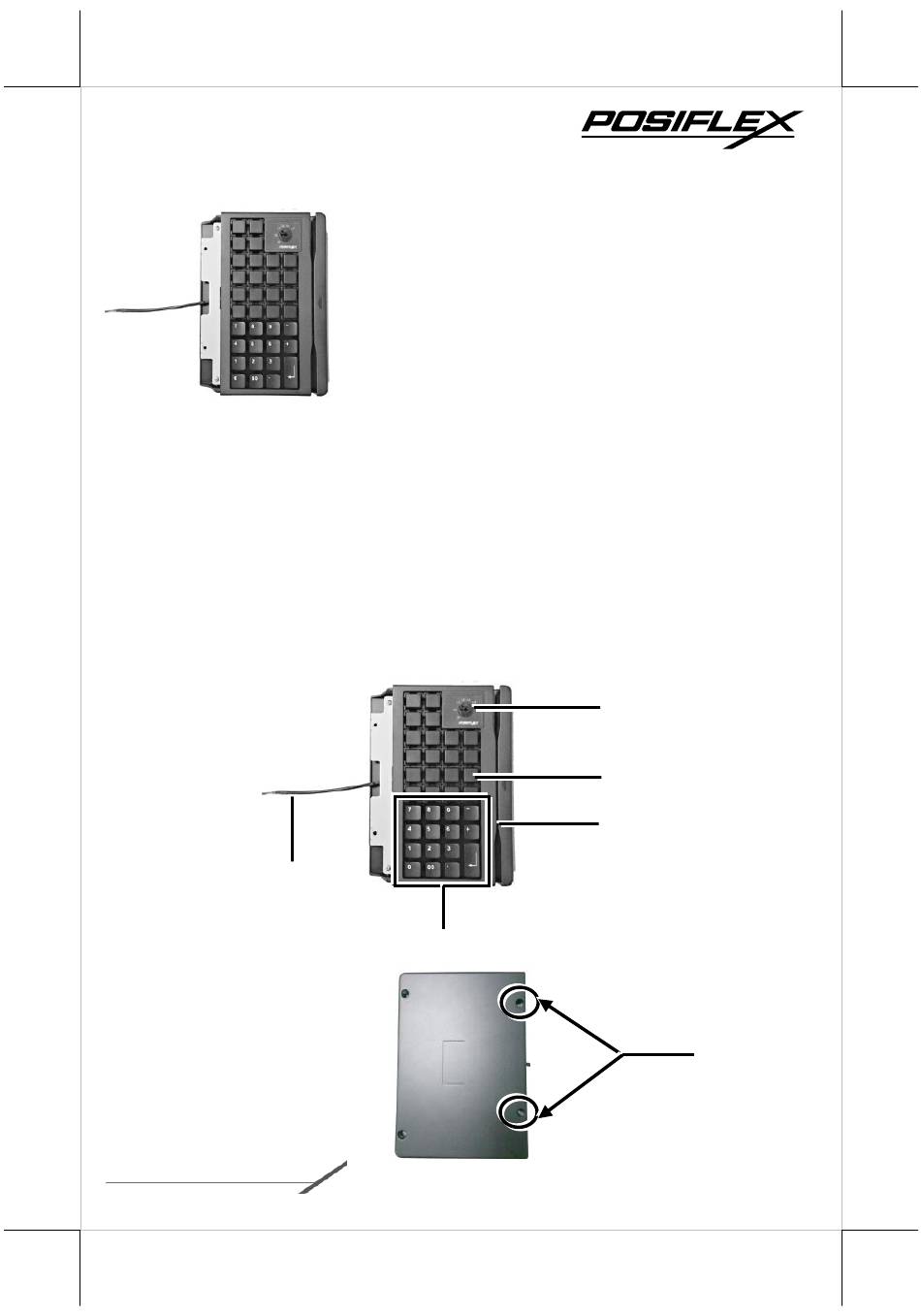

Views of the Magnetic Stripe Reader
Front View
USB I/O cable
Rear View
KP-560 Ver. A0
Package Contents
KP-560 Programmable Keypad......(x1)
Key for 6-Mode Lock Switch....... (x4)
Color Sticker for Keycap..............(x4)
Key Clip.................................(x1)
Protective Cap for Keycap...........(x20)
6-position lock switch
Multi-page programmable keys
3-track Magnetic Stripe Reader
(optional)
Numeric keypad
1
Fixing screw hole
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for POSIFLEX KP-560
Summary of Contents for POSIFLEX KP-560
- Page 1 Key Clip…………………………...(x1) Protective Cap for Keycap…...…..(x20) Features Side-mount keypad attachment for Posiflex 15”/17” XT series terminals 36 programmable keys with predefined numeric keys + one 6-position lock switch which is also programmable Software program for each key ...
- Page 2 FCC NOTES This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart B of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment.
-
Page 3: Hardware Installation
After taking the keycap(s) out of the keypad, you can easily label the keycap(s) with one of the 4-color custom keycap stickers. Hardware Installation During Installation of the KP-560, do NOT power ON your terminal and monitor. Installation of KP-560 onto the 15”/17” XT Series Terminals... - Page 4 Start to install KP-560 onto the terminal according to the following steps. Loosen and remove the two fixing screws from the side mount cover on the back of the right side of the terminal. Remove the side mount cover A from the back of the right side of the terminal.
- Page 5 Move the USB IO cable to the middle, as shown in the right figure. Align the two screw holes of the KP-560 cover with the two screw holes on the terminal. Fix the KP-560 onto the terminal by locking...
-
Page 6: Driver And Utility Installation
The system will automatically detect the KP-560. Programming the KP-560 Keypad The KP-560 keypad can be programmed by using the utility that is installed. However, to avoid end users programming the keypad by mistake, it is suggested that professional technicians implement the keypad programming. - Page 7 ※ The product information and specifications are subject to change without prior notice. To get the detailed information on KP-560, please check this model from Posiflex Global Website.
