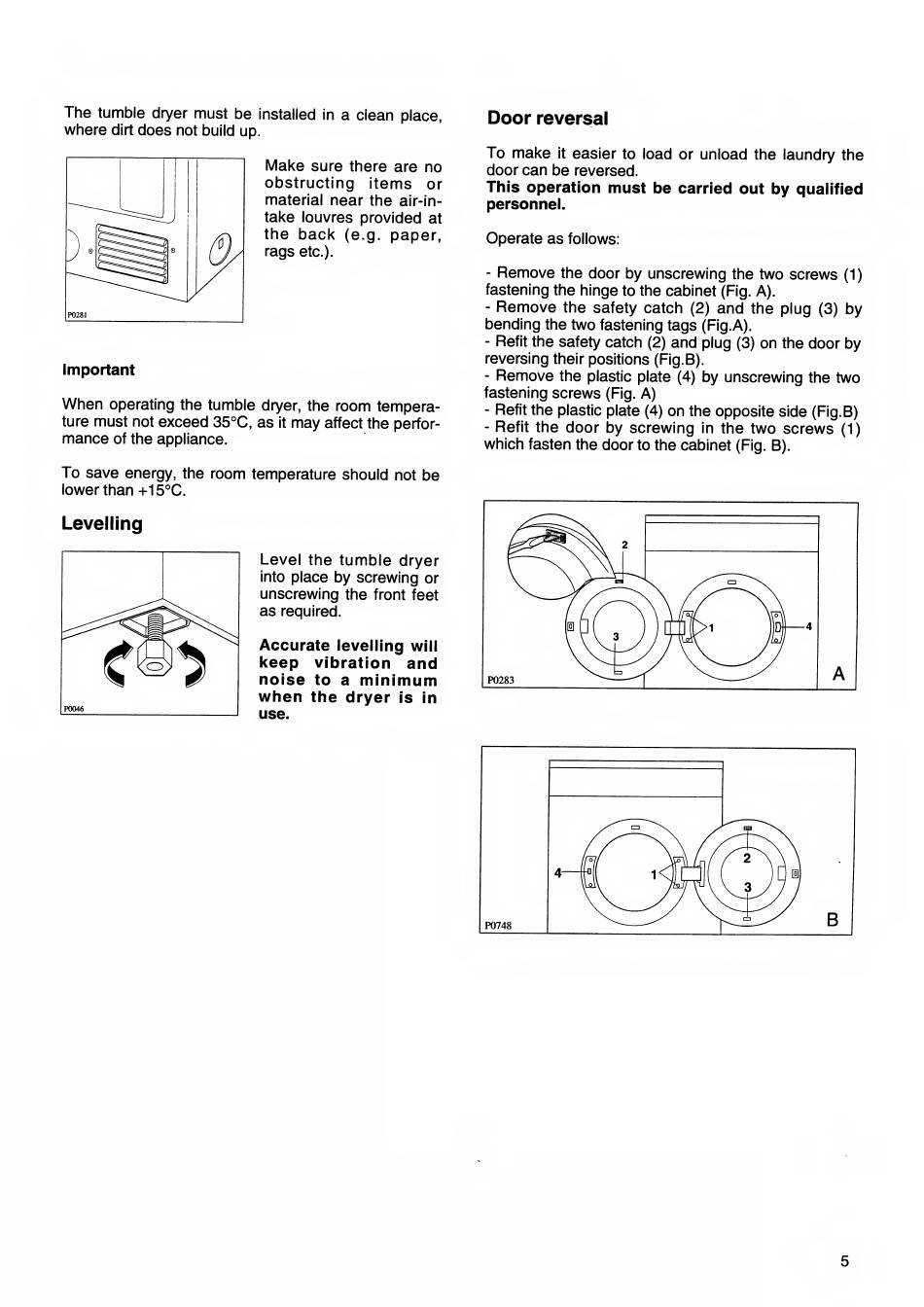

The tumble dryer must be installed in a clean place,
where dirt does not build up.
Make sure there are no
obstructing items or
material near the air-in-
take louvres provided at
the back (e.g. paper,
rags etc.).
Important
When operating the tumble dryer, the room tempera¬
ture must not exceed 35°C, as it may affect the perfor¬
mance of the appliance.
To save energy, the room temperature should not be
lower than +15°C.
Levelling
Level the tumble dryer
into place by screwing or
unscrewing the front feet
as required.
Accurate levelling will
keep vibration and
noise to a minimum
when the dryer is in
use.
Door reversal
To make it easier to load or unload the laundry the
door can be reversed.
This operation must be carried out by qualified
personnel.
Operate as follows:
- Remove the door by unscrewing the two screws (1)
fastening the hinge to the cabinet (Fig. A).
- Remove the safety catch (2) and the plug (3) by
bending the two fastening tags (Fig.A).
- Refit the safety catch (2) and plug (3) on the door by
reversing their positions (Fig.B).
- Remove the plastic plate (4) by unscrewing the two
fastening screws (Fig. A)
- Refit the plastic plate (4) on the opposite side (Fig.B)
- Refit the door by screwing in the two screws (1)
which fasten the door to the cabinet (Fig. B).
5
