Axiom FL120A User Manual

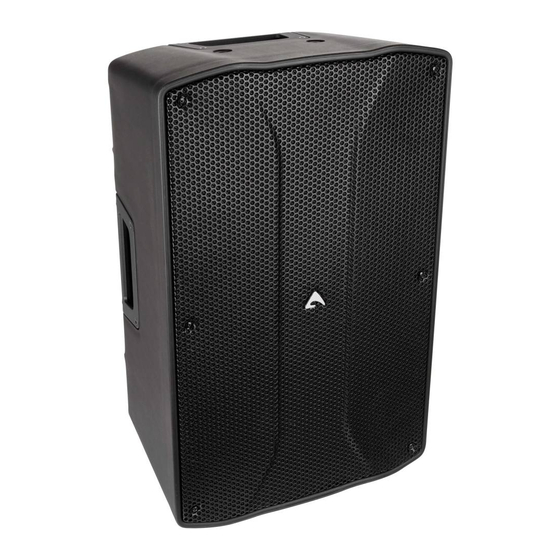

Active portable point source loudspeaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
FL120A
active portable point source loudspeaker
USER MANUAL
revision 2024-03-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FL120A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axiom FL120A

Summary of Contents for Axiom FL120A

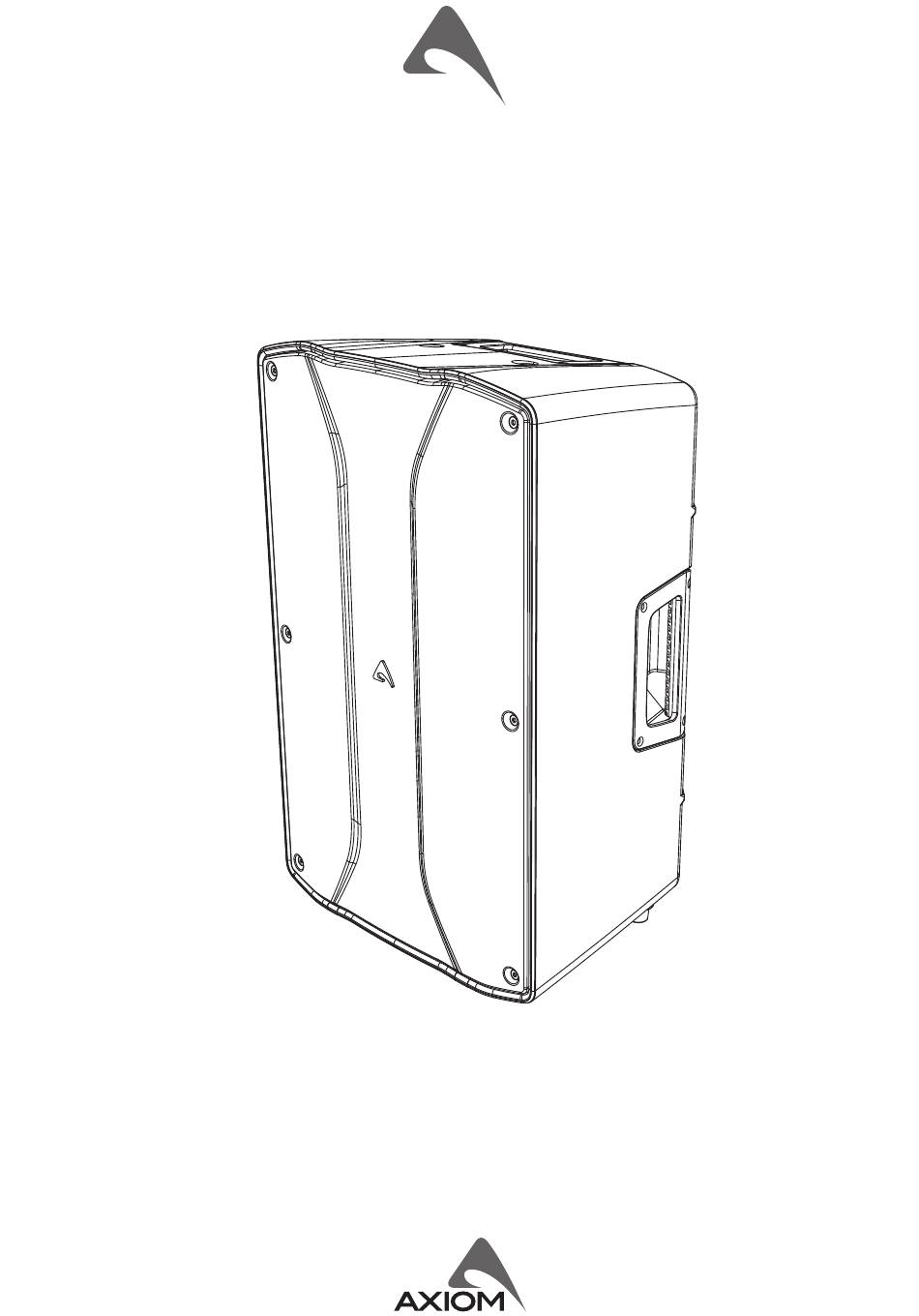

  • Page 1 FL120A active portable point source loudspeaker USER MANUAL revision 2024-03-01...
  • Page 2 IMPORTANT SAFETY INSTRUCTIONS Watch for these symbols: The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure, that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 3 FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 4: Table Of Contents

    The FL DSP offers the choice of 5 optimized EQ presets to adapt the system to different applications. The FL120A is powered by a DA SERIES digital power module, a new generation of CLASS D power amplifier with SMPS. The innovative technology used for these amplifiers offers top-of-the-range performances, such as a superior sound definition at any audio frequency, very high dynamics even for low level signals, and very low distortion even at maximum power.

  • Page 5: Mechanical Drawing

    MECHANICAL DRAWING Handle 35 cm 39 cm 13.8" 15.4" M10 Flying Point Pole Adapter Handle M10 Flying Point 42.0° 42.0° OPTIONAL ACCESSORIES KPTFL120 Wall or Truss Mounting “C” bracket. PLH300 Ø 48-51mm truss tube aluminium coupler with M12 x 50 built-in bolt and fastening nut. COVERFL120 Cover for transport NAC3FXXA-W-L Neutrik Powercon®...

  • Page 6: I/O And Control Operations

    Powercon® NAC3FXXB-W-L power output connector (grey). This is connected in parallel with the MAINS ~ / IN. The maximum load applicable depends on the mains voltage. With 230V~ we suggest to link a maximum of 5 FL120A loudspeakers, with 120V~ we suggest to link a maximum of 3 FL120A loudspeaker.

  • Page 7: Kptfl120 Wall Or Truss Mounting

    KPTFL120 WALL or TRUSS MOUNTING Using the “C” shape bracket the FL120A loudspeaker can be mounted to walls or truss combining it with two PLH300: It allows to aim the speaker in one direction (vertical or horizontal) in 11 steps (0°, ±15°, ±30°, ±35°, ±50°, ±65°).

  • Page 8: Conditions Of Use

    INSTALLATION WARNINGS Proel does not accept any liability for damage caused - Use the C-Shape bracket exclusively for FL120A/P models. to third parties due to improper installation, use of non-original - For wall or ceiling mounting use exclusively adeguate fixings to...
