Contents Introduction............................1 Features ............................2 Mechanics ............................3 Connectors ............................5 Power supply monitoring....................5 Front panel connector......................6 Fan 2 connector.........................6 Intrusion connector for case open detect for optional push-button (opener) .......7 USB port C / D 1 - Dual channel ..................7 Wake On LAN (WOL) connector..................8 CD-ROM audio connector (internal)...................8... -
Page 9: Introduction
Introduction Depending on the configuration chosen, some of the hardware components described may not be available on your system board. You will find further information e. g. in the complete system board Technical Manual and in the "BIOS Setup" description. Further information regarding drivers is provided on the supplied drivers diskettes or on the "Drivers &... -
Page 10: Features
Features Features The table shows assembly versions of this system board as an example. Features D1320-B D1321-A D1322-A Chipset Intel 845 µ-ATX µ-ATX µ-ATX Board Size VGA onboard ü ü ü Audio onboard (AC '97) ü / - ü / ü... -
Page 11: Mechanics

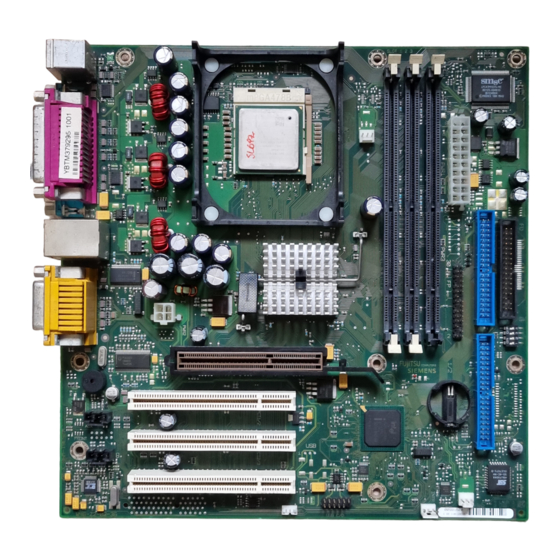

Mechanics Mechanics Layout System board D1320 / D1321 / D1322 µ-ATX 9.6" x 9.6'' (243.84 mm x 243.84 mm) Some of the following connectors are optional and may therefore not be included on your system board. 1 = PS/2 mouse port... - Page 12 Mechanics 1 2 3 4 DIMM 3 DIMM 2 DIMM 1 1 = Power supply ATX 10 = Cover monitoring 2 = Floppy disk drive 11 = USB port C / D 1 3 = IDE drives 3 and 4 (secondary) 12 = Wake On LAN 4 = Power supply monitoring 13 = Jumper USB...
-
Page 13: Connectors
Connectors Connectors Some of the following connectors are optional! Power supply monitoring Signal Monitor on PS FAN off request (low asserted) PS FAN full on (low asserted) PS FAN pulse SMB CLK SMB DATA VCC EEPROM English - 5 A26361-D1322-Z180-1-7619... -
Page 14: Front Panel Connector
Connectors Front panel connector Message LED Sleep LED Power On/Off Power On LED 1) 3) HD-LED Reset Sleep SCSI LED Input Speaker 1) Cable is not included in the delivery scope. 2) The same interface 3) 2pin or 3pin connector possible Signal Signal Sleep LED (Cathode) -
Page 15: Intrusion Connector For Case Open Detect For Optional Push-Button (Opener)
Connectors Intrusion connector for case open detect for optional push-button (opener) Signal Case open (low asserted) Intrusion switch present (low asserted) USB port C / D 1 - Dual channel (internal or external via special wire) Signal Signal VCC Dual (fused max. 500mA and Shield GND power supervision with over current detection) -
Page 16: Wake On Lan (Wol) Connector
Connectors Wake On LAN (WOL) connector Signal VCC Auxiliary Wake pulse (high asserted) CD-ROM audio connector (internal) Signal Left CD audio input CD GND CD GND Right CD audio input Audio front panel (internal) Signal Signal Analog GND Micro Input 12 V Analog GND Analog GND... -
Page 17: Auxiliary (Mpeg, Tv) Audio Connector (Internal)
Connectors Auxiliary (MPEG, TV) audio connector (internal) Signal Left AUX audio input Analog GND Analog GND Right AUX audio input Fan 1 connector (processor fan - controlled and supervised, only for 3 pin fans) Signal Controlled fan voltage (0 V / 6...12 V) Fan sense English - 9 A26361-D1322-Z180-1-7619... -
Page 18: Usb Power
Connectors USB power USB power jumper Signal VCC_DUAL USB power connection Jumper 2-3 Default setting: The USB interface is only powered in state S0 and S1. Wake up from ACPI S1 state is possible. Jumper 1-2 If the power supply supports auxiliary voltage the USB interface is permanently powered except when the main supply is plugged off. -
Page 19: Power
Documentation Power Power requirement for onboard components (worst case) Source Voltage Maximum variation Maximum current Comment Main power supply -12 V ±5 % 0.04 A Main power supply +12 V ±10 % 12 A Main power supply +5.0 V ±5 % 5.2 A Main power supply +3.3 V... -
Page 20: Installing Drivers
Installing drivers Installing drivers Ê Insert the "Drivers & Utilities" CD. Ê If the CD doesn't start automatically call the START.EXE file in the main directory of the CD. Ê If the system board list is displayed select the system board or select under Driver the operating system used and the audio and video drivers.
