Product Owner' s Manual
Manual del propietario del producto
Manuel du propriétaire du produit
M-150S Methanol
12V (DC)

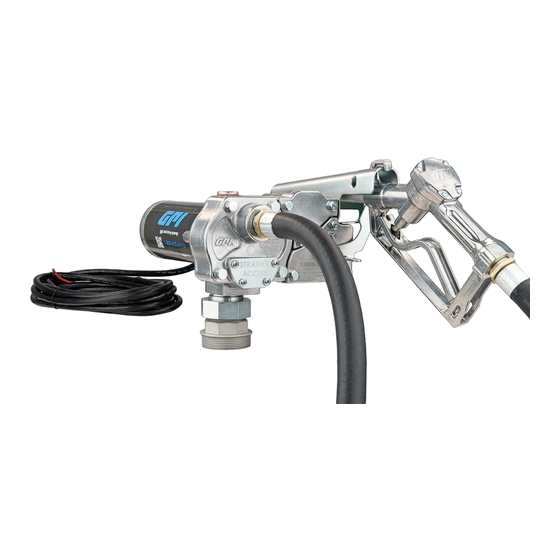

Methanol Fuel Transfer Pump
Bomba de Transferencia de Combustible de Metanol
Pompe de Transfert de Carburant au Méthanol
Models: M-150S Methanol

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-150S Methanol and is the answer not in the manual?

Questions and answers

Related Manuals for GPI M-150S Methanol

Summary of Contents for GPI M-150S Methanol

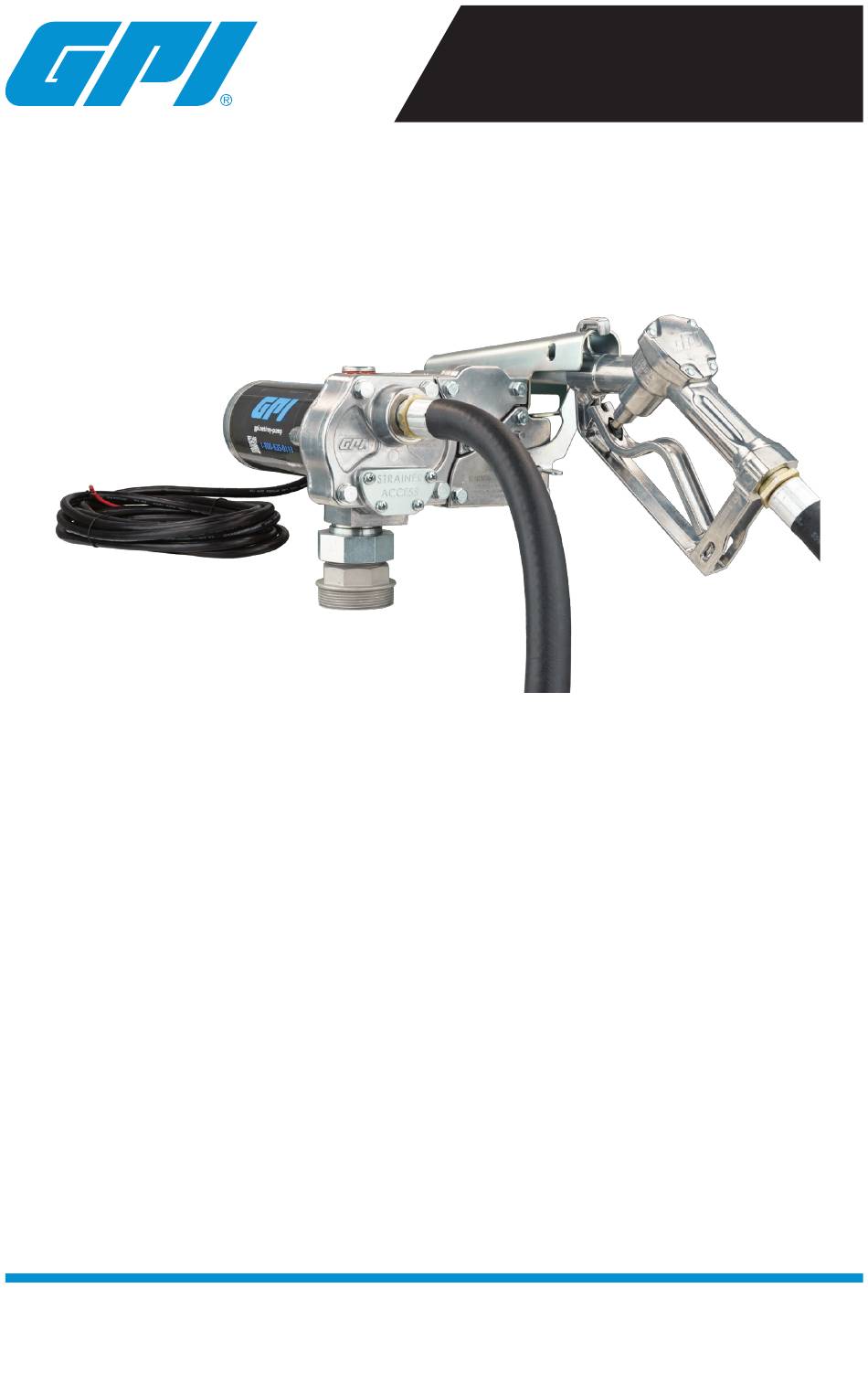

  • Page 1 Product Owner’ s Manual Manual del propietario del producto Manuel du propriétaire du produit M-150S Methanol 12V (DC) Methanol Fuel Transfer Pump Bomba de Transferencia de Combustible de Metanol Pompe de Transfert de Carburant au Méthanol Models: M-150S Methanol...
  • Page 2 à la clientèle. Nous serons heureux de vous aider. Call / Llamar / Appel: 800-835-0113 or 316-686-7361 Email: gpisales@gplains.com Website: gpi.net SAVE / GUARDAR / CONSERVEZ Model / Modelo / Modèle #: ������������������� Serial / Serie / Série #: ������������������������ Date / Fecha / Date: ��������������������������...

  • Page 3: Before You Begin

    Do not use this pump for dispensing any fluids other than those for which it box.eps model M-150S Methanol. plug.eps was designed. To do so may damage the pumps components and will void • Model M-150S Methanol should be connected to a 12-volt DC power Heavy_Hazard.eps tools.eps the warranty. source. •...

  • Page 4: General Safety Instructions

    VEA EL MANUAL DEL SEE OWNER’S MANUAL FOR DETAILS PROPIETARIO PARA DETALLES VOIR LE MANUEL DU PROPRIÉTAIRE...
  • Page 5 GENERAL SAFETY INSTRUCTIONS ( CONTINUED ) SAFETY WARNINGS To prevent physical injury or property damage, observe precautions against fire or explosion when dispensing fuel. Do not operate the system in the presence of any source of ignition including running or hot engines, lighted tobacco products, gas or electric heaters, or any type of electronic device.

  • Page 6: Specifications

    SPECIFICATIONS M - 150S - METHANOL Lightweight, corrosion-resistant, nickle plated, cast aluminum body, Housing Material convenient union ring for easy installation. Up to 15 GPM Pump Rate (57 LPM) Duty Cycle 30 minute ON, 30 minute OFF Manual Nozzle: Up to 5.5 ft. (1.7 m) Suction Lift Automatic Nozzle: Up to 4.8 ft.
  • Page 7 SPECIFICATIONS ( CONTINUED ) 9.13 (23.20) 6.74 (17.12) 4.95 (12.57) M-150S-Methanol 10.45 (26.54) Figure 1 in (cm)

  • Page 8: Installation Instructions

    Connection to a battery will depend upon the application. If Manual Nozzle: 6.7 feet (2.1 m) with Methanol the pump is to be installed in a Class I, Division I location please contact GPI for the Automatic Nozzle: 5.8 feet (1.8 m) with Methanol appropriate product.
  • Page 9 INSTALLATION INSTRUCTIONS ( CONTINUED ) Wrap the threaded end of suction pipe with three or four turns of thread tape (see Figure 4). Thread the suction pipe into the bottom of the adapter and hand tighten until snug. Install Pump on Tank (for all models except M-150S-EM &...
  • Page 10 INSTALLATION INSTRUCTIONS ( CONTINUED ) Install Hose and Nozzle NOTE: Hose and nozzle not supplied. Owner must supply accessories suitable for methanol. Using pliers, remove the plastic plug from outlet port on front of pump. Wrap one end of the dispensing hose with three to four turns of thread tape and thread into outlet port (see Figure 7).

  • Page 11: Connect To A Power Source

    Connection to a battery will depend upon the application. If the pump is to be installed in a Class I, Division I location please contact GPI for the IMPORTANT: The pump is designed for use with a 12 Volt DC power source.

  • Page 12: Operation

    OPERATION IMPORTANT: Always follow safety precautions when operating this equip- ment. Review the safety instructions. To prevent physical injury or property damage, observe precautions against fire or explosion when dispensing fuel. Do not operate the system in the presence of any source of ignition including running or hot engines, lighted tobacco products, gas or electric heaters, or any type of electronic device.

  • Page 13: Maintenance

    MAINTENANCE NOTE: This pump is designed for minimum maintenance. The motor bearings are self-lubricating. Inspect the pump and components regularly for fuel leaks and make sure the hose and power cord are in good condition. If damaged, replace before use. Keep the pump exterior clean to help identify leaks. IMPORTANT: Do not use this pump for water, chemicals or herbicides.

  • Page 14: Maintenance, Troubleshooting, And Repair

    MAINTENANCE, TROUBLESHOOTING, AND REPAIR ( CONTINUED ) Scan the QR code below for more maintenance, troubleshooting, and repair resources. Escanee el código QR a continuación para obtener más recursos de mantenimiento, solución de problemas y reparación. Scannez le code QR ci-dessous pour accéder à des ressources supplémentaires sur la maintenance, le dépannage et la réparation.
  • Page 15 NOTES/ NOTAS/ REMARQUES...

  • Page 16: Limited Warranty Policy

    90-DAY WARRANTY applies Product components considered wear items, to the following products: i.e. vanes, etc., are NOT included within the GPI® Fluid Transfer Hand Pumps: scope of this warranty. RP-5, BP-12, LP-50 90-DAY WARRANTY applies to Spare Parts, Kits and Accessories Charges for shipping and insuring packages to Great Plains Industries, Inc.
