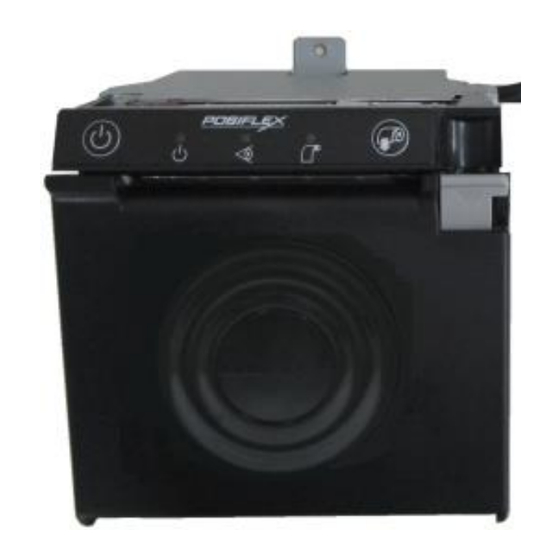

PP-7900JK
POS Printer
User Manual
Package Contents
PP-7900JK Thermal Printer..........................................................................(1)
Thermal Paper Roll....................................................................................(1)
5-Pin Connector to USB Type A Cable............................................................(1)
#6/32 Screw.............................................................................................(1)
Power Cable................................................................................................(1)
Power Cord..................................................................................................(1)
Power Adapter..............................................................................................(1)
FCC NOTES
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In a residential environment this
equipment may cause radio interference.
AVERTISSEMENT CE CLASSE A
Cet équipement est conforme à la classe A de CISPR 32. Dans un environnement résidentiel, cet
équipement peut provoquer des interférences radio.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than the
authorized technicians. The user should consult his/her dealer for the problem happening.
Warranty voids if the user does not follow the instructions in application of this merchandise. The
manufacturer is by no means responsible for any damage or hazard caused by improper application.
LIMITES DE GARANTIE
La garantie prend fin automatiquement lorsque la machine est ouverte par une personne autre que
les techniciens autorisés. L'utilisateur doit consulter son revendeur pour le problème qui se produit.
La garantie s'annule si l'utilisateur ne suit pas les instructions d'application de cette marchandise.
Le fabricant n'est en aucun cas responsable de tout dommage ou danger causé par une mauvaise
application.
PP-7900JK Ver. A0
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PP-7900JK and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX PP-7900JK

  • Page 1 PP-7900JK POS Printer User Manual Package Contents  PP-7900JK Thermal Printer…………………………………………………….………….(1)  Thermal Paper Roll………………………………………………………………………...(1)  5-Pin Connector to USB Type A Cable……………………………………………………(1)  #6/32 Screw…………..………………………………………………………………….…(1)  Power Cable…………………………………………………………………....…(1)  Power Cord………………………………………………………………....……(1)  Power Adapter…………………………………………………………………....(1) FCC NOTES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  • Page 2 WARNING Power cord shall be connected to a socket-outlet with earthing connection. ATTENTION Le cordon d'alimentation doit être connecté à une prise de courant avec mise à la terre. Views of PP-7900JK Overview Paper-out LED Indicator Screw Hole...
  • Page 3 Wedge Groove Paper Near End Sensor Part Names Description Power LED Indicator This indicator turns on when the printer is on. Error LED Indicator This indicator works when the printer has something wrong. For more details, refer to the Status LED Indicators section given below. Paper-out LED This indicator turns on when the paper-out issue Indicator...
  • Page 4 Connecting Power Adapter and I/O Cables After installing the printer and the power adapter, connect the 3-pin 24V power cable to the 24V/60W power adapter, and then connect the USB cable to the main board system. 3-Pin Female Power Connector USB Type A Connector 3-Pin Female...
  • Page 5 Installing PP7900JK to JK Kiosk Unlock and open the touch monitor. For JK-24xx/27xx Series: Open the touch monitor like the door refer to the below picture. For JK-32xx Series: Hold two sides of the touch monitor and then gently pull it out towards you slowly.
  • Page 6 Crank Rod Stopper for Touch Monitor Put the PP-7900JK on the left side of the kiosk, and make sure the two small pieces of bracket are hook into the two slots of the kiosk. Please refer to the below pictures.
  • Page 7 Fix the PP-7900JK to the kiosk with one #6/32 screw. For JK-24xx/27xx: For JK-32xx: Install the 24V/60W power adapter in the power adapter bracket with one screw. For JK-24xx/27xx: For JK-32xx: Power adapter for printer Power adapter for printer module...
  • Page 8 Connect the USB cable refer to the cable routing sticker on the PC box, and connect the power cable to the 24V power adapter. For JK-24xx/27xx Series: For JK-32xx Series:...
  • Page 9: Loading A Paper Roll

    Loading a Paper Roll Before loading a paper roll, make sure you use a specified paper type. Follow the steps below to load a paper roll. Press down the cover open lever to release the paper cover. The paper cover ejects. Then, open the paper cover manually.
  • Page 10: Setting Up The Printer

    If your PP-7900 is planned to be installed into the kiosk series model (ex: TK series, HK series, TK series, JK series…ect.). Please follow the below instruction to set up the switch. It is recommended that the installation be operated by technician. For further technical support, please contact Posiflex’ service team. DIP Switch Setting up for Kiosk There are six software switches in PP-7900.
  • Page 11 COM port connection number to your POS terminal connected via a USB port and enables bidirectional communication between your POS terminal and the printer. To download the USB Virtual COM Port Driver, go to the Posiflex’ global website: https://download.posiflex.com/en-...
  • Page 12: Status Led Indicators

    6. The printer will emit one long beep sound and then print a page displaying LAN default settings. 7. The printer will restart by itself. 8. Ensure that LAN settings is correctly set to factory default as follows: LAN Interface Information for Factory Default IP Address 192.168.192.168 NETMASK...
  • Page 13: Driver Download

    Power off the printer; after 10 seconds, power it back on. If the error LED indicator turns on again even after turning the power back on, malfunction may occurs. Contact your dealer or Posiflex’ technical service team. Driver Download Please download the relevant driver that you need from the Posiflex website (https://download.posiflex.com/en-global/Download/index/driver/POS- Printer/AURA_PP-7900). Specifications...
  • Page 14 Windows Driver (APD), OPOS, JavaPOS (Win), Printer Driver CUPS Driver (Linux) Posiflex Utility (Android), PP-7900 Utility Software (Windows Desktop), Development Tool (Android SDK), Monitoring Tool (RMS) Blue LED – On = Power LED Indicators Red LED - Error and/or Paper Out...
  • Page 15 Paper Thickness 60 ~ 80 um Paper Guide Auto Cutter Connectivity USB Interface Built-in USB type-B cable DC Jack 24V DC (3-pin) power cable Operating System OS support Android / Windows / Linux ※ The product information and specifications are subject to change without prior notice.
