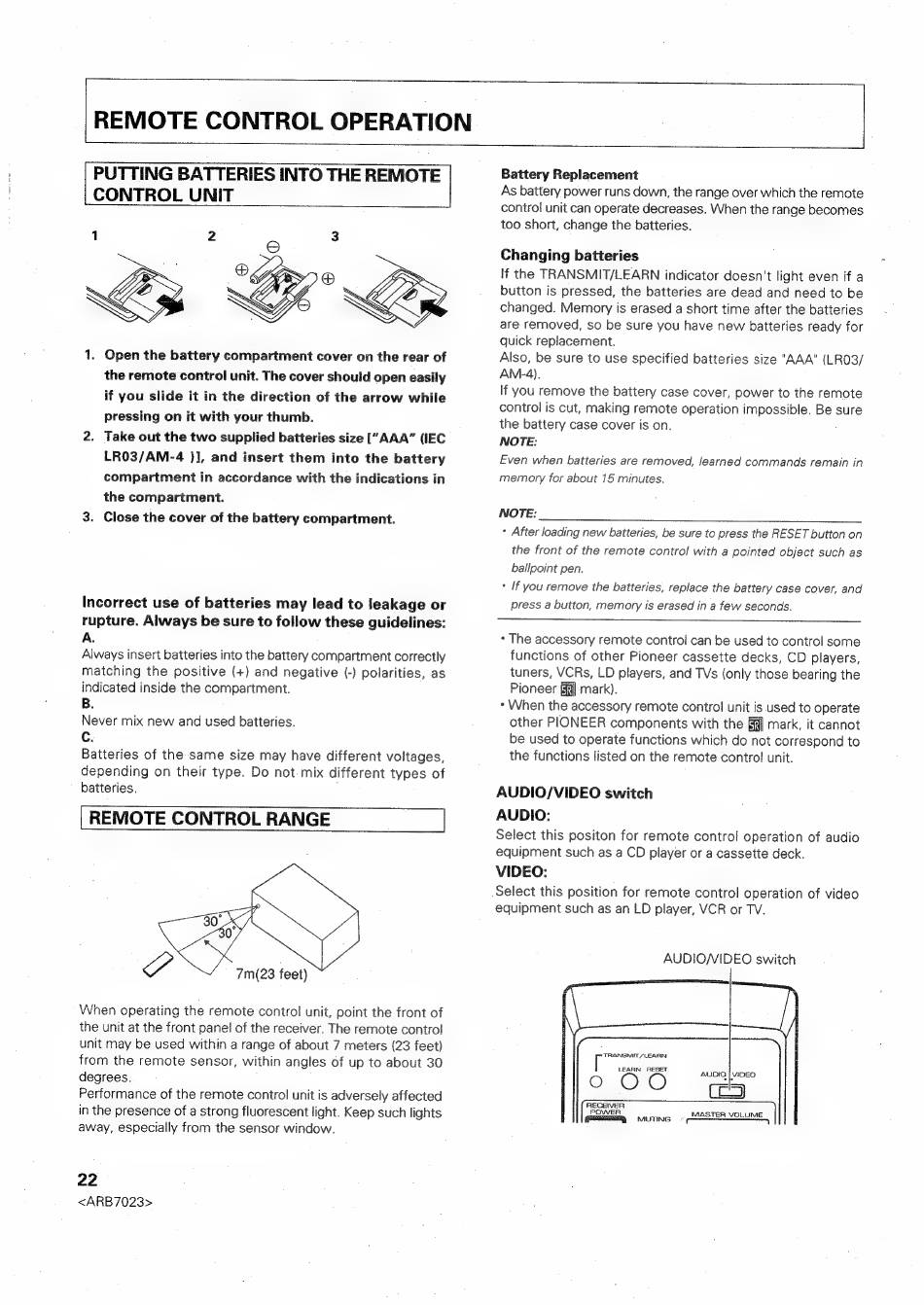

REMOTE CONTROL OPERATION
1. Open the battery compartment cover on the rear of
the remote control unit. The cover should open easily
if you slide it in the direction of the arrow while
pressing on it with your thumb.
2. Take out the two supplied batteries size ["AAA" (IEC
LRO3/AM-4 )], and insert them into the battery
compartment In accordance with the indications in
the compartment.
3. Close the cover of the battery compartment.
Incorrect use of batteries may lead to leakage or
rupture. Always be sure to follow these guidelines:
A.
Always insert batteries into the battery compartment correctly
matching the positive (+) and negative (-) polarities, as
indicated inside the compartment.
B.
Never mix new and used batteries.
Cc.
Batteries of the same size may have different voltages,
depending on their type. Do not.mix different types of
batteries.
| REMOTE CONTROL RANGE |
7m(23 feet)
When operating the remote control unit, point the front of
the unit at the front panel of the receiver. The remote contro!
unit may be used within a range of about 7 meters (23 feet)
from the remote sensor, within angles of up to about 30
degrees.
Performance of the remote control unit is adversely affected
in the presence of a strong fluorescent light. Keep such lights
away, especially from the sensor window.
22
<ARB7023>
Battery Replacement
As battery power runs down, the range over which the remote
control unit can operate decreases. When the range becomes
too short, change the batteries.
Changing batteries
If the TRANSMIT/LEARN indicator doesn't light even if a
button is pressed, the batteries are dead and need to be
changed. Memory is erased a short time after the batteries
are removed, so be sure you have new batteries ready for
quick replacement.
Also, be sure to use specified batteries size "AAA" (LRO3/
AN-4).
If you remove the battery case cover, power to the remote
control is cut, making remote operation impossible. Be sure
the battery case cover is on. ;
NOTE:
Even when batteries are removed, learned commands remain in
memory for about 15 minutes.
NOTE:
« After loading new batteries, be sure to press the RESET button on
the front of the remote control with a pointed object such as
ballpoint pen.
* If you remove the batteries, replace the battery case cover, and
press a button, memory is erased in a few seconds.
+ The accessory remote control can be used to control some
functions of other Pioneer cassette decks, CD players,
tuners, VCRs, LD players, and TVs (only those bearing the
Pioneer fj] mark).
* When the accessory remote control unit is used to operate
other PIONEER components with the fi] mark, it cannot
be used to operate functions which do not correspond to
the functions listed on the remote contro! unit.
AUDIO/VIDEO switch
AUDIO:
Select this positon for remote control operation of audio
equipment such as a CD player or a cassette deck.
VIDEO:
Select this position for remote control operation of video
equipment such as an LD player, VCR or TV.
AUDIO/VIDEO switch
[ TRANSMIT /LEARN
O oO oO AUDIO [VIDEO
RECEIVER
POWER. MASTER VOLUME
MuTInG = -SaSTER VOU
