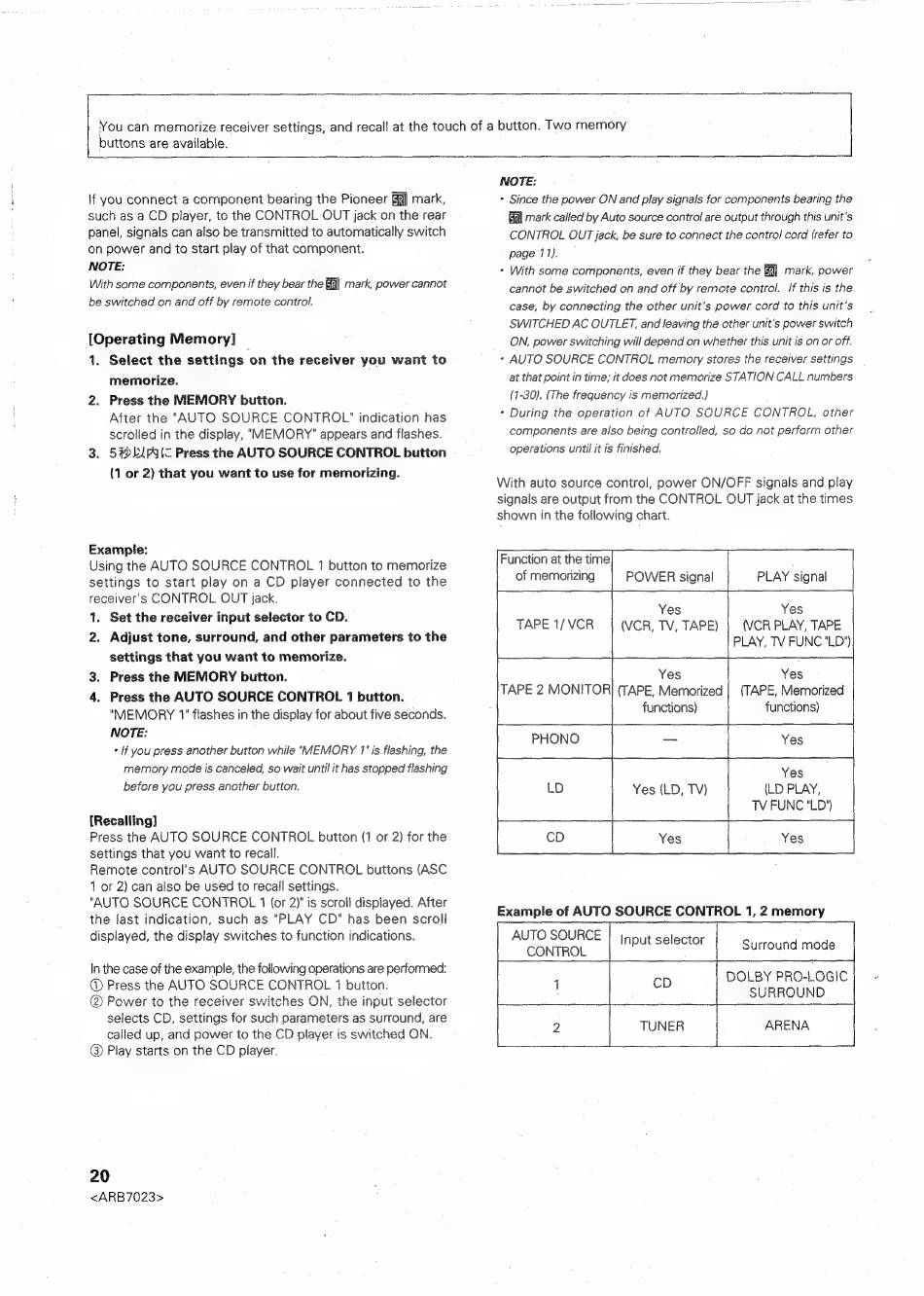

Using The Auto Source Control - Pioneer VSX-504S Operating Instructions Manual

You can memorize receiver settings, and recall at the touch of a button. Two memory
buttons are available.
if you connect a component bearing the Pioneer ff] mark,
such as a CD player, to the CONTROL OUT jack on the rear
panel, signals can also be transmitted to automatically switch
on power and to Start play of that component.
NOTE:
With some components, even if they bear the | mark, power cannot
be switched on and off by remote control.
[Operating Memory]
1. Select the settings on the receiver you want to
memorize.
2. Press the MEMORY button.
After the "AUTO SOURCE CONTROL" indication has
scrolled in the display, "MEMORY" appears and flashes.
3. 5SWLLAC Press the AUTO SOURCE CONTROL button
(1 or 2) that you want to use for memorizing.
Example:
Using the AUTO SOURCE CONTROL 1 button to memorize
settings to start play on a CD player connected to the
receiver's CONTROL OUT jack.
1. Set the receiver input selector to CD.
2. Adjust tone, surround, and other parameters to the
settings that you want to memorize.
3. Press the MEMORY button.
4. Press the AUTO SOURCE CONTROL 1 button.
"MEMORY 1" flashes in the display for about five seconds.
NOTE:
* If you press another button while "MEMORY 1" is flashing, the
memory mode is canceled, so wait until it has stopped flashing
before you press another button.
{Recalling]
Press the AUTO SOURCE CONTROL button (1 or 2) for the
settings that you want to recall.
Remote control's AUTO SOURCE CONTROL buttons (ASC
1 or 2) can also be used to recall settings.
"AUTO SOURCE CONTROL 1 (or 2)" is scroll displayed. After
the last indication, such as "PLAY CD" has been scroll
displayed, the display switches to function indications.
In the case of the example, the following operations are performed:
@ Press the AUTO SOURCE CONTROL 1 button.
@ Power to the receiver switches ON, the input selector
selects CD, settings for such parameters as surround, are
called up, and power to the CD player is switched ON.
@ Play starts on the CD player.
20
<ARB7023>
NOTE:
+ Since the power ON and play signals for components bearing the
§@] mark called by Auto source control are output through this unit's
CONTROL OUT jack, be sure to connect the control cord (refer to
page 11).
With some components, even if they bear the | mark, power
cannot be switched on and off by remote control. If this is the
case, by connecting the other unit's power cord to this unit's
SWITCHED AC OUTLET, and leaving the other unit's power switch
ON, power switching will depend on whether this unit is on or off.
+ AUTO SOURCE CONTROL memory stores the receiver settings
at that point in time; it does not memorize STATION CALL numbers
(1-30). (The frequency is memorized.)
* During the operation of AUTO SOURCE CONTROL, other
components are also being controlled, so do not perform other
operations until it is finished.
.
With auto source control, power ON/OFF signals and play
signals are output from the CONTROL OUT jack at the times
shown in the following chart.
Function at the time
of memorizing
POWER signal PLAY signal
Yes
(VCR PLAY, TAPE
PLAY, TV FUNC"LD")
Yes
(VCR, TV, TAPE)
TAPE 1/ VCR
Yes Yes
TAPE 2 MONITOR} (TAPE, Memorized | (TAPE, Memorized
functions) functions)
tere ieee
Yes
LD Yes (LD, TV) (LD PLAY,
=o TV FUNC 'LD")
CD a, Ye Yes
i= s
Example of AUTO SOURCE CONTROL 1, 2 memory
AUTO SOURCE -
CONTROL input selector Surround made
CD DOLBY PRO-LOGIC
SURROUND
2 TUNER ARENA |
