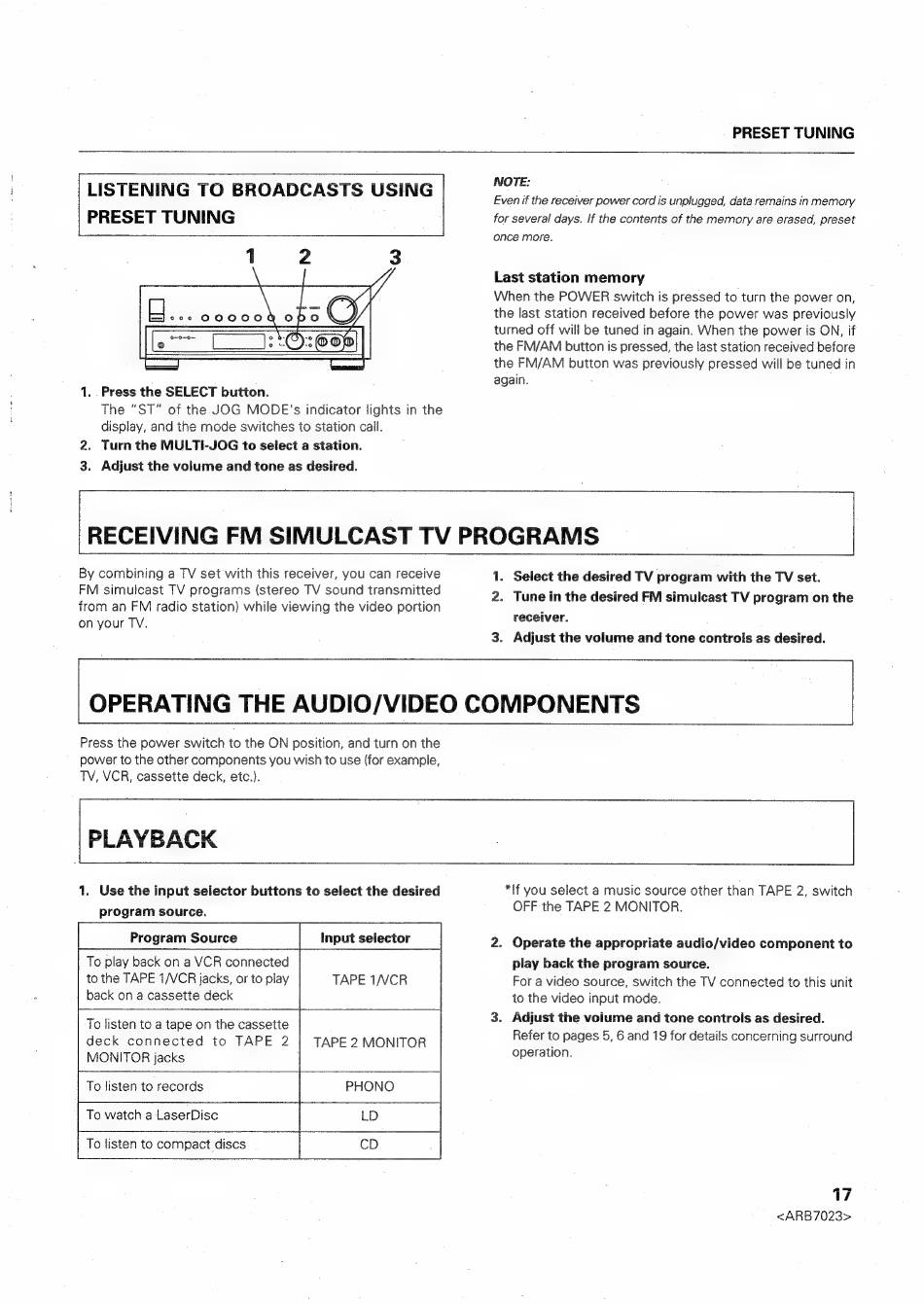

PRESET TUNING
LISTENING TO BROADCASTS USING
PRESET TUNING
«
o }-
ob
1. .Press the SELECT button.
The "ST" of the JOG MODE's indicator lights in the
display, and the mode switches to station call.
2. Turn the MULTI-JOG to select a station.
3. Adjust the volume and tone as desired.
NOTE:
Even if the receiver power cord is unplugged, data remains in memory
for several days. If the contents of the memory are erased, preset
once more.
Last station memory
When the POWER switch is pressed to turn the power on,
the last station received before the power was previously
turned off will be tuned in again. When the power is ON, if
the FM/AM button is pressed, the last station received before
the FM/AM button was previously pressed will be tuned in
again.
RECEIVING FM SIMULCAST TV PROGRAMS |
By combining a TV set with this receiver, you can receive
FM simulcast TV programs (stereo TV sound transmitted
from an FM radio station) while viewing the video portion
on your TV.
1. Select the desired TV program with the TV set.
2. Tune in the desired FM simulcast TV program on the
receiver.
3. Adjust the volume and tone controls as desired.
OPERATING THE AUDIO/VIDEO COMPONENTS
Press the power switch to the ON position, and turn on the
power to the other components you wish to use (for example,
Tv, VCR, cassette deck, etc.).
PLAYBACK
1, Use the input selector buttons to select the desired
program source.
Program Source Input selector
To play back on a VCR connected
to the TAPE 1/VCR jacks, or to play
back on a cassette deck
TAPE 1/VCR
To listen to a tape on the cassette
deck connected to TAPE 2
MONITOR jacks
TAPE 2 MONITOR
PHONO
| To listen to records
To watch a LaserDisc LD
To listen to compact discs CD
*If you select a music source other than TAPE 2, switch
OFF the TAPE 2 MONITOR.
2. Operate the appropriate audio/video component to
play back the program source.
For a video source, switch the TV connected to this unit
to the video input mode.
3. Adjust the volume and tone controls as desired.
Refer to pages 5, 6 and 19 for details concerning surround
operation.
17
