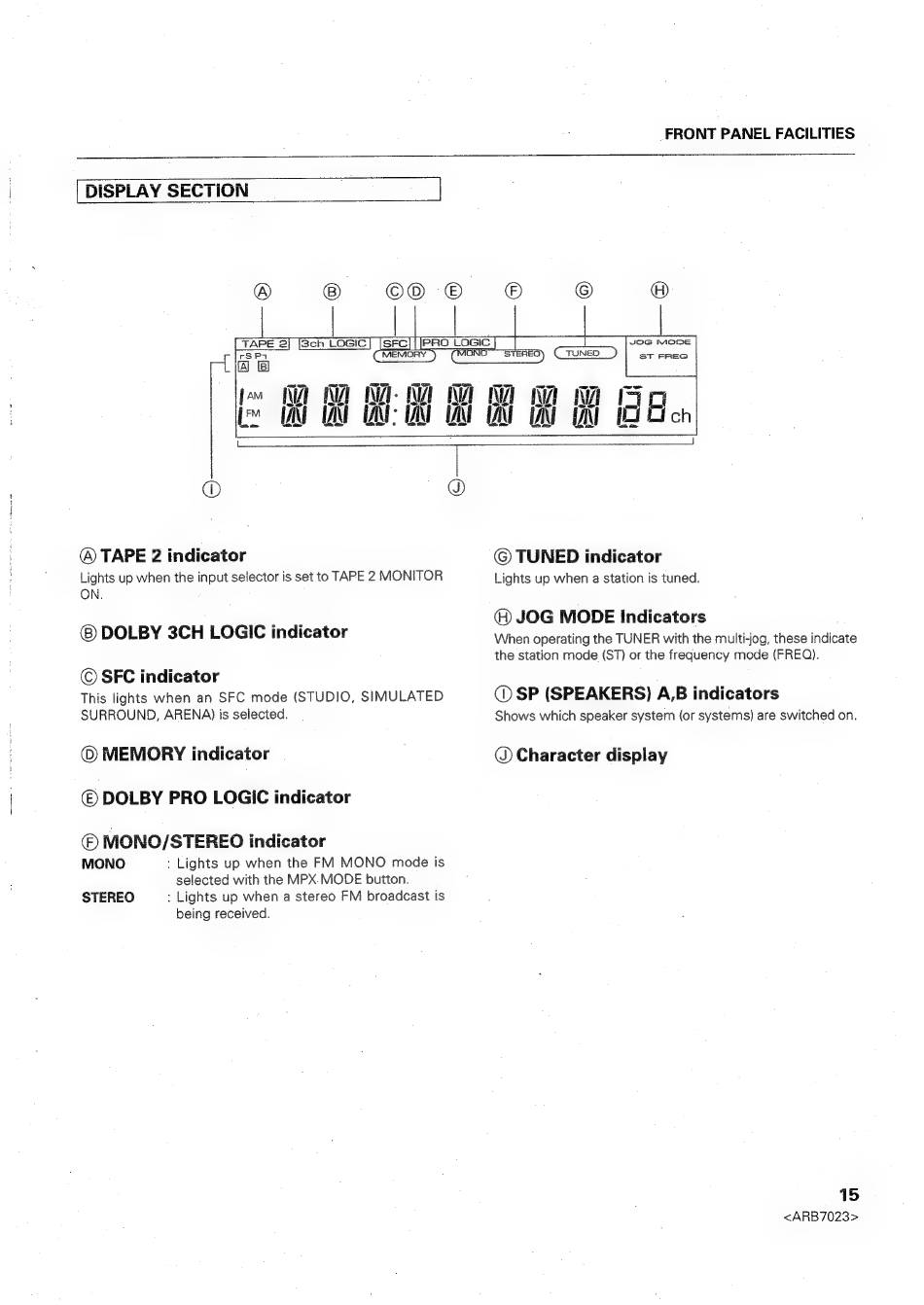

[ DISPLAY SECTION
|
FRONT PANEL FACILITIES
JOG
MODE
ST
FREG
O
@ TAPE 2 indicator
Lights up when the input selector is set to TAPE
2 MONITOR
ON.
DOLBY 3CH LOGIC indicator
© SFC indicator
This lights when an SFC mode (STUDIO, SIMULATED
SURROUND, ARENA) is selected.
© MEMORY indicator
© DOLBY PRO LOGIC indicator
(©) MONO/STEREO indicator
MONO
: Lights up when the FM MONO
mode is
selected with the MPX-MODE button.
: Lights up when a stereo FM broadcast is
being received.
STEREO
© TUNED indicator
Lights up when a station is tuned.
(® JOG MODE Indicators
When operating the TUNER with the multi-jog, these indicate
the station mode (ST) or the frequency mode (FREQ).
@ SP (SPEAKERS) A,B indicators
Shows which speaker system (or systems) are switched on.
@ Character display
15
