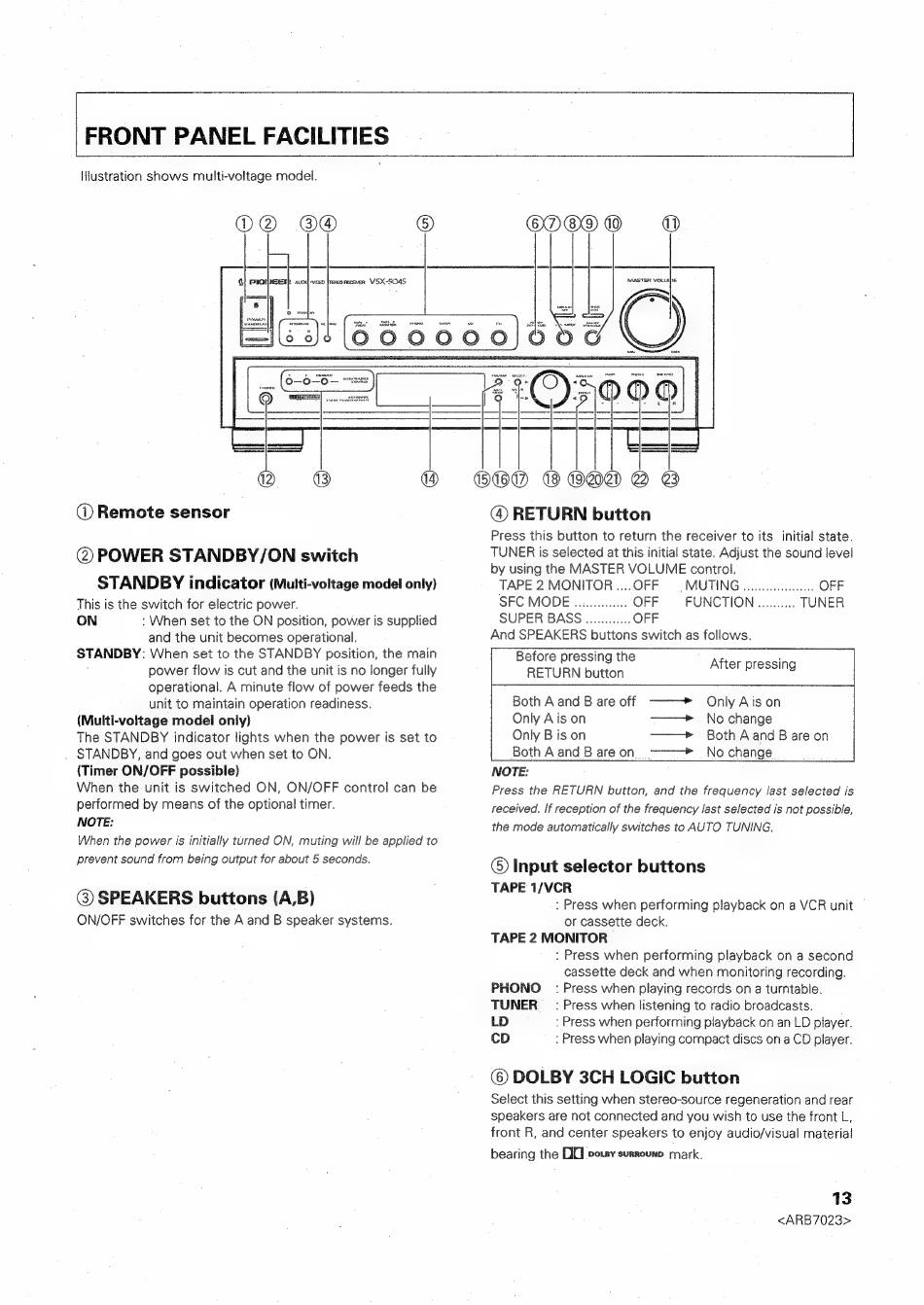

FRONT PANEL FACILITIES
lilustration shows multi-voltage model.
O® @O© © a)
Gf rors: avonl voco reco recener VSX-SO4S
@ Remote sensor
@ POWER STANDBY/ON switch
STANDBY indicator (Multi-voltage model only)
This is the switch for electric power.
ON : When set to the ON position, power is supplied
and the unit becomes operational.
STANDBY: When set to the STANDBY position, the main
power flow is cut and the unit is no longer fully
operational. A minute flow of power feeds the
unit to maintain operation readiness.
(Multi-voltage model only)
The STANDBY indicator lights when the power is set to
. STANDBY, and goes out when set to ON.
(Timer ON/OFF possible)
When the unit is switched ON, ON/OFF control can be
performed by means of the optional timer.
NOTE:
When the power is initially turned ON, muting will be applied to
prevent sound from being output for about 5 seconds.
@ SPEAKERS buttons (A,B)
ON/OFF switches for the A and B speaker systems.
OOD 8 MOA) @ @
@ RETURN button
Press this button to return the receiver to its initial state.
TUNER is selected at this initial state. Adjust the sound level
by using the MASTER VOLUME control.
TAPE 2 MONITOR....OFF = MUTING... ee OFF
SFC MODE ..:........... OFF FUNCTION.......... TUNER
SUPER BASS 0.0.0... OFF
And SPEAKERS buttons switch as follows.
Before pressing the
RETURN button
Both A and B are off
After pressing
Only Ais on
No change
Both A and B are on
No change
Only Ais on
Only B is on
Both A and B are on
NOTE:
Press the RETURN button, and the frequency last selected is
received. If reception of the frequency last selected is not possible,
the mode automatically switches to AUTO TUNING.
©) Input selector buttons
TAPE 1/VCR
: Press when performing playback on a VCR unit
or cassette deck.
TAPE 2 MONITOR
: Press when performing playback on a second
cassette deck and when monitoring recording.
PHONO: Press when playing records on a turntable.
TUNER _ : Press when listening to radio broadcasts.
LD : Press when performing playback on an LD player.
cD : Press when playing compact discs on a CD player.
© DOLBY 3CH LOGIC button
Select this setting when stereo-source regeneration and rear
speakers are not connected and you wish.to use the front L,
front R, and center speakers to enjoy audio/visual material
bearing the [10] vo.zy surrounp mark.
13
