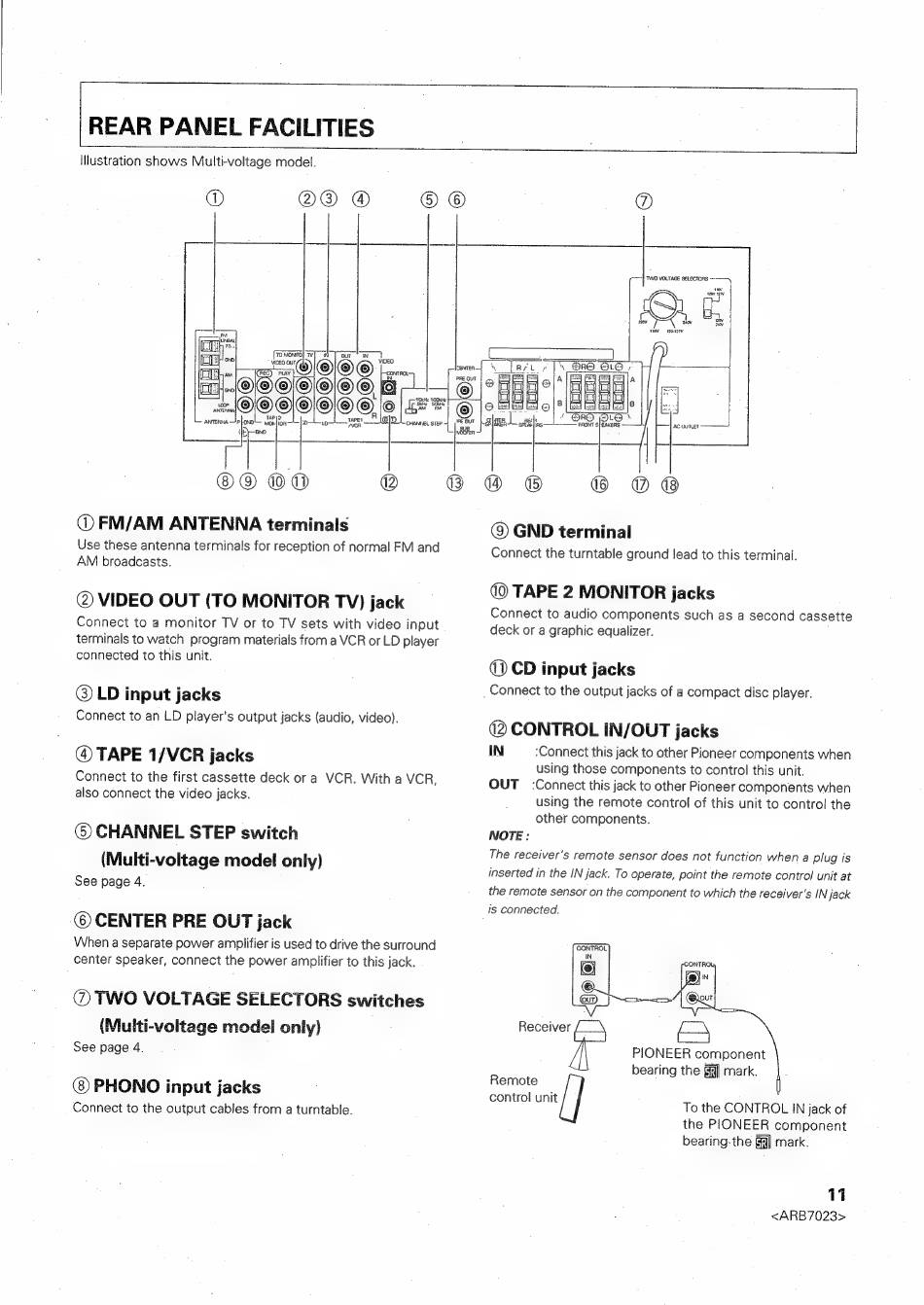

REAR PANEL FACILITIES
Illustration shows Multi-voltage model.
® @® ® ® ©
TO MONITO}
yor "©)
@)
®® O@ @
@ FM/AM ANTENNA terminals
Use these antenna terminals for reception of normal FM and
AM broadcasts.
@) VIDEO OUT (TO MONITOR TV) jack
Connect to a monitor TV or to TV sets with video input
terminals to watch program materials from a VCR or LD player
connected to this unit.
(3) LD input jacks
Connect to an LD player's output jacks (audio, video).
@ TAPE 1/VCR jacks
Connect to the first cassette deck or a VCR. With a VCR,
also connect the video jacks.
© CHANNEL STEP switch
(Multi-voltage model only)
See page 4.
@©@ CENTER PRE OUT jack
When a separate power amplifier is used to drive the surround
center speaker, connect the power amplifier to this jack.
@ TWO VOLTAGE SELECTORS switches
(Multi-voltage model only)
See page 4.
PHONO input jacks
Connect to the output cables from a turntable.
TWO VOLTAGE SELECTORS
voy 0427v
G ® ®
: }
ry | \_ ORO Or +
SS Sala
Ee © {5 | Ge ee) 8
"ORO DLO
FRONT 5} EAKERS
Ee
IP
6 OD ®
AC UUILET
(9) GND terminal
Connect the turntable ground lead to this terminal.
TAPE 2 MONITOR jacks
@ CD input jacks
(2 CONTROL IN/OUT jacks
NOTE:
CONTROL
OUT
Receiver by
PIONEER component
bearing the &@l| mark.
Remote
control unit [}
To the CONTROL IN jack of
the PIONEER component
bearing: the §@] mark.
11
