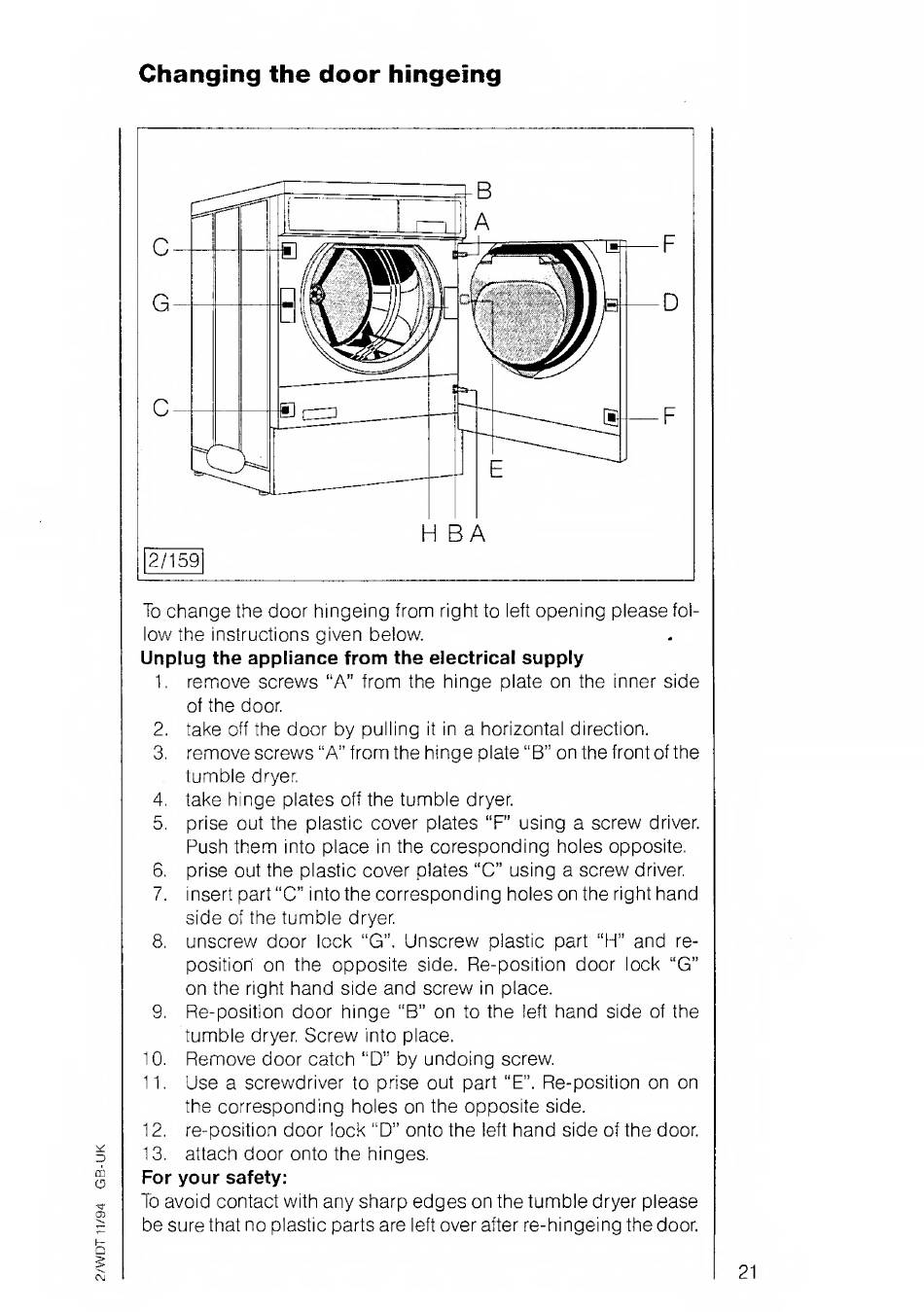

Changirtg the door hingeing
To change the door hingeing from right to left opening please fol-
low the instructions given beiow.
Unplug the appliance from the electrical supply
1. remove screws "A" from the hinge plate on the inner side
of the door.
2. take off the door by pulling it in a horizontal direction.
3. remove screws "A" from the hinge plate "B" on the front of the
tumble dryer.
4. take hinge plates off the tumble dryer.
5. prise out the plastic cover plates "F" using a screw driver.
Push them into place in the coresponding hoies opposite.
6. prise out the plastic cover plates "C" using a screw driver.
7. insert part "C" into the corresponding hoies on the right hand
side of the tumble dryer.
8. unscrew door lock "G". Unscrew plastic part "H" and re-
position on the opposite side. Re-position door lock "G"
on the right hand side and screw in place.
9. Re-position door hinge "B" on to the left hand side of the
tumble dryer. Screw into place.
10. Remove door catch "D" by undoing screw.
11. Use a screwdriver to prise out part "E". Re-position on on
the corresponding hoies on the opposite side.
12. re-position door lock "D" onto the left hand side of the door.
13. attach door onto the hinges.
For your safety:
To avoid contact with any sharp edges on the tumble dryer please
be sure that no plastic parts are left over after re-hingeing the door.
21
