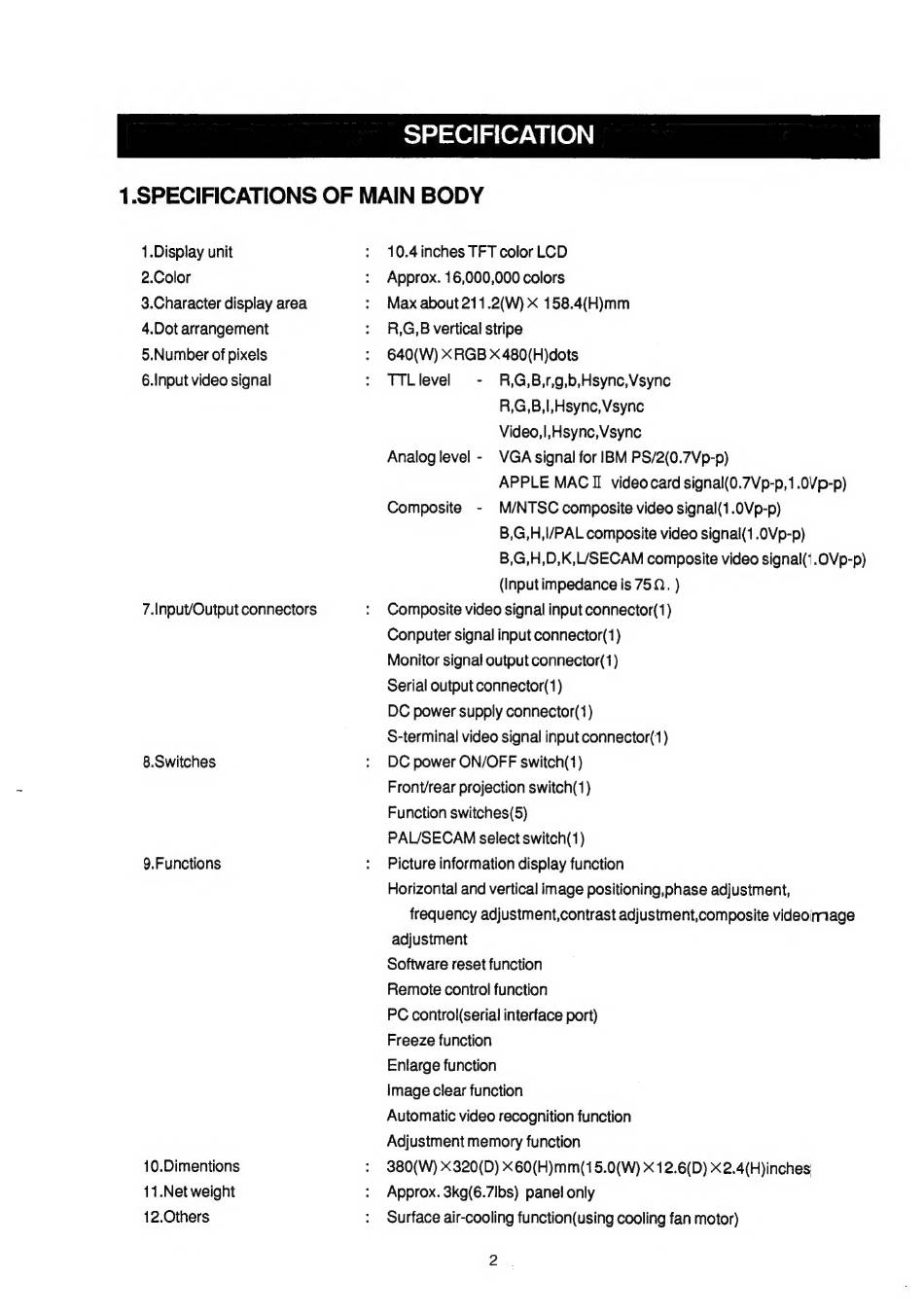

SPECIFICATION
1.SPECIFICATIONS OF MAIN BODY
1.Display unit : 10.4inches TFT color LCD
2.Color : Approx. 16,000,000 colors
3.Character display area : Max about 211.2(W) X 158.4(H)mm
4.Dot arrangement : R,G,B vertical stripe
5.Number of pixels : 640(W) XRGB X480(H)dots
6.Input video signal : TTLilevel - R,G,B,r,g,b,Hsync,Vsyne
R,G,B,|,Hsyne, Vsyno
Video,|,Hsync,Vsync
Analog level - VGA signal for IBM PS/2(0.7Vp-p)
APPLE MAC I videocard signal(0.7Vp-p,1.0Vp-p)
Composite - M/NTSC composite video signal(1.0Vp-p)
B,G,H,I/PAL composite video signal(1.0Vp-p)
B,G,H,D,K,L/SECAM composite video signal(1.O0Vp-p)
(Input impedance is 75Q., )
7.Input/Output connectors : Composite video signal input connector(1)
Conputer signal input connector(1)
Monitor signal output connector(1)
Serial output connector(1)
DC power supply connector(1)
S-terminal video signal input connector(1)
8.Switches : DC power ON/OFF switch(1)
Front/rear projection switch(1)
Function switches(5)
PAL/SECAM select switch(1)
9.Functions : Picture information display function
Horizontal and vertical image positioning, phase adjustment,
frequency adjustment,contrast adjustment,composite videoimage
adjustment
Software reset function
Remote control function
PC control(serial interface port)
Freeze function
Enlarge function
Image clear function
Automatic video recognition function
Adjustment memory function
10.Dimentions > 380(W) X320(D) X60(H)mm(15.0(W) x 12.6(D) X2.4(H)inches
11.Net weight : Approx. 3kg(6.7lbs) panel only
12.Others : Surface air-cooling function(using cooling fan motor)
2
