Owner's Guide
and
Installation Instructions

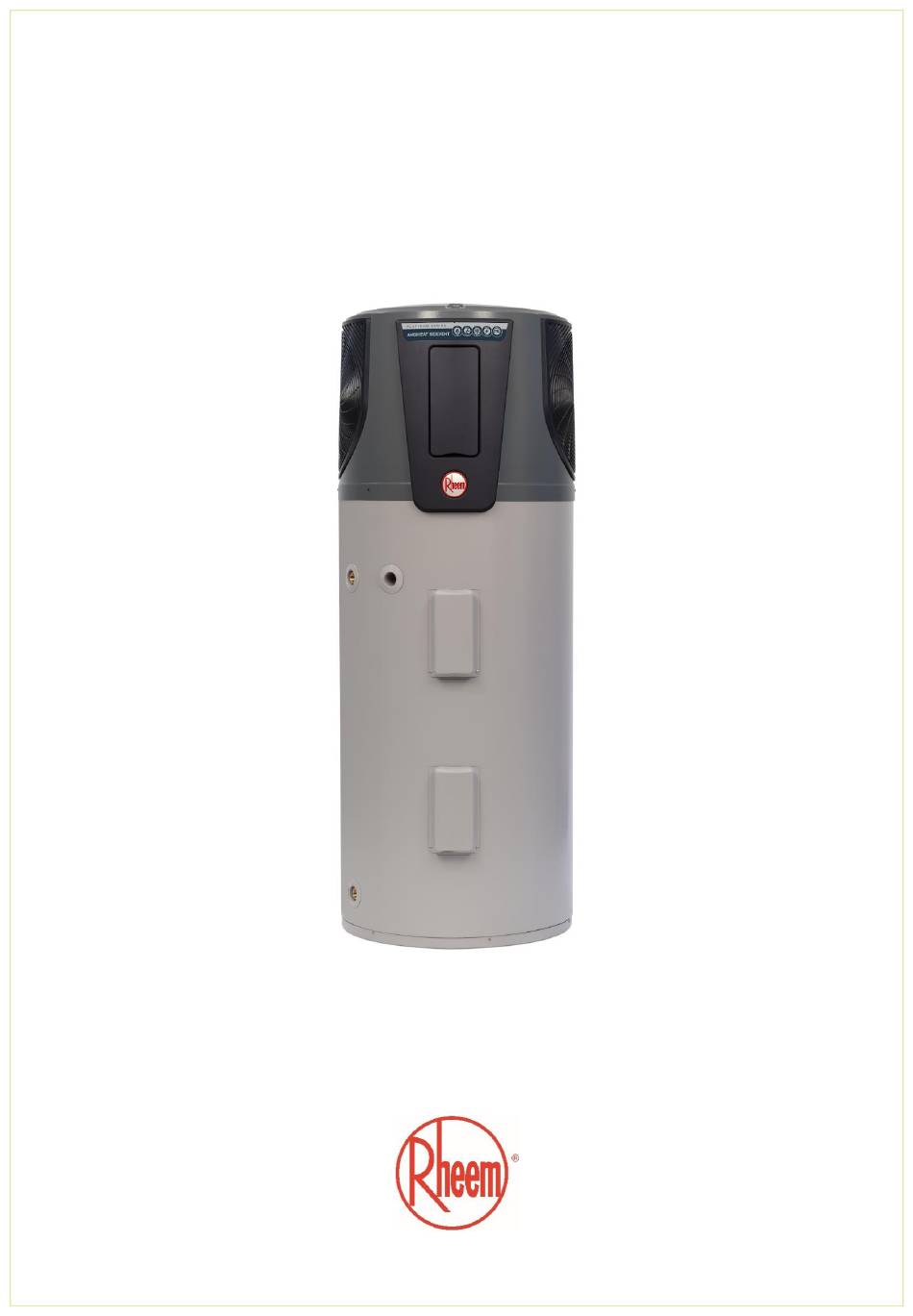

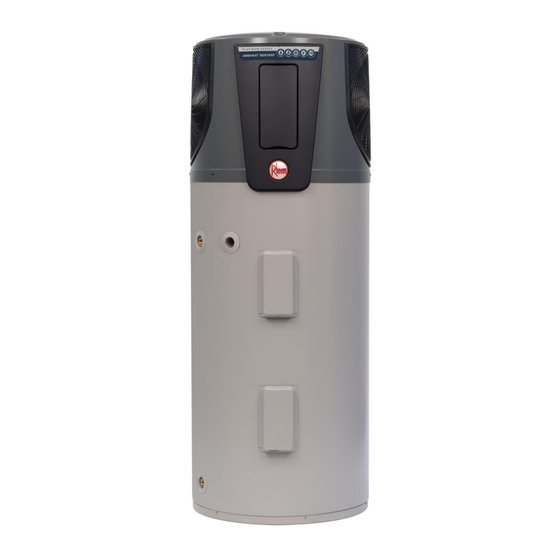

Air Sourced 571D270 Ambiheat Sidevent
Heat Pump Water Heater
This water heater must be installed and serviced by a qualified person.
Please leave this guide with the householder.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 571D270 and is the answer not in the manual?

Questions and answers

Related Manuals for Rheem 571D270

Summary of Contents for Rheem 571D270

  • Page 1 Owner’s Guide Installation Instructions Air Sourced 571D270 Ambiheat Sidevent Heat Pump Water Heater This water heater must be installed and serviced by a qualified person. Please leave this guide with the householder.
  • Page 2 An electronic copy of these Owner’s Guide and Installation Instructions can be downloaded from rheem.com.au. PATENTS This water heater may be protected by one or more patents or registered designs in the name of Rheem Australia Pty Ltd. TRADE MARKS ®...

  • Page 3: Table Of Contents

    Rheem warranty. We recommend you read pages 7 to 36, and the terms of the Rheem warranty on pages 4 to 6. The other pages are intended for the installer but may be of interest.

  • Page 4: Warranty

    The decision of whether to repair or replace a faulty component is at Rheem’s sole discretion. If you require a call out and we find that the fault is not covered by the Rheem warranty, you are responsible for our standard call out charge. If you wish to have the relevant component repaired or replaced by Rheem, that service will be at your cost.
  • Page 5 Ice formation in the waterways of a water heater system incorporating a freeze protection system where the electricity supply has been switched off or has failed. Rheem may reject a claim under this warranty in its sole discretion if a third party solar diverter is connected to the water heater.
  • Page 6 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. The Rheem warranty (set out above) is in addition to any rights and remedies that you may have under the Australian Consumer Law.

  • Page 7: Safety, Warnings, Installation Notes

    • If the electrical supply conduit to the water heater is damaged, it must be replaced by a qualified person in order to avoid a hazard. Phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection.
  • Page 8 SAFETY, WARNINGS, INSTALLATION NOTES • In areas where there is a risk of freezing conditions, power must be available to the water heater at all times and the electrical supply to the water heater should not be switched off, otherwise damage could result.
  • Page 9 If water does not flow freely from the drain line when the lever is lifted, then the water heater must be checked. Phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection. The temperature pressure relief valve should be replaced at intervals not exceeding five (5) years and the expansion control valve should be checked for performance or replaced at intervals not exceeding five (5) years.

  • Page 10: About Your Water Heater

    The model you have chosen is the 571D270 and is recommended for connection to an uninterrupted 24 hour continuous tariff power supply. Depending upon the size of the household and its hot water requirements and if the Electricity Retailer permits, an extended off-peak (overnight and day) or Extended time-controlled power supply connection of a minimum 16 hours per day may also be suitable.
  • Page 11 ABOUT YOUR WATER HEATER HOW HOT SHOULD THE WATER BE? The heat pump is designed to operate until a water temperature of 60°C is reached. If heating is required and the ambient air temperature is maximum temperature from outside of the heat pump’s operating range, the water temperature is heat pump operation and boosted automatically to 60°C by the electric heating unit.
  • Page 12 Notes • The 571D270 model water heater is recommended for connection to an uninterrupted 24 hour continuous tariff power supply. Depending upon the size of the household and its hot water requirements and if the Electricity Retailer permits, an extended off-peak (overnight and day) or Extended time-controlled power supply connection of a minimum 16 hours per day may also be suitable.
  • Page 13 At the end of the service life of the heat pump water heater and prior to the water heater being disposed of, a person qualified to work with refrigerants must recover the refrigerant from within the sealed system. The refrigerant must not be vented to atmosphere. Phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection.

  • Page 14: Display Panel

    DISPLAY PANEL DISPLAY PANEL AND ICONS The water heater has a Display Panel to allow the user to view the current operational status of the water heater and to enable user input functionality. Multiple blue and red LEDs on the Display Panel illuminate to display icons which provide information on the water heater’s current operational status, water temperatures in the water heater, usable hot water quantity available, Timer function settings, the time and fault codes.
  • Page 15 DISPLAY PANEL Timer A Timer function enables two timed periods to be set in a 24 hour period. The Timer is used in conjunction “Timer” with the Standard Heating Mode to control the times of operation of the heat pump. Refer to page 21.
  • Page 16 DISPLAY PANEL DISPLAY PANEL – DISPLAY ICONS AND KEYPAD SELECTION KEY ICONS Illuminating the Display Panel Press the “On / Off” key to illuminate the Display Panel. • The Display icons of the current set functions and operational status of the water heater illuminate blue in the upper part of the Display Panel.
  • Page 17 DISPLAY PANEL Display and Keypad Selection Key Icons Explained Icon Keys Description Useable Water Quantity Icon: displays quantity of usable hot water in the water heater, illuminating blue. The display ranges from the illumination of five bars, which indicates the water heater is full of hot water, to no illumination of bars, which indicates the temperature of all of the water in the water heater is below 35°C.
  • Page 18 DISPLAY PANEL CLOCK The water heater has a clock function. The clock must be set in order to use the Timer setting functions of the water heater. The clock can be set whether the heat pump is “On” or “Off” at the Display Panel. The setting of the clock includes year, month, day, hour and minutes.
  • Page 19 DISPLAY PANEL STANDARD HEATING MODE Standard Heating Mode is the normal day to day operational mode of the heat pump. The heat pump will operate when heating of the water is required, and there is an electricity supply to the water heater, and the heat pump is turned “On”...
  • Page 20 DISPLAY PANEL USEABLE WATER QUANTITY DISPLAY The Display Panel features a Useable Water Quantity display icon. This icon indicates the quantity of usable hot water in the water heater. The display ranges from the illumination of five bars, which indicates the water heater is full of hot water, to no illumination of bars, which indicates the temperature of the water in the water heater is below 35°C.
  • Page 21 DISPLAY PANEL TIMER The water heater has a Timer function. Two timed periods, Timer 1 and Timer 2, can be set within a 24 hour period. The Timer operates over a 24 hour period, it does not allow for days or months to be programmed. The Timer is used in conjunction with the Standard Heating Mode to control the times of operation of the heat pump.
  • Page 22 DISPLAY PANEL Timer 1 Setting • To set the Timer 1 ON setting; Press and hold the “Clock” key until the Timer ’1’ icon commences to flash. This will take 2 seconds. ◼ The “Clock” key illuminates red. The Timer ’ON’ icon and either “- - : - -“ or the previously set ON time in the Time / Date Display Area illuminate.
  • Page 23 DISPLAY PANEL Timer 2 Setting The Timer 2 period can be set either immediately after setting the Timer 1 period or independently of setting the Timer 1 period. • To set the Timer 2 period immediately after setting the Timer 1 period; The Timer ’2’...
  • Page 24 DISPLAY PANEL VACATION MODE In Vacation Mode, to conserve energy, the heat pump and electric heating unit will not operate under standard heating conditions. The heat pump and electric heating unit will only operate under very cold conditions if the tank water temperature approaches freezing conditions.
  • Page 25 DISPLAY PANEL Setting the Vacation Mode • Method 1 – Setting the start date of the Vacation period, the heat pump must be “On” at the Display Panel. Press the “Vacation” key ◼ The “Vacation” key illuminates red and the “Vacation” display icon illuminates blue. The “Standard Heating”...
  • Page 26 DISPLAY PANEL • Method 2 – Setting the finish date of the Vacation period, the heat pump must be “Off” at the Display Panel. Press the “On/Off” key for 2 to 3 seconds to turn the heat pump “Off” at the Display Panel. ◼...
  • Page 27 If one of the above codes is displayed on the Display Panel or if an E01 code appears again after having been reset, make a note of the fault code and phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection.
  • Page 28 DISPLAY PANEL MANUAL ELECTRIC HEATING MODE The water heater has a Manual Electric Heating Mode which allows the electric heating unit to be turned on to heat the water. This would primarily be used in the event the heat pump develops a fault which prevents it from operating and heating the water.
  • Page 29 DISPLAY PANEL • To manually turn off the Manual Electric Heating Mode setting If it is required to turn off the Manual Electric Heating Mode prior to the heating unit completing its ‘one shot’ heating process: Press and hold the "Manual Electric Heating” key for 3 seconds. ◼...

  • Page 30: Maintenance Requirements

    Note: The major service and routine replacement of any components, such as the anode and relief valve(s), are not included in the Rheem warranty. A charge will be made for this work. Only genuine replacement parts should be used on this water heater.

  • Page 31: Water Supplies

    If an incorrect colour coded anode is used in the water heater, any resultant faults will not be covered by the Rheem warranty. In addition, the use of an incorrect colour coded anode may shorten the life of the water heater cylinder.
  • Page 32 In a corrosive water supply, the water can attack copper parts and cause them to fail. Where the saturation index is less than –1.0, the water is very corrosive and the Rheem warranty does not apply to a copper sheathed heating unit. A corrosion resistant heating unit must be used for the Rheem warranty to apply to the heating unit.
  • Page 33 The water heater is not suitable for certain water chemistries. Those chemistries are listed below. If the water heater is connected at any time to a water supply with the following water chemistry, the Rheem warranty will not cover any resultant faults:...

  • Page 34: Save A Service Call

    SAVE A SERVICE CALL Check the items below before making a service call. You will be charged for attending to any condition or fault that is not related to manufacture or failure of a part. NOT ENOUGH HOT WATER (OR NO HOT WATER) •...
  • Page 35 195 litres. Refer to on page 27 and on page 28. Take note of the fault code and phone Rheem Service or their nearest Accredited Service Agent to arrange for an inspection. TEMPERATURE PRESSURE RELIEF VALVE OR EXPANSION CONTROL VALVE RUNNING •...
  • Page 36 The impact on an electricity account will depend upon the tariff arrangement of the water heater replaced and where you live. Contact your energy provider for more information on tariff arrangements and cost comparisons. IF YOU HAVE CHECKED ALL THE FOREGOING AND STILL BELIEVE YOU NEED ASSISTANCE, PHONE RHEEM SERVICE OR THEIR NEAREST ACCREDITED SERVICE AGENT.

  • Page 37: Installation

    16 hours per day may also be suitable. A Rheem heat pump water heater consumes less energy than an electric water heater. The impact on an electricity account will depend on the tariff arrangement of the water heater replaced and the installation location.
  • Page 38 INSTALLATION In addition, tilting the water heater more than 30° from the vertical during handling will unsettle the refrigerant gas and compressor lubricating oil. If the water heater has been tilted, it will need one hour to settle before the power to the water heater can be switched on, otherwise damage to the compressor may result.
  • Page 39 If an incorrect colour coded anode is used in the water heater, any resultant faults will not be covered by the Rheem warranty. In addition, the use of an incorrect colour coded anode may shorten the life of the water heater cylinder.
  • Page 40 INSTALLATION HOT WATER DELIVERY Warning: This water heater can deliver hot water at temperatures up to 60°C, sufficiently hot to cause severe scalding. Water at this temperature may be plumbed to fixtures where water hotter than 50°C is allowed, such as the kitchen and laundry. The installing plumber may have a legal obligation to ensure the installation of this water heater meets the water temperature delivery requirements of the Plumbing Code of Australia so that heated water delivered to fixtures and appliances used primarily for personal hygiene is at a temperature which is unlikely to scald.
  • Page 41 INSTALLATION CIRCULATED HOT WATER FLOW AND RETURN SYSTEM A 571D270 model heat pump water heater should not be installed as part of a circulated hot water flow and return system in a building. If a circulated flow and return system is required, it is necessary to install a secondary water heater supplied from the heat pump water heater.
  • Page 42 INSTALLATION DIMENSIONS AND TECHNICAL DATA Dimensions Model 571D270 There is a minimum clearance of 25 mm from a wall behind the water heater...
  • Page 43 2400 Maximum power input @ 240 V watts 3600 Technical data is Electrical circuit Amps subject to change Heat Pump 571D270 Performance Specifications Ambient Air Relative Average Heat Pump Recovery Rate Average Coefficient of Temperature Humidity Heating Capacity (kW) @ 45°C rise (L / hr)
  • Page 44 INSTALLATION Recovery Rate @ 45°C rise L/hr – Is the number of litres of water that can be heated through a 45°C temperature rise in one hour, e.g., when the air temperature is 19°C, the heat pump can heat 77 litres of water from 15°C to 60°C in one hour.

  • Page 45: Connections - Plumbing

    CONNECTIONS – PLUMBING All plumbing work must be carried out by a qualified person and in accordance with the Standard AS/NZS 3500.4 and all local codes and regulatory authority requirements. CONNECTION SIZES • Hot water connection: Rp 3/4 • Cold water connection: Rp 3/4 •...
  • Page 46 CONNECTIONS – PLUMBING TEMPERATURE PRESSURE RELIEF VALVE The temperature pressure relief valve is shipped in a plastic bag attached to the side of water heater. The temperature pressure relief valve must be fitted before the water heater is operated. Before fitting the relief valve, make sure the probe has not been bent.
  • Page 47 CONNECTIONS – PLUMBING The outlet of a drain line must be in such a position that flow out of the pipe can be easily seen, but arranged so discharge will not cause injury, damage or nuisance. The termination point of a drain line must comply with the requirements of AS/NZS 3500.4.

  • Page 48: Connections - Electrical

    (RCD) installed in the electrical circuit to the water heater. The 571D270 model water heater is recommended for connection to an uninterrupted 24 hour continuous tariff power supply. Depending upon the size of the household and its hot water requirements and if the Electricity Retailer permits, an extended off-peak (overnight and day) or Extended time-controlled power supply connection of a minimum 16 hours per day may also be suitable.

  • Page 49: Multiple Installations

    MULTIPLE INSTALLATIONS A multiple installation of Rheem 571D270 heat pump water heaters on a single manifold or multiple manifolds ® is possible, using the Equa-Flow manifold system, where large volumes of hot water are required. The Equa- Flow principle will function with water heaters in line or in rows back to back or around an external corner. Due to air flow requirements, it is not recommended to install the water heaters around an internal corner.
  • Page 50 MULTIPLE INSTALLATIONS INSTALLATION DIMENSIONS – MULTIPLE 571D270 HEAT PUMP WATER HEATERS In Line Manifold Back to Back Manifold TYPICAL INSTALLATION – MULTIPLE 571D270 HEAT PUMP WATER HEATERS – DEAD LEG...
  • Page 51 MULTIPLE INSTALLATIONS TYPICAL INSTALLATION – MULTIPLE HEAT PUMP WATER HEATERS – RECIRCULATING NO BOOST TYPICAL INSTALLATION – MULTIPLE 571D270 HEAT PUMP WATER HEATERS – INLINE BOOSTING...
  • Page 52 MULTIPLE INSTALLATIONS MANIFOLD ARRANGEMENT – MULTIPLE 571D270 HEAT PUMP WATER HEATERS Hot Manifold Assembly Cold Manifold Assembly...

  • Page 53: Commissioning

    COMMISSIONING TO FILL AND TURN ON THE WATER HEATER The power supply to the water heater must not be switched on until the water heater is filled with water and a satisfactory megger reading is obtained. • Open all of the hot water taps in the house (don’t forget the shower). •...

  • Page 54: Draining The Water Heater

    The freeze protection system will be rendered inoperable if electrical power is not available at the water heater. • Damage caused by freezing due to the unavailability of power at the water heater is not covered by the “Terms of the Rheem Warranty” Rheem warranty (refer to on page 4). •...
  • Page 55 This page is intentionally blank.
  • Page 56 This page is intentionally blank.

  • Page 57: Installation Report

    Off Peak 2 Electric continuous Other (please circle) (night) (night & day) If replacing a water heater, please give details Brand Model No Electric If a Rheem unit Tank Serial No Date of manufacture Collector Serial No’s Comments Signature: Installer: Customer: Date...
  • Page 58 This page is intentionally blank.
  • Page 59 This page is intentionally blank.
  • Page 60 Revision Date: 2024 May 121919 Rev-02...
