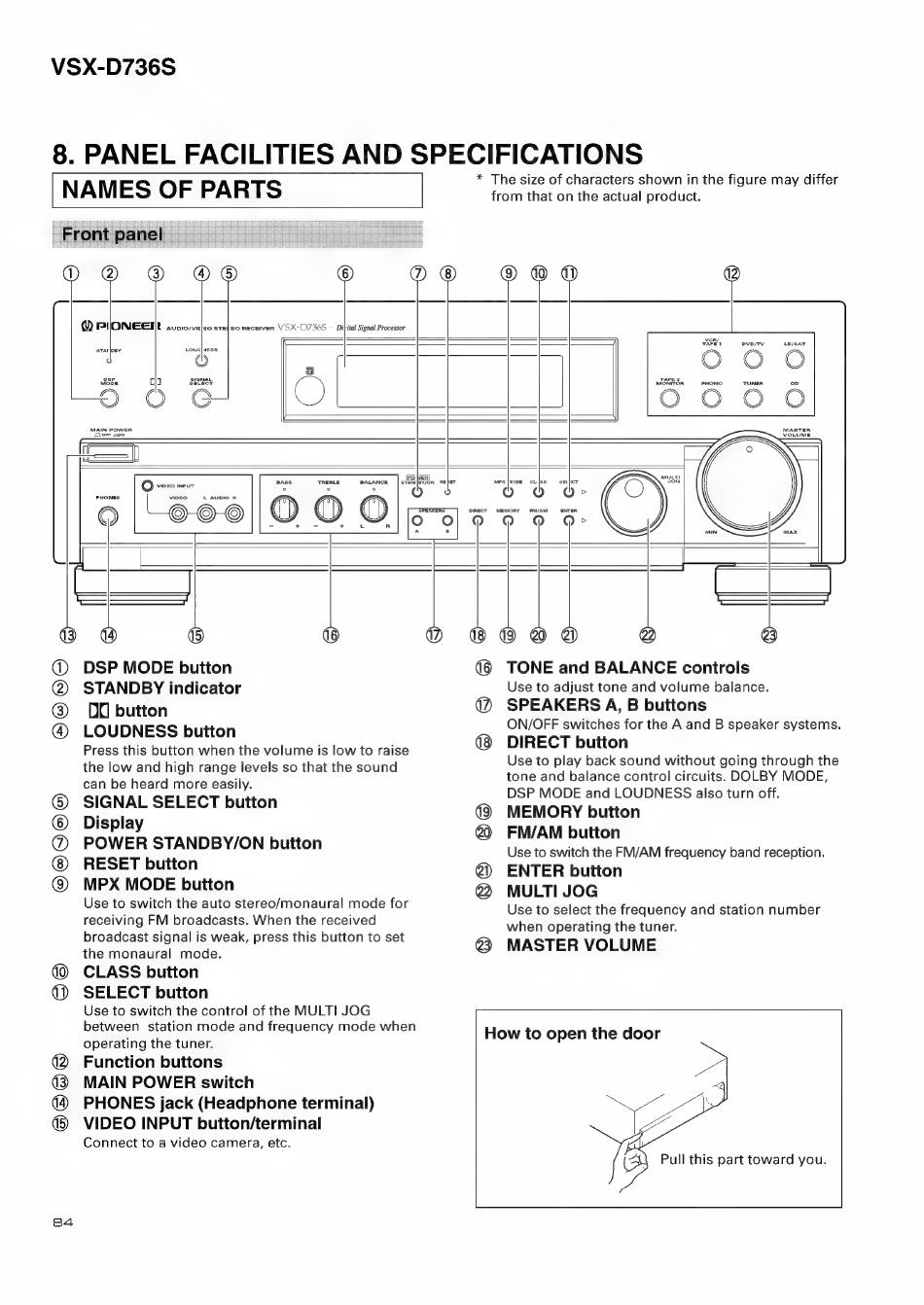

8. PANEL FACILITIES AND SPECIFICATIONS
* The size of characters shown in the figure may differ
from that on the actual product.
NAMES OF PARTS
IC) ©OOQ©O S©0O @
@@OO®
el eo Receiver VSX-1D736S _ Dil ital Signal Processor
DSP MODE button
STANDBY indicator
DO button
LOUDNESS button
Press this button when the volume is low to raise
the low and high range levels so that the sound
can be heard more easily.
SIGNAL SELECT button
Display
POWER STANDBY/ON button
RESET button
MPX MODE button
Use to switch the auto stereo/monaural mode for
receiving FM broadcasts. When the received
broadcast signal is weak, press this button to set
the monaural mode.
CLASS button
SELECT button
Use to switch the control of the MULTI JOG
between station mode and frequency mode when
operating the tuner.
Function buttons
MAIN POWER switch
PHONES jack (Headphone terminal)
VIDEO INPUT button/terminal
Connect to a video camera, etc.
® 88 8©
Use to adjust tone and volume balance.
SPEAKERS A, B buttons
ON/OFF switches for the A and B speaker systems.
DIRECT button
Use to play back sound without going through the
tone and balance control circuits. DOLBY MODE,
DSP MODE and LOUDNESS also turn off.
MEMORY button
FM/AM button
Use to switch the FM/AM frequency band reception.
ENTER button
MULTI JOG
Use to select the frequency and station number
when operating the tuner.
MASTER VOLUME
How to open the door
Pa
ae
Pull this part toward you.
