VSX-D736S

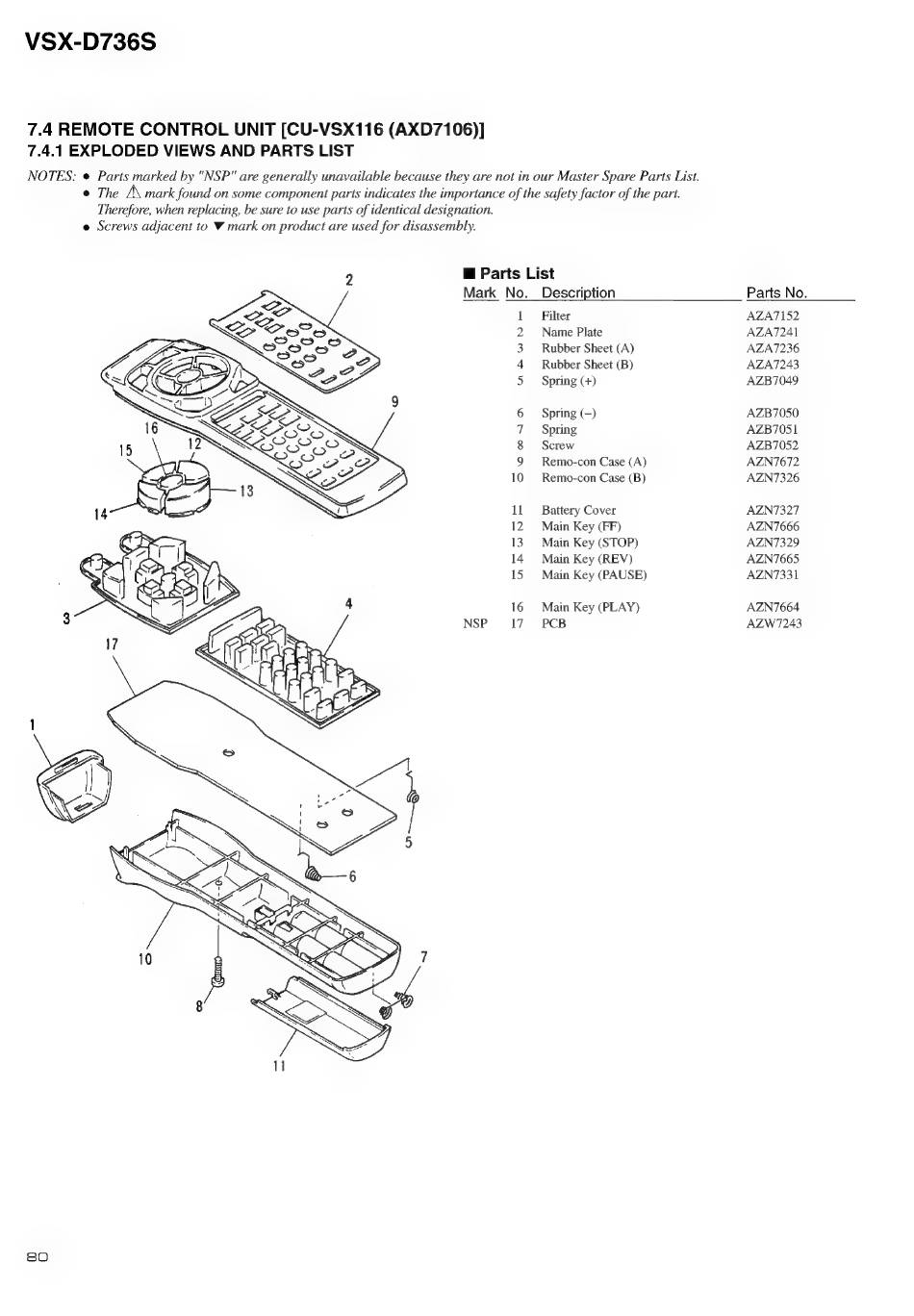

7.4 REMOTE CONTROL UNIT [CU-VSX116 (AXD7106)]
7.4.1 EXPLODED VIEWS AND PARTS LIST
NOTES: ¢ Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
e The A\ mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
e Screws adjacent to W mark on product are used for disassembly.
@ Paris List
Mark No. Description Parts No.
1 Filter AZAT7152
2 Name Plate AZA7241
3. Rubber Sheet (A) AZA7236
4 — Rubber Sheet (B) AZA7243
5 Spring (+) AZB7049
6 — Spring (-) AZB7050
7 ~~ Spring AZB7051
8 Screw AZB7052
9 Remo-con Case (A) AZN7672
10 Remo-con Case (B) AZN7326
1l Battery Cover AZN7327
12. Main Key (FF) AZN7666
13. Main Key (STOP) AZN7329
14 Main Key (REV) AZN7665
15 Main Key (PAUSE) AZN7331
16 Main Key (PLAY) AZN7664
NSP 17. PCB AZW7243
80
