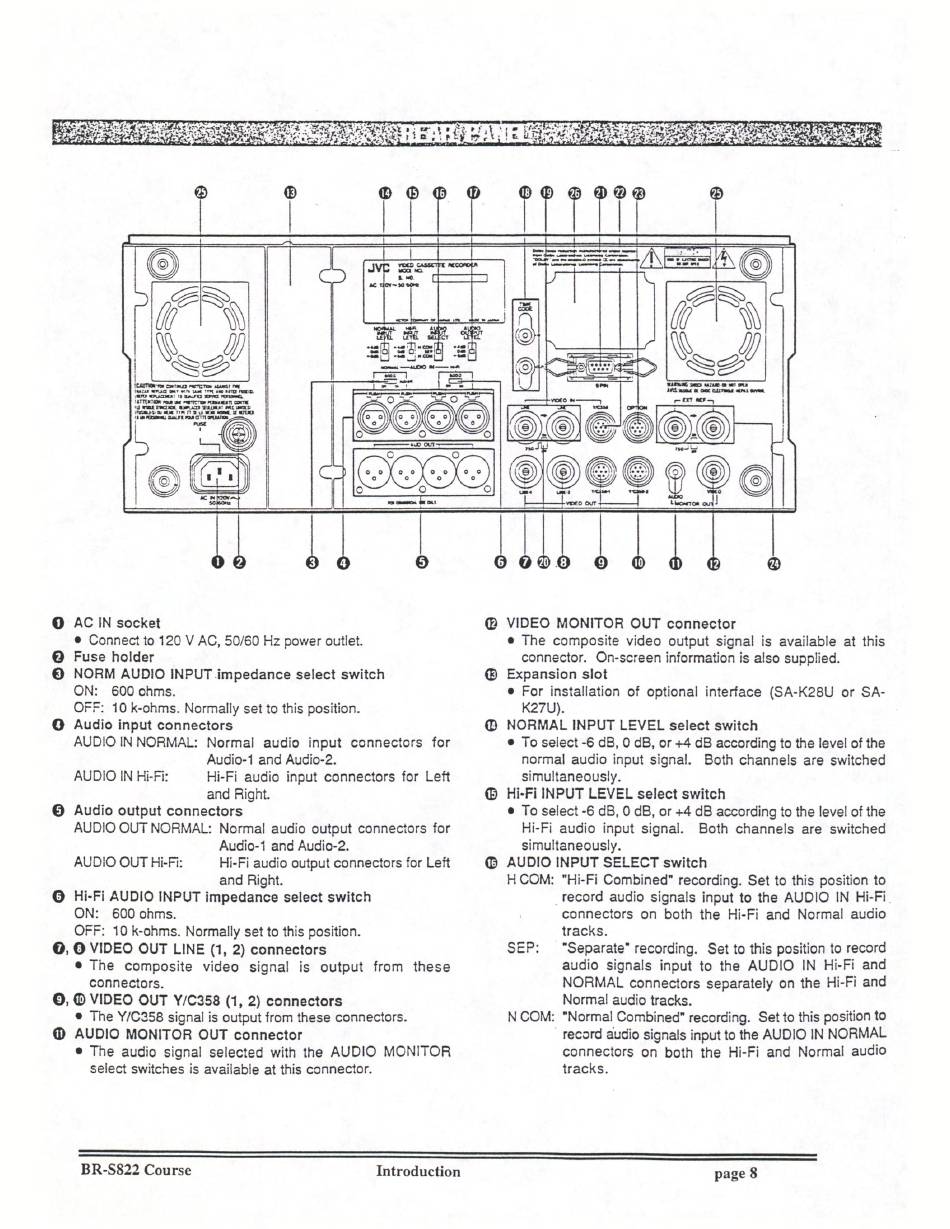

@ AC IN socket @ VIDEO MONITOR OUT connector
e Connect to 120 V AC, 50/60 Hz power outlet. e The composite video output signal is available at this
@ Fuse holder connector. On-screen information is also supplied.
© NORM AUDIO INPUT impedance select switch @ Expansion slot
ON: 600 ohms. e For installation of optional interface (SA-K28U or SA-
OFF: 10 k-ohms. Normally set to this position. K27U).
© Audio input connectors @ NORMAL INPUT LEVEL select switch
AUDIO INNORMAL: Normal audio input connectors for
Audio-1 and Audio-2.
Hi-Fi audio input connectors for Left
and Right.
© Audio output connectors
AUDIO OUT NORMAL: Normal audio output conneciors for
Audio-1 and Audio-2.
Hi-Fi audio output connectors for Left
and Right.
@ Hi-Fi AUDIO INPUT impedance select switch
ON: 600 ohms.
OFF: 10 k-ohms. Normally set to this position.
@, © VIDEO OUT LINE (1, 2) connectors
e The composite video signal is output from these
connectors.
©, © VIDEO OUT Y/C358 (1, 2) connectors
e The Y/C358 signal is output from these connectors.
AUDIO IN Hi-Fi:
AUDIO OUT Hi-Fi:
@ AUDIO MONITOR OUT connector
e The audio signal selected with the AUDIO MONITOR
select switches is available at this connector.
EEN
BR-S822 Course
Introduction
e To select -6 dB, 0 dB, or +4 dB according to the level of the
normal audio input signal. Both channels are switched
simultaneously.
Hi-Fi INPUT LEVEL select switch
e To select -6 dB, 0 dB, or +4 dB according to the level of the
Hi-Fi audio input signal. Both channels are switched
simultaneously.
AUDIO INPUT SELECT switch
H COM: "Hi-Fi Combined" recording. Set to this position to
_-tecord audio signals input to the AUDIO IN Hi-Fi.
connectors on both the Hi-Fi and Normal audio
tracks.
SEP: "Separate" recording. Set to this position to record
audio signals input to the AUDIO IN Hi-Fi and
NORMAL connectors separately on the Hi-Fi and
Normal audio tracks.
N COM: "Normal Combined" recording. Set to this position to
record audio signals input to the AUDIO IN NORMAL
connectors on both the Hi-Fi and Normal audio
tracks.
