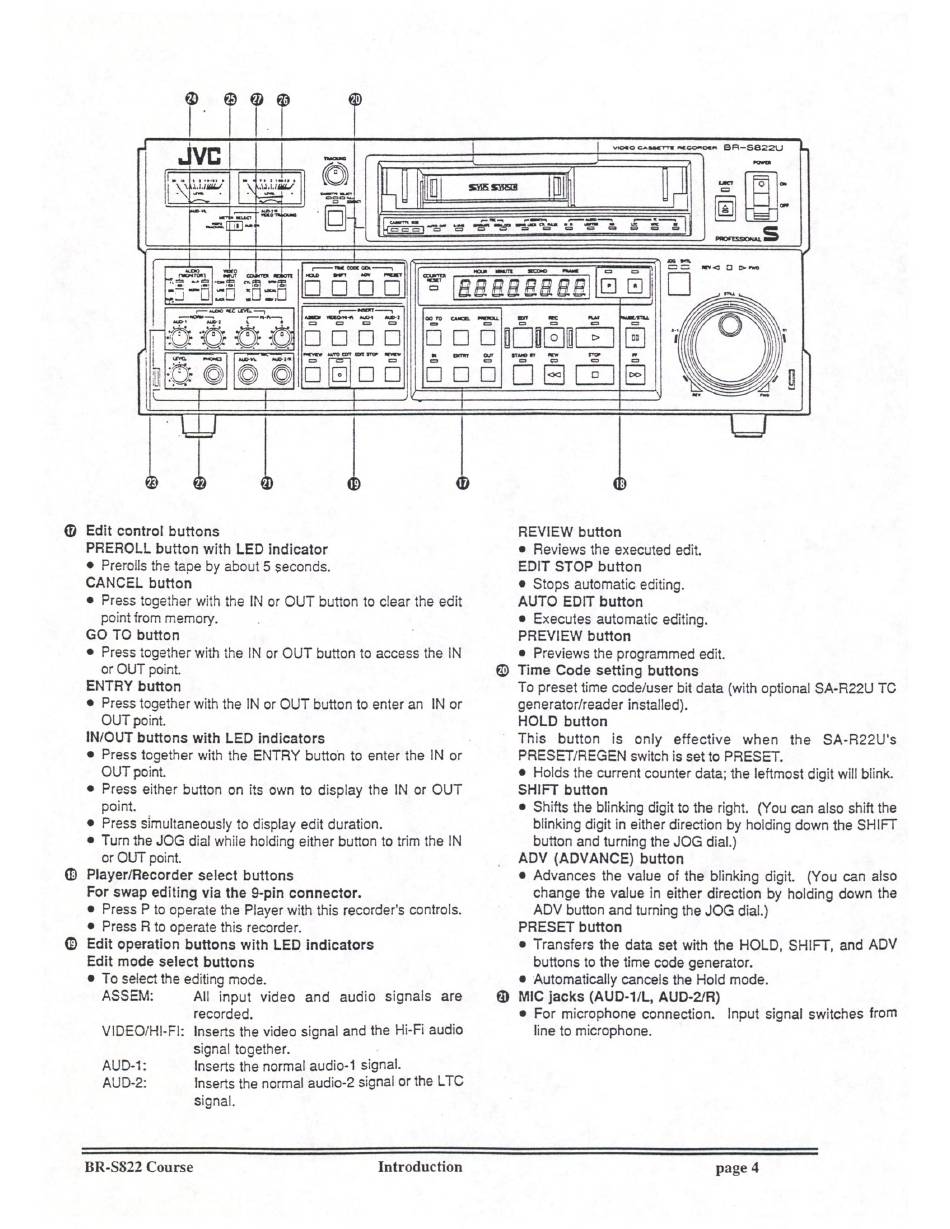

| MiDogoO CasseTTE RECORDER BR-SB22U
@ Edit control buttons
PREROLL button with LED indicator
e Prerolls the tape by about 5 seconds.
CANCEL button
e Press together with the IN or OUT button to clear the edit
point from memory.
GO TO button
© Press together with the IN or OUT button to access the IN
or OUT point.
ENTRY button
e Press together with the IN or OUT button to enter an IN or
OUT point.
IN/OUT buttons with LED indicators
e Press together with the ENTRY button to enter the IN or
OUT point.
e Press either button on its own to display the IN or OUT
point.
e Press simultaneously to display edit duration.
e Turn the JOG dial while holding either button to trim the IN
or OUT point.
Player/Recorder select buttons
For swap editing via the 9-pin connector.
e Press P to operate the Player with this recorder's controls.
@ Press R to operate this recorder.
Edit operation buttons with LED indicators
Edit mode select buttons
e To select the editing mode.
ASSEM: All input video and audio signals are
recorded.
VIDEO/HI-FI: Inserts the video signal and the Hi-Fi audio
signal together. .
AUD-1: Inserts the normal audio-1 signal.
AUD-2: Inserts the normal audio-2 signal or the LTC
signal.
©
REVIEW button
e Reviews the executed edit.
EDIT STOP button
e Stops automatic editing.
AUTO EDIT button
e Executes automatic editing.
PREVIEW button
e Previews the programmed edit.
@ Time Code setting buttons
To preset time code/user bit data (with optional SA-R22U TC
generator/reader installed).
HOLD button |
This button is only effective when the SA-R22U's
PRESET/REGEN switch is set to PRESET.
e Holds the current counter data; the leftmost digit will blink.
SHIFT button
e Shifts the blinking digit to the right. (You can also shift the
blinking digit in either direction by holding down the SHIFT
button and turning the JOG dial.)
ADV (ADVANCE) button
e Advances the value of the blinking digit. (You can also
change the value in either direction by holding down the
ADV button and turning the JOG dial.)
PRESET button
e Transfers the data set with the HOLD, SHIFT, and ADV
buttons to the time code generator.
e Automatically cancels the Hold mode.
MIC jacks (AUD-1/L, AUD-2/R)
e For microphone connection. Input signal switches from
line to microphone.
BR-S822 Course Introduction
page 4
