iPhone and smartphone

NOTES
• For details on how to connect an external
device using a separately sold cable, refer
to the manual for the cable.
• For details concerning the connection
and operations of iPhone or smartphone,
refer to the Operation Manual.
• iPhone and Lightning are trademarks of
Apple Inc., registered in the U.S. and
other countries and regions.

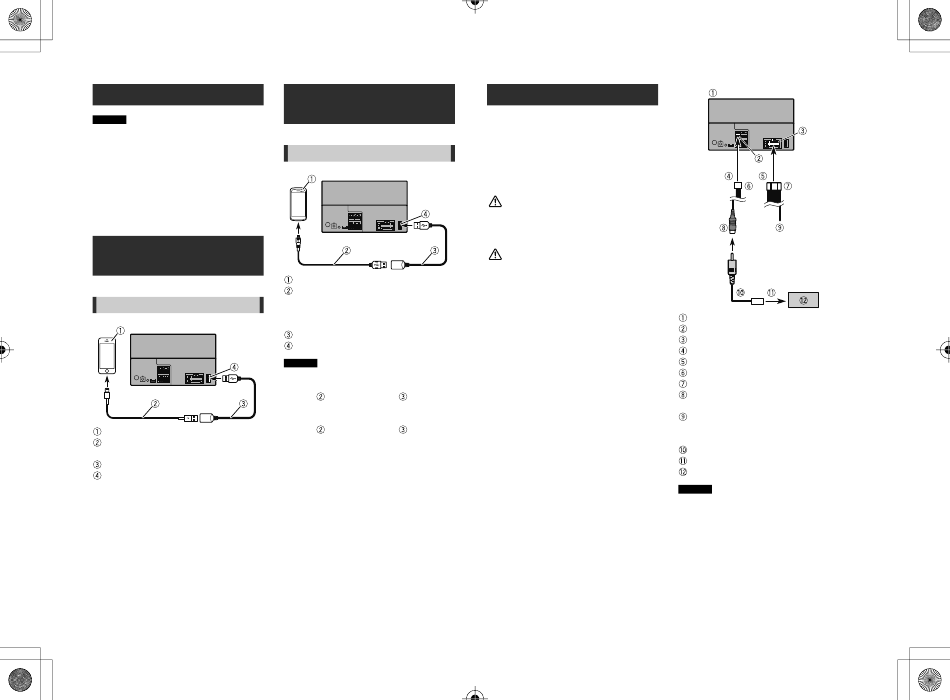

iPhone with Lightning
connector
Connecting via the USB port

iPhone with Lightning connector

USB interface cable for iPhone (sold
separately)
USB cable 1.5 m (4 ft. 11 in.)
USB port
6
En
Smartphone (Android™
device)
Connecting via the USB port
Smartphone
USB - micro USB cable (USB Type-A to
micro USB Type-B) (sold separately)
USB Type-C® cable (USB Type-A to USB
Type-C) (sold separately)
USB cable 1.5 m (4 ft. 11 in.)
USB port
NOTES
• Due to the USB standard, the total length
when a USB Type-A to micro USB Type-B
cable ( ) and a USB cable ( ) are
connected cannot exceed 2 m (6 ft. 6 in.),
and when a USB Type-A to USB Type-C
cable ( ) and a USB cable ( ) are
connected cannot exceed 4 m (13 ft. 1
in.). If you use a cable other than the
above conditions, the main unit function
may not operate properly.
• Android is a trademark of Google LLC.
• USB Type-C® and USB-C® are registered
trademarks of USB Implementers Forum.
Camera
About rear view camera
When you use the rear view camera, the
rear view image is automatically switched
from the video by moving the shift lever to
REVERSE (R). Camera View mode also
allows you to check what is behind you
while driving.
WARNING
USE INPUT ONLY FOR REVERSE OR MIRROR
IMAGE REAR VIEW CAMERA. OTHER USE
MAY RESULT IN INJURY OR DAMAGE.
CAUTION
• The screen image may appear reversed.
• With the rear view camera you can keep
an eye on trailers, or back into a tight
parking spot. Do not use for
entertainment purposes.
• Objects in rear view may appear closer or
more distant than in reality.
• The image area of full-screen images
displayed while backing or checking the
rear of the vehicle may differ slightly.
This product
Connector 1
Power supply
To connector 1
To power supply
SWC/Back Camera cord
Power cord
Brown (REAR VIEW CAMERA IN) 23 cm
(9 in.)
Violet/white (REVERSE-GEAR SIGNAL
INPUT)
Refer to Power cord on page 4.
RCA cable (sold separately)
To video output
Rear view camera (sold separately)
NOTES
• Connect only the rear view camera to
REAR VIEW CAMERA IN. Do not connect
any other equipment.
• Some appropriate settings are required
to use rear view cameras. For details, refer
to the Operation Manual.
