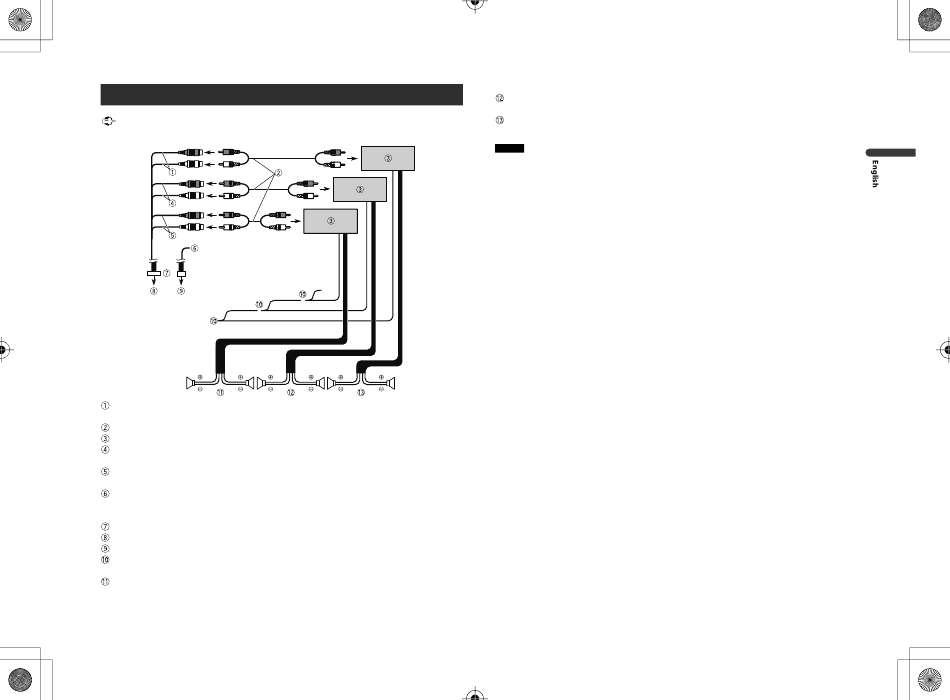

Power amp (sold separately)

Important
The speaker leads are not used when this connection is in use.
Subwoofer output (SUBWOOFER OUTPUT) 23 cm (9 in.) (STD)
Low range output (NW)
RCA cable (sold separately)
Power amp
Front output (FRONT OUTPUT) 15 cm (5-7/8 in.) (STD)
High range output (NW)
Rear output (REAR OUTPUT) 15 cm (5-7/8 in.) (STD)
Middle range output (NW)
Yellow/black (MUTE)
If you use an equipment with Mute function, wire this lead to the Audio Mute lead on
that equipment. If not, keep the Audio Mute lead free of any connections.
Pre out cord
To pre out supply
To connector 1
System remote control
Connect to Blue/white cable (max. 300 mA 12 V DC).
Rear speaker (STD)
Middle range speaker (NW)
Front speaker (STD)
High range speaker (NW)
Subwoofer (STD)
Low range speaker (NW)
NOTE
Select the appropriate speaker mode between standard mode (STD) and network mode
(NW). For details, refer to the Operation Manual.
