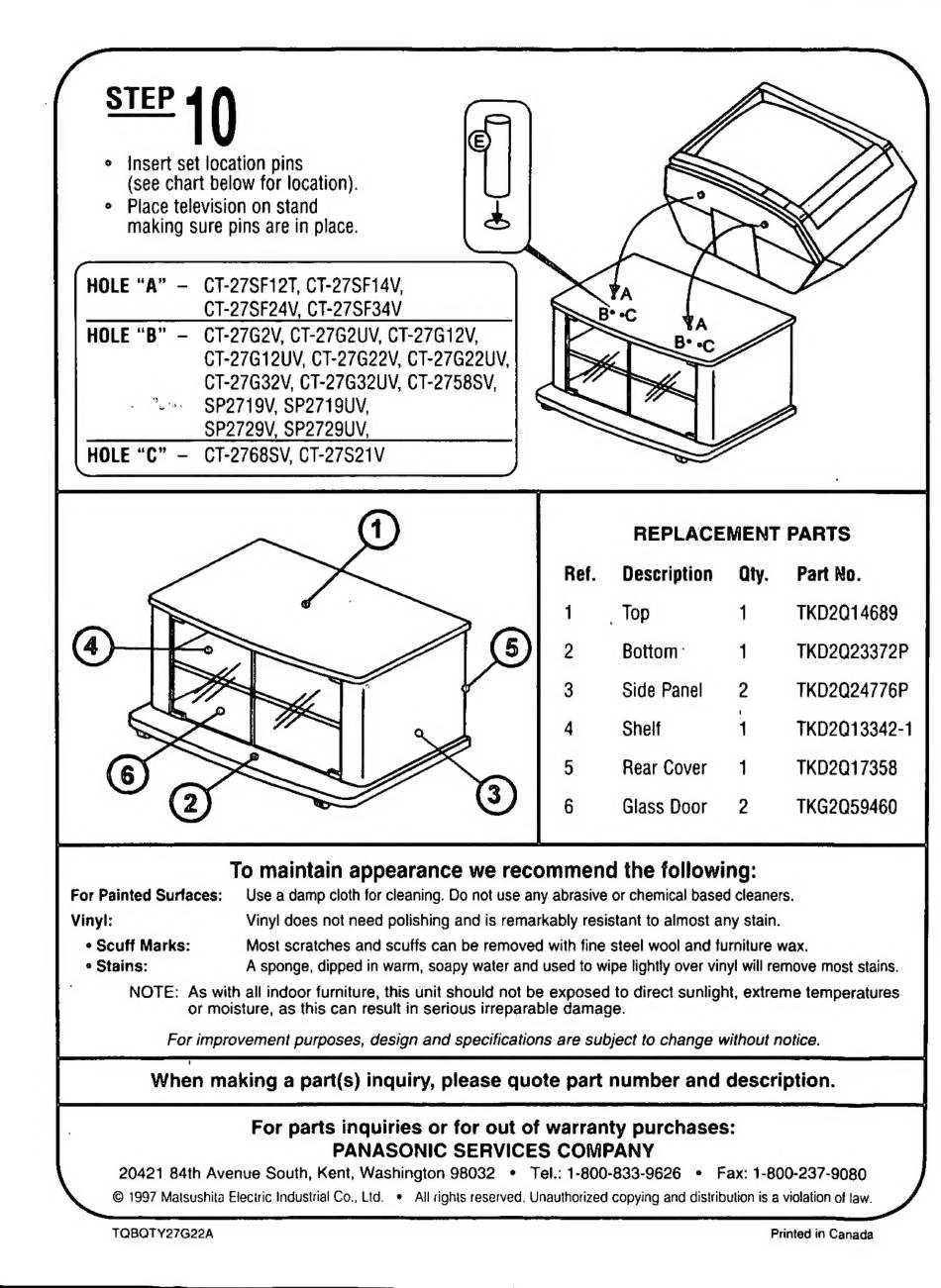

Panasonic TY-27G22M Assembly Instructions page 4

240
e insert set location pins
(see chart below for location).
e Place television on stand
making sure pins are in place.
HOLE "A" — CT-27SF12T, CT-27SF14V,
CT-27SF24V, CT-27SF34V
HOLE "B" — CT-27G2V, CT-27G2UV, CT-27G12V,
CT-27G12UV, CT-27G22V, CT-27G22UV,
CT-27G32V, CT-27G32UV, CT-2758SV,
SP2719V, SP2719UV,
oP2729V, SP2729UV,
HOLE "C" — CT-2768SV, CT-27521V
Description . Part No.
_ Top TKD2014689
Bottom: TKD2Q23372P
Side Panel TKD2Q24776P
Shelf l TKD2013342-1
Rear Cover TKD2Q17358
Glass Door TKG2Q59460
To maintain appearance we recommend the following:
For Painted Surfaces: Use a damp cloth for cleaning. Do not use any abrasive or chemical based cleaners.
Vinyl: Vinyl does not need polishing and is remarkably resistant to almost any stain.
e Scuff Marks: Most scratches and scuffs can be removed with fine steel wool and furniture wax.
e Stains: A sponge, dipped in warm, soapy water and used to wipe lightly over vinyl will remove most stains.
NOTE: As with all indoor furniture, this unit should not be exposed to direct sunlight, extreme temperatures
or moisture, as this can result in serious irreparable damage.
For improvement purposes, design and specifications are subject to change without notice.
When making a part(s) inquiry, please quote part number and description.
For parts inquiries or for out of warranty purchases:
PANASONIC SERVICES COMPANY
20421 84th Avenue South, Kent, Washington 98032 e» Tel.: 1-800-833-9626 »° Fax: 1-800-237-9080
© 1997 Matsushita Eleciric Industrial Co., Ltd. © All rights reserved. Unauthorized copying and distribution is a violation of law.
TQOBQTY27G22A Printed in Canada
