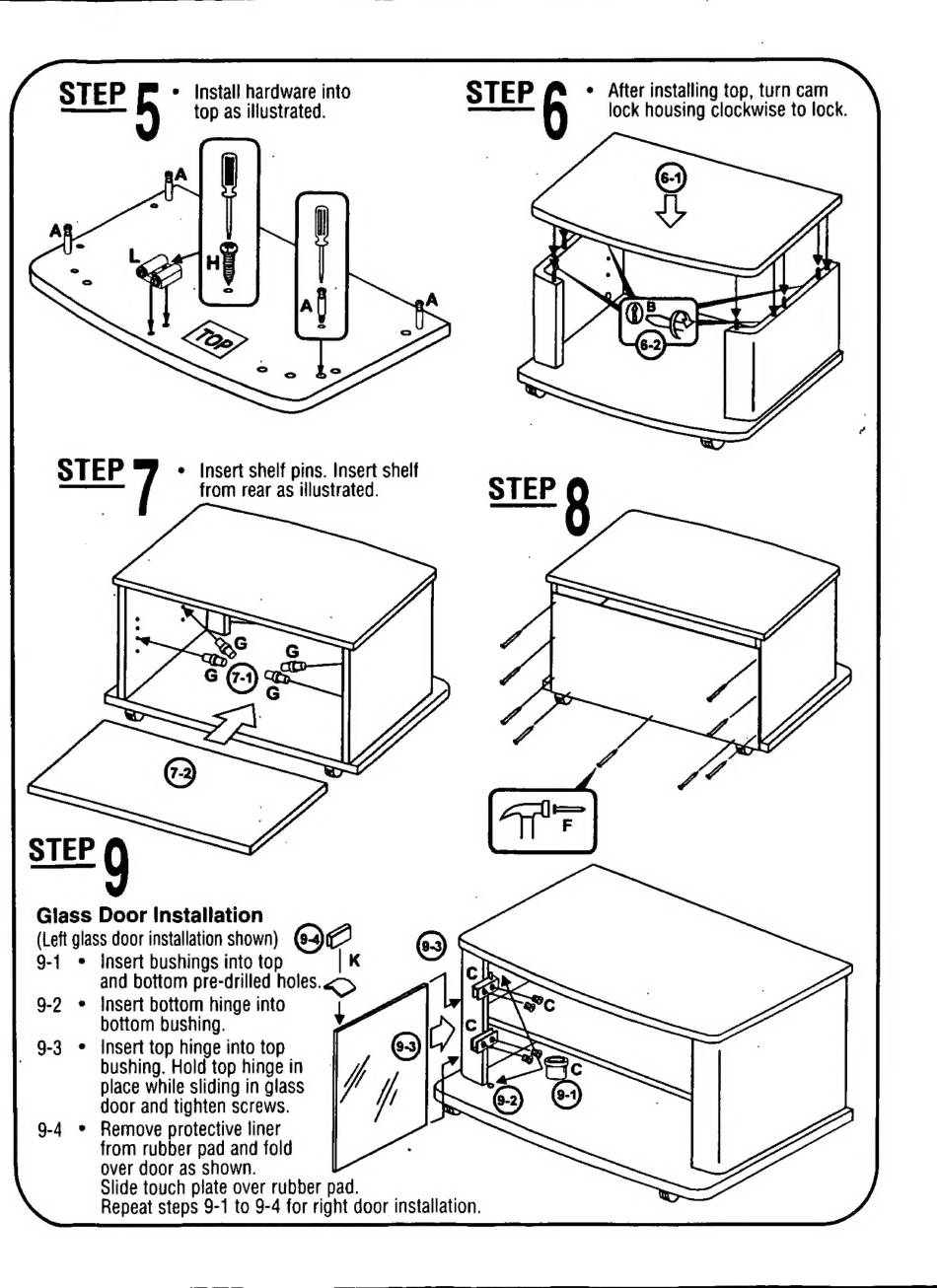

top as illustrated. lock housing clockwise to lock.
s e Install hardware into SEP 6 e After installing top, turn cam
e Insert shelf pins. Insert shelf
from rear as illustrated.
Glass Door Installation
(Left glass door installation shown) QA
9-1 °
9-2
93°
Insert bushings into top | K
and bottom pre-drilled holes.
Insert bottom hinge into {
bottom bushing.
Insert top hinge into top
bushing. Hold top hinge in
place while sliding in glass
door and tighten screws.
Remove protective liner
from rubber pad and fold
over door as shown.
Slide touch plate over rubber pad.
Repeat steps 9-1 to 9-4 for right door installation.
