Panasonic TY-27G22M Assembly Instructions page 2
Video stand

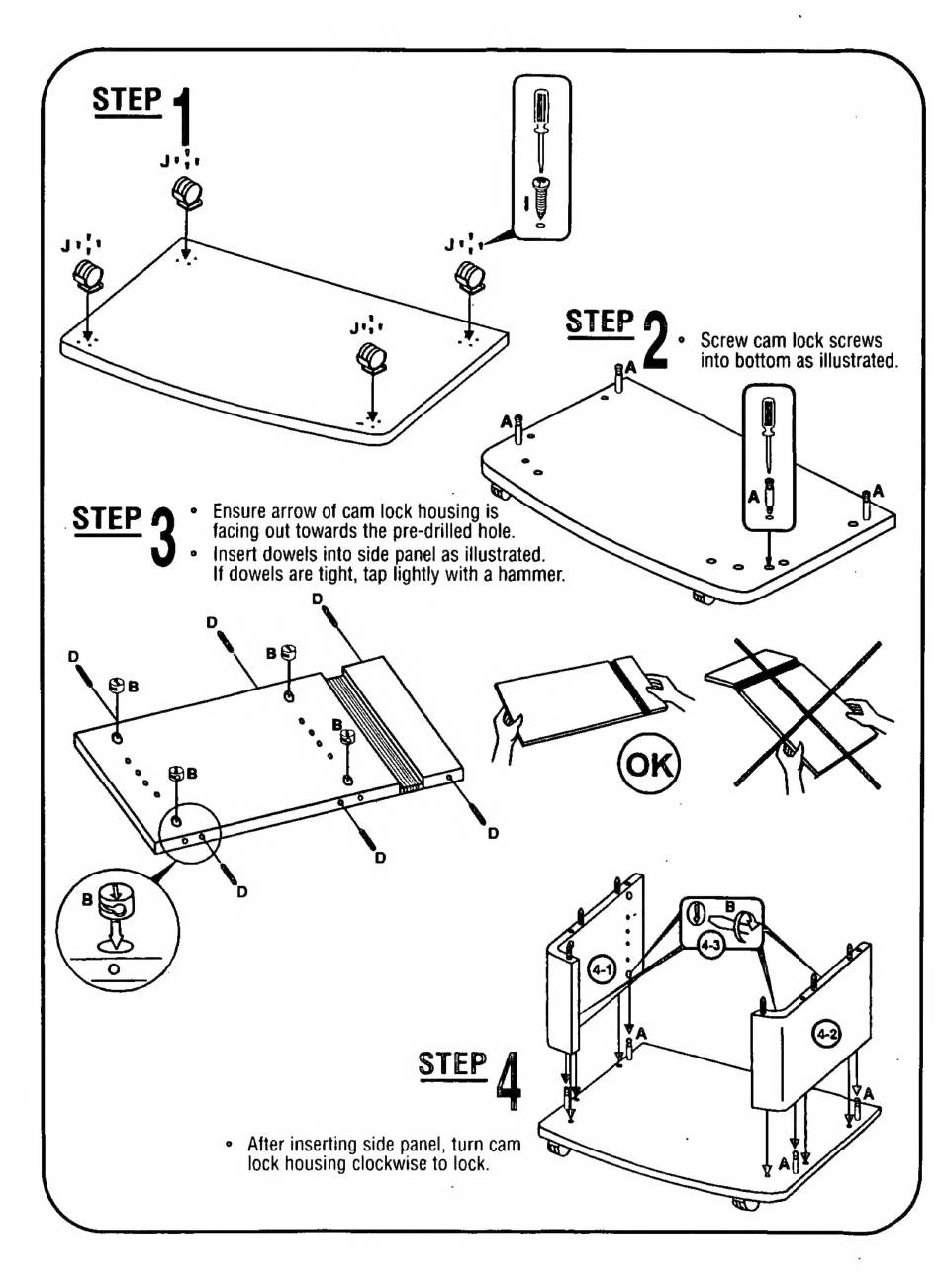

STEP
o Screw cam lock screws
-A
into bottom as illustrated.
l
Te
e Ensure arrow of cam lock housing is
i STEP 3
facing out towards the pre-drilled hole.
o insert dowels into side panel as illustrated.
If dowels are tight, tap lightly with a hammer.
STEP 4
e After inserting side panel, turn cam
lock housing clockwise to lock.
