IMPORTANT:
KEEP THESE INSTRUCTIONS FOR FUTURE
REFERENCE
INSTALLATION AND OPERATING INSTRUCTIONS
If this stove is not properly installed, a house fire may result. For your safety, follow the installation
instructions. Contact local building or fire officials about restrictions and installation inspection
requirements in you area.

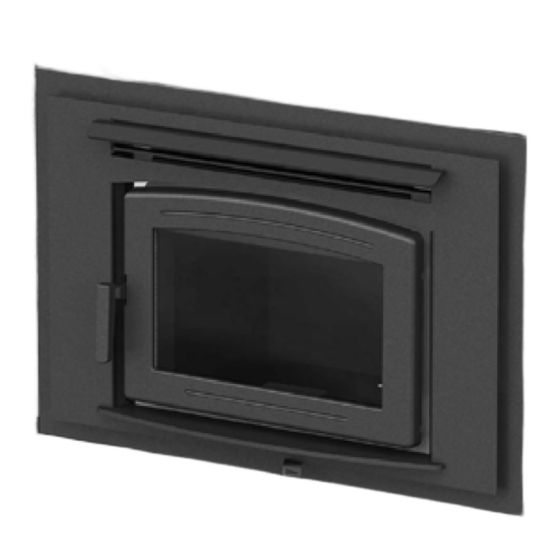

MODEL: FP25LE, FP25LE ARCH
031023-20
FP25LE
- AUSTRALIA
SAFETY NOTICE
FP25LE_AS, FP25LE_AR_AS
SERIAL #
100006366
Advertisement
Table of Contents
Related Manuals for Pacific energy FP25LE
Summary of Contents for Pacific energy FP25LE
- Page 1 If this stove is not properly installed, a house fire may result. For your safety, follow the installation instructions. Contact local building or fire officials about restrictions and installation inspection requirements in you area. MODEL: FP25LE, FP25LE ARCH 031023-20 FP25LE_AS, FP25LE_AR_AS...
-
Page 2: Table Of Contents
Contents Contents General Safety ........................3 Maintenance Checks ....................4 Weekly: ...........................4 Monthly: .........................4 When Cleaning the Chimney System: ...............4 Creosote ...........................5 Formation and Need fro Removal ...............5 Avoiding a Chimney Fire..................5 In the event of a Chimney Fire ................5 Operation .........................6 Wood Selection ......................6 Lighting the Fire ......................6 Curing of the New Paint Finish ................6... -
Page 3: General Safety
This will also create heavy deposit build-up in the chimney. detectors be installed. 4. DOOR GASKET - The gasket used by Pacific Energy (22mm medium density fiberglass rope) requires only light pressure to seal. This will prolong seal life. It is important that the door seal be maintained in good condition. -
Page 4: Maintenance Checks
Maintenance Checks Check the following parts for damage such as cracks, excessive corrosion, burned out sections and excessive warping: (See website for descriptions and more detail) Weekly: - Firebrick - Visual, for cracking. - Door Gasket - sagging, placement, damage. Monthly: - Brick rail tabs and brick rails. -
Page 5: Creosote
4. After the chimney fire is out, the chimney must be cleaned and checked for stress and cracking before starting another fire. Also check combustibles around chimney and the roof. This should be done by a certified inspector/chimney sweep. FP25LE, FP25LE_AR_AS_031023-20 100006366... -
Page 6: Operation
‘freshen up’ a fire in this heater. Keep all such liquids well away Your Pacific Energy heater is designed for maximum overall efficiency at a from the heater while in use. moderate firing rate. Over firing is hazardous and a waste of fuel. Too slow a burn contributes to creosote buildup and lowers combustion efficiency. -
Page 7: Normal Operation
Contact draft. may cause skins burns. 3) Inadequate draft may cause back puffing into the room and plugging of the chimney. Smoke leaking into the room through appliance and chimney connector joints indicates inadequate draft. FP25LE, FP25LE_AR_AS_031023-20 100006366... -
Page 8: Dimensions
Dimensions [1425 mm] Fig. # 1 [102 mm] [1055 mm] [610 mm] [1150 mm] [883 mm] [269 mm] Unit and standoffs only - Steel framing kit not shown. Minimum Clearances Fireplace Clearances and Dimensions Distance to combustible material from the side/back standoffs and framing kit. Ceiling clearance - both in the chase and in the room: from the base of the fireplace to 2.13m the ceiling. -
Page 9: Fireplace Installation
6mm thick floor protector (compressed board) [610mm] should be used under the appliance base when installing the appliance (see joint AS/ NZS 2918:2018 3.3.2). The Thermal resistivity [1.48m] of the floor protector is 0.026m².K/W for 6mm thick compressed cement sheets. FP25LE, FP25LE_AR_AS_031023-20 100006366... - Page 10 Fig. # 4 Each Kit Contains: Item Part # Description Qty. 5049.9912 SCREW, TEKS Pkg 40 #8 x 1/2”(13mm) 7746 STUD, TOP/BOTTOM 56”(1.42m)L 9093.22 STUD, CNTR SUPPORT SIDES, 15”(381mm)L 7747 FRAMING KIT LEG 3 1/2"(89mm)L ASSEMBLY • Lay out top/bottom studs (#2) and center studs (#3) on their sides on a large flat surface.
-
Page 11: Chimney Installation
600mm above highest projection within 3000mm. The installation must meet all local codes. Do not connect this unit to a chimney flue serving another appliance. Minimum system height is 4600mm (measured from base of appliance). Fig. #6 FP25LE, FP25LE_AR_AS_031023-20 100006366... - Page 12 Room Seal Flue Kit Insulated Room Seal Flue Kit Insulated Room Sealed Flue Kit Reduced Clearance 4m Flue Kit Fully Sealed 4m Flue Kit Painted Insulated RSF from the heater Stainless Steel RSF outside the home Flue Assembly Optional Support Brace 1000 NOTE: NOTE:...
-
Page 13: Combustion Air
WARNING: THE COMBUSTION AIR INLET MUST BE AT LEAST 1.5m BELOW CHIMNEY OUTLET AND MUST NEVER TERMINATE IN ATTIC SPACES. Fig. # 7 Fig. # 8 OUTSIDE AIR ADAPTER left or right mounting Air Intake from side or rear FP25LE, FP25LE_AR_AS_031023-20 100006366... -
Page 14: Blower Operation
Blower Operation The FP25LE blowers must be connected to 240 VAC house hold electrical system. Connect the blower circuit to a wall switch or fan speed controller.(not supplied) All electrical service should be performed by a certified/licensed electrician. The FP25 comes equiped with a power cord. Plug the power cord into an approved outlet. - Page 15 This Fireplace requires Non-Combustible Ember Protection extending from face of the unit out in front of the Door. This can be tile, brick, slate, stone or metal. Minimum 20GA steel Fig. # 12 Floor Protection [450mm] [1.48m] Minimum Width - 1.48 m centered with door opening Minimum Overall Depth - 450mm FP25LE, FP25LE_AR_AS_031023-20 100006366...
-
Page 16: Finishing The Chase
Finishing The Chase The front facing area of the FP25LE must be covered with non-combustible cement board prior to applying any non-combustible finishing material. Use the Cement Board manufacturer's guidelines and suggested fasteners to attach the cement board to the unit and studs. -
Page 17: Mantel And Finishing Clearances
Minimum distance to the Mantel side facing (Max 102mm deep) from the side of the fireplace 292mm door. **Raised hearth must be completely constructed of non-combustible materials** Minimum width of floor protection from side of door opening. 200mm Minimum depth of non-combustible ember protector: from the front of the fireplace. 420mm FP25LE, FP25LE_AR_AS_031023-20 100006366... -
Page 18: Firebrick Installation
Firebrick Installation This package contains 18 full-size firebricks, as well as 5 various cut-size bricks. With the heater in the upright position, install firebricks as follows: - Place 6 full-size firebricks and bricks C & D on the bottom of the heater first in the pattern shown below. - Next, install the rear firebricks, 4 full-size, two on each side of the baffle tube. -
Page 19: Cleaning/Maintenance
The blower requires occasional cleaning to prevent buildup of dust and hair. More frequent cleaning may be required if conditions are dusty or pets are present. This service is best performed by a qualified service technician. The blowers use sealed bearings and do not require service lubrication. FP25LE, FP25LE_AR_AS_031023-20 100006366... -
Page 20: Blower Replacement
Blower Replacement Fig. # 15 1. Remove the front trim by lifting and pulling away from the unit. Remove the four screws securing the back plate to the brackets and set them aside carefully to avoid damage. 2. Remove the Back plate mounting bracket by removing the two screws securing the bracket to the side casing of the unit. -
Page 21: Troubleshooting
Stove Won't Burn Combustion air supply - Check outside air supply for obstructions is blocked (see Combustion Air section) 2) Draft too low - Chimney plugged or restricted Inspect and clean - Chimney oversized or otherwise unsuitable Consult Dealer FP25LE, FP25LE_AR_AS_031023-20 100006366... -
Page 22: Parts List
Door Complete w gasket and glass 80000253 All parts may be ordered from your nearest Pacific Arch Door Complete w/ gasket and glass 80000166 Energy dealer. Contact Pacific Energy for the location of the dealer nearest you. 100006366 FP25LE_AS, FP25LE_AR_AS_031023-20... -
Page 23: Rating Label
It is attached to the heat shield by a stainless steel cable. Figure 18. 3. To access/view the rating label, gently pull the cable attached to the rating label plate and lift the plate free of the slot. Figure 19. Fig. # 18 Fig. # 19 FP25LE, FP25LE_AR_AS_031023-20 100006366... - Page 24 © 2023 Copyright Pacific Energy Fireplace Products LTD. Reproduction, adaptation, or translation without prior written permission is prohibited except as allowed under the copyright laws. For technical support, please contact your retailer Web site: www.pacificenergy.net 2975 Allenby Rd., Duncan, BC V9L 6V8...
