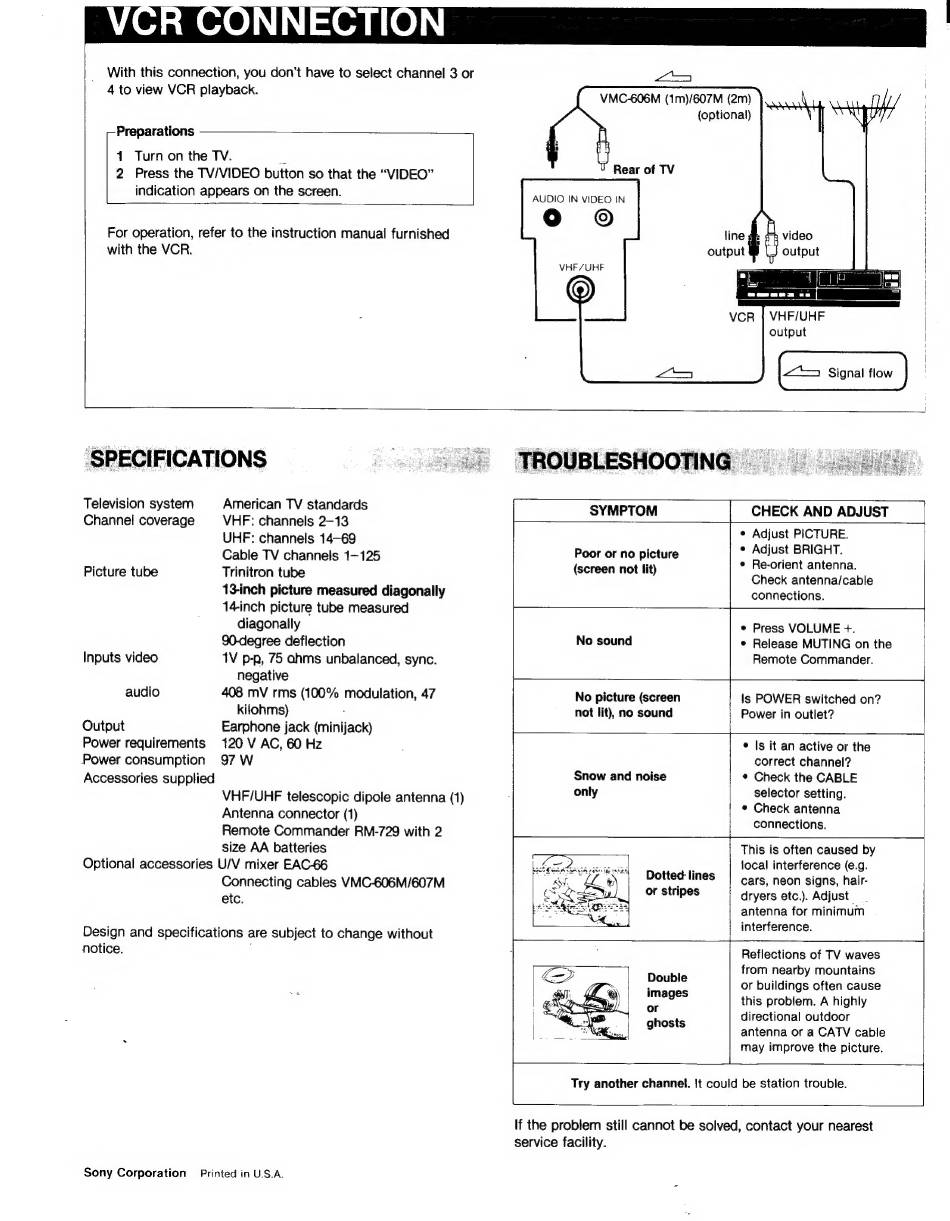

Troubleshooting - Sony TRINITRON KV13TR10 Operating Instructions Manual

With this connection, you don't have to select channel 3 or
4 to view VCR playback.
Preparations
1 Turn on the TV. t
2 Press the TV/VIDEO button so that the "VIDEO"
indication appears on the screen.
For operation, refer to the instruction manual furnished
with the VCR.
VMC-606M (1m)/607M (2m)
(optional)
Rear of TV
AUDIO IN VIDEO IN
o oO
VHF/UHF
<*> Signal flow
Television system
Channel coverage
American TV standards
VHF: channels 2-13
UHF: channels 14-69
Cable TV channels 1-125
Trinitron tube
13-inch picture measured diagonally
14inch picture tube measured
diagonally
90-degree deflection
1V p-p, 75 ahms unbalanced, sync.
negative
audio 408 mV rms (100% modulation, 47
kilohms)
Output Earphone jack (minijack)
Power requirements 120 V AC, 60 Hz
Power consumption 97 W
Accessories supplied
VHF/UHF telescopic dipole antenna (1)
Antenna connector (1)
Remote Commander RM-729 with 2
size AA batteries
Optional accessories U/V mixer EAC-66
Connecting cables VMC-606M/607M
etc.
Picture tube
Inputs video
Design and specifications are subject to change without
notice. ,
Sony Corporation Printed in U.S.A.
L eceaGansa acne wine ; local interference (e.g.
gh Dotted lines | cars, neon signs, hair-
or stripes dryers etc.). Adjust
antenna for minimum
interference.
[ } Reflections of TV waves
[ 73S Double from nearby mountains
images or buildings often cause
oe this problem. A highly
ghosts directional outdoor
antenna or a CATV cable
may improve the picture.
_—L
Try another channel. |t could be station trouble.
TROUBLESHOOTING
|_ SYMPTOM
Poor or no picture
(screen not lit)
CHECK AND ADJUST
¢ Adjust PICTURE.
e Adjust BRIGHT.
e Re-orient antenna.
Check antenna/cable
connections.
* Press VOLUME +.
e¢ Release MUTING on the
Remote Commander.
No sound
No picture (screen
not lit), no sound
Is POWER switched on?
Power in outlet?
* Is it an active or the
correct channel?
Snow and noise ¢ Check the CABLE
only selector setting.
® Check antenna
connections.
This is often caused by
If the problem still cannot be solved, contact your nearest
service facility.
