Fan Assembly - Black & Decker BFWL16R Instruction Manual

SET UP & USE

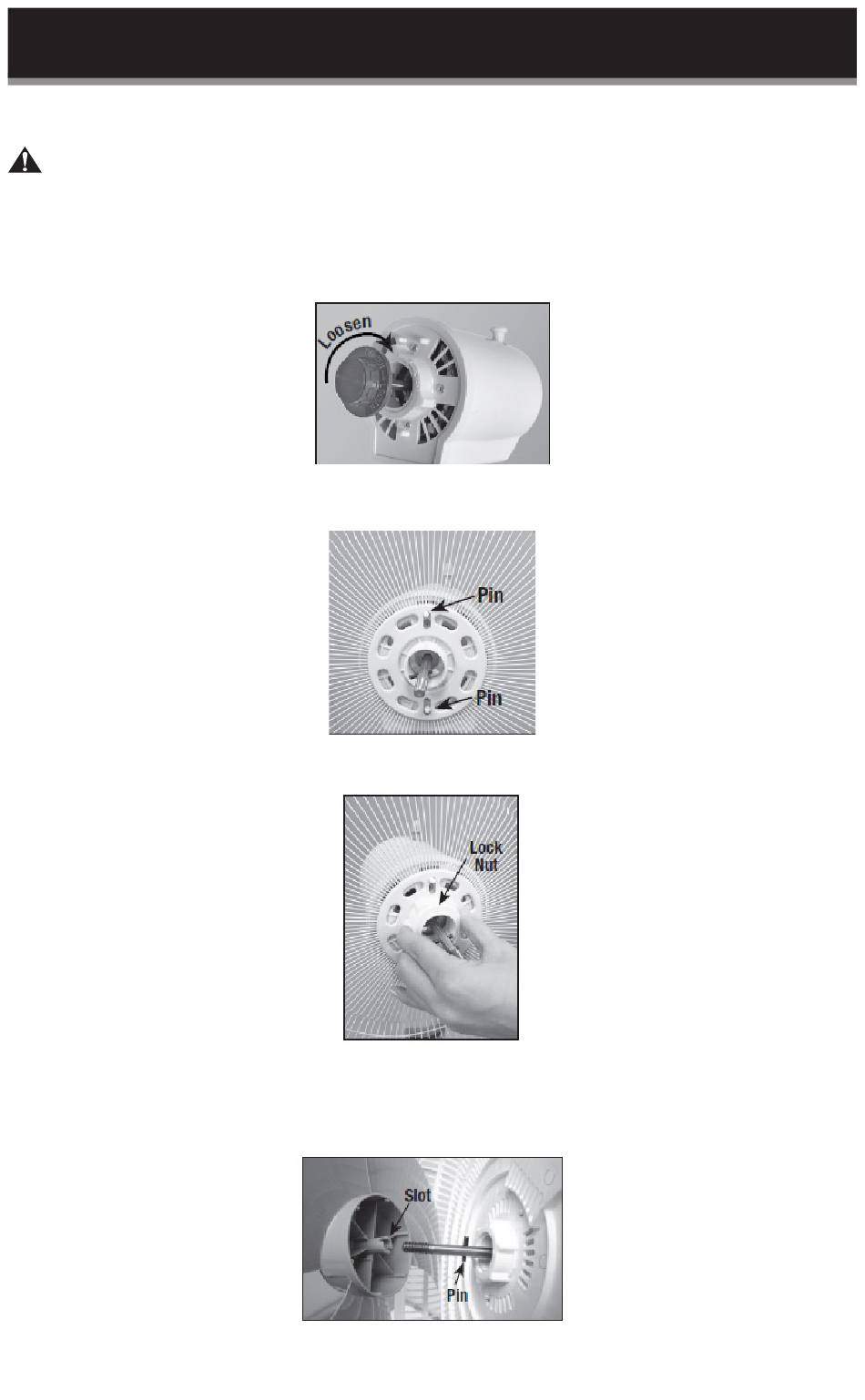

FAN ASSEMBLY

WARNING: Never attempt to run the fan without the grill in place and properly
secured. Failure to have the grill in place can result in serious injury.
1. Remove the rear grill plastic nut from the motor shaft pin by turning it clockwise, while
holding the motor housing tightly.
2. Thread the rear grill nut onto the motor housing to lock the rear grille securely in place.
3. Thread the rear grill nut onto the motor housing to lock the rear grille securely in place.
4. Remove any protective covering over the shaft before fan blade installation. Place the
fan blade onto the motor shaft. The pin on the motor shaft should be inserted into the
slot of the fan blade assembly.
Page 7
