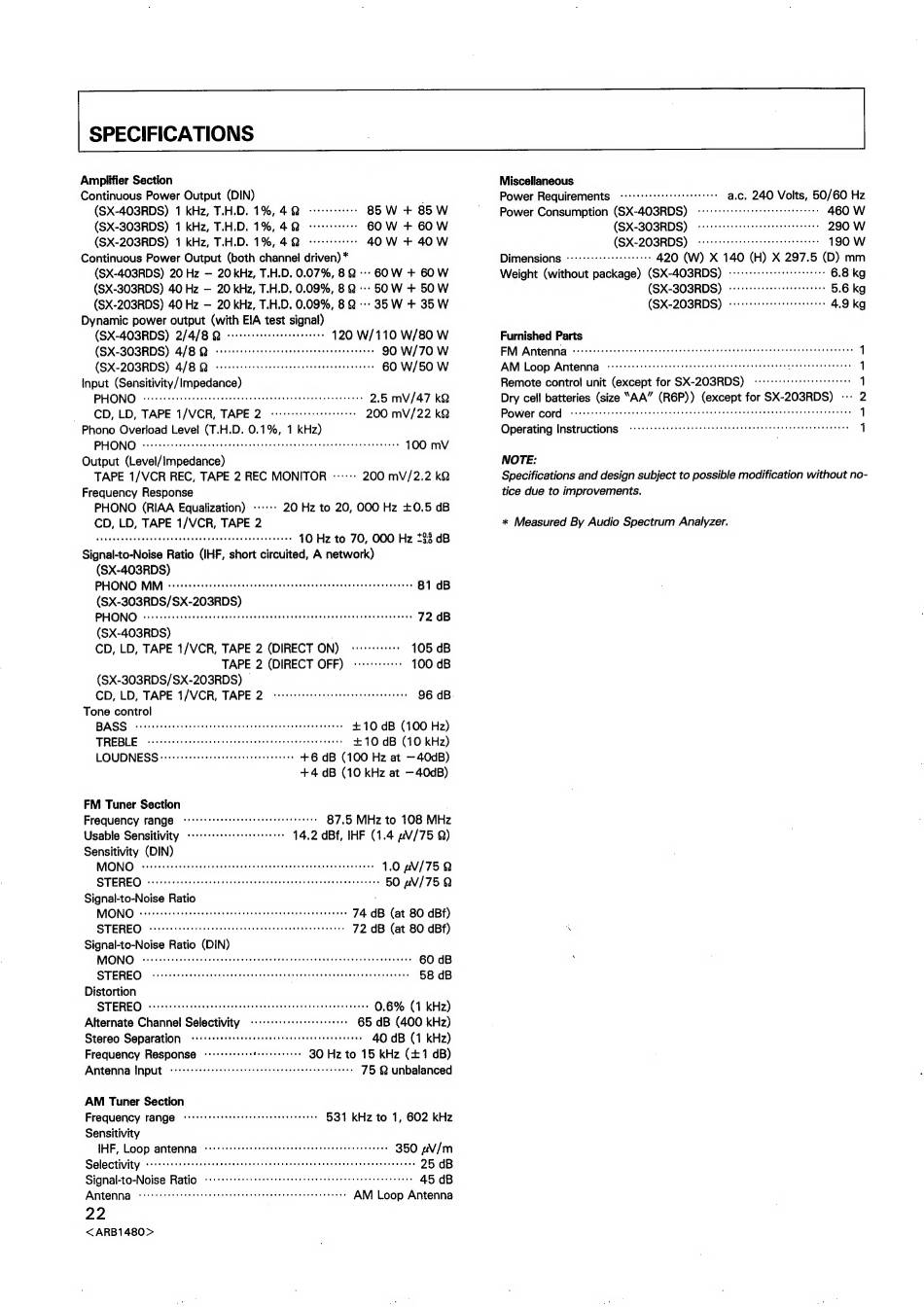

SPECIFICATIONS
Amplifier Section
Continuous Power Output (DIN)
(SX-403RDS) 1 kHz, T.H.D. 1%, 4Q cree 85 W + 85W
(SX-303RDS) 1 kHz, T.H.D. 1%, 4Q cre 60 W + 60 W
(SX-203RDS) 1 kHz, T.H.D. 1%, 42 corre 40W + 40W
Continuous Power Output (both channel driven) *
(SX-403RDS) 20 Hz — 20 kHz, T.H.D. 0.07%, 8 Q --- BOW + GOW
(SX-303RDS) 40 Hz — 20 kHz, T.H.D. 0.09%, 8Q --- 50W + 50W
(SX-203RDS) 40 Hz — 20 kHz, T.H.D. 0.09%, 8 --- 35 W + 35 W
Dynamic power output (with EIA test signal)
(SX-403RDS) 2/4/8 Q vccccrercsesereeeeseees 120 W/110 W/80 W
(SX-BO3RDS) 4/8 Q veers 90 W/70 W
(SX-203RDS) 4/8 Q crccrereeeieeteterettteeeeeeee teens 60 W/50 W
Input (Sensitivity/Impedance)
PHONO crcccccccct ect ett cette renee een ee ene e ena n essen et enes 2.5 mvV/47 kQ
CD, LD, TAPE 1/VCR, TAPE 2. verre 200 mV/22 kQ
Phono Overload Level (T.H.D. 0.1%, 1 kHz)
PHONO eC Ee TRE TOO IOUT ROR Ee a a See rear 100 mV
Output (Level/Impedance)
TAPE 1/VCR REC, TAPE 2 REC MONITOR -:::::: 200 mV/2.2 kQ
Frequency Response
PHONO (RIAA Equalization) --::-: 20 Hz to 20, OOO Hz £0.5 dB
CD, LD, TAPE 1/VCR, TAPE 2
UCT ECT VOC e Te eT iC cere Ce ete erro Ee 10 Hz to 70, 000 Hz aa dB
Signal-to-Noise Ratio (IHF, short circuited, A network)
(SX-403RDS)
PHONO MM SARTRE ER TERRE EREECUM CREE REN ECT eC 81 dB
(SX-303RDS/SX-203RDS)
PHONO PTT Trrrerrrrrrrrrrrrrr rr rr rrr rrrerrrrrer rrr rrr rrr rer rrr rs eee ee 72 dB
(SX-403RDS)
CD, LD, TAPE 1/VCR, TAPE 2 (DIRECT ON) verre 105 dB
TAPE 2 (DIRECT OFF) «+s 100 dB
(SX-303RDS/SX-203RDS) —
CD, LD, TAPE 1/VCR, TAPE 2 vrrsrrrerrstecreseeeseeeeee scene 96 dB.
Tone control
BASS crcceccccectresteteneeeeeneeesnetneer ernest ee enenas +10 dB (100 Hz)
TREBLE PTELERETERETERESERELESESEREE SER E SRE ee + 10 dB (10 kHz)
LOUDNESS weve cece re ren ree nee erenereereees +6 dB (100 Hz at ~ 40dB)
+4 dB (10 kHz at —40dB)
FM Tuner Section
Frequency range crcrcirsrseesseeseereeerertees 87.5 MHz to 108 MHz
Usable Sensitivity ssc eter 14.2 dBf, IHF (1.4 #V/75 Q)
Sensitivity (DIN)
V6) \| © BRR eee 1.0 pV/75 Q
STEREO idea Doel Sica arWieie 6:4 Wiadous' d's oiee Si esele Vis cet wie /eve.8 eae b. HA MENLO ne Cie-ele 50 #N/75 QQ
Signal-to-Noise Ratio
Vie \ SRO eer rer eros 74 dB (at 80 dBf)
STEREO POCUUERELECEEESETESROCSSULE OT See ee 72 dB (at 80 dBf)
Signal-to-Noise Ratio (DIN)
MONO TEORTERTERERELERTERCLERE TEEPE E RET ee Tee eer eee rer eee reer err rere) 60 dB
STEREO POrrerrT rrr rrr rere rere rerrrrer err rrr rr rr errr rrr rere re errr rr re 58 dB
Distortion
STEREO vrtctscssrstseraseensscnseeesseneroensesneenresneens 0.6% (1 kHz)
Alternate Channel Selectivity svete 65 dB (400 kHz)
Stereo Separation cvrrrrccrrstesserteeeseeseeeeeeet ee eenees 40 dB (1 kHz)
Frequency Response -++°++++++ freceenenas 30 Hz to 15 kHz (+1 dB)
Antenna Input Prreeeere rer reer reer re eere ee eee ree ee eer er 75 2 unbalanced
AM Tuner Section
Frequency range vvrrcrrrrsstrcerr eter sees ee eeees 531 kHz to 1, 602 kHz
Sensitivity
IHF, Loop ANTENNA cocccere eect ee etter retest eset nee eeeeeen ees 350 iN/m
Selectivity Sree ere ieee eee Te ee eee ree eee 25 dB
Signal-to-Noise Ratio ACTER ET IOC RE EN RO ee ee me eae Tre a 45 dB
ANt@Nnd cccccr tice etree e ence tee e nee ene enna AM Loop Antenna
22
<ARB1480>
Miscellaneous
Power Requirements cvs a.c. 240 Volts, 50/60 Hz
Power Consumption (SX-403RDS) tet eter e eee seen nn eeteeeres 460 W
(SX-303RDS) cee ee eaten een cress nent eeenes 290 W
(SX-203RDS) GG tied ee dbataen Ss Sak yeR eee as 190 W
Dimensions «71-1110 420 (W) X 140 (H) X 297.5 (D) mm
Weight (without package) (SX-403RDS) «errr 6.8 kg
(SX-303RDS) Seer rrr rrr rrr 5.6 kg
(SX-203RDS) cece eee eneeressereres 49 kg
Furnished Parts
FM Antenna soccer cece teen e eee Eee 1
AM Loop Antenna virrsseerrrreeree iit iii teeter etnies 1
Remote control unit (except for SX-203RDS) oe 1
Dry cell batteries (size "AA" (R6P)) (except for SX-203RDS) --- 2
POWEF COP cocrrr terre etter tte e nett en eet n ence eee teen eens eens ene eeeataaeenes 1
Operating INSTFUCTIONS crrcr crete rte ttre rete terete tee teneeenenens 1
NOTE:
Specifications and design subject to possible modification without no-
tice due to improvements.
* Measured By Audio Spectrum Analyzer.
