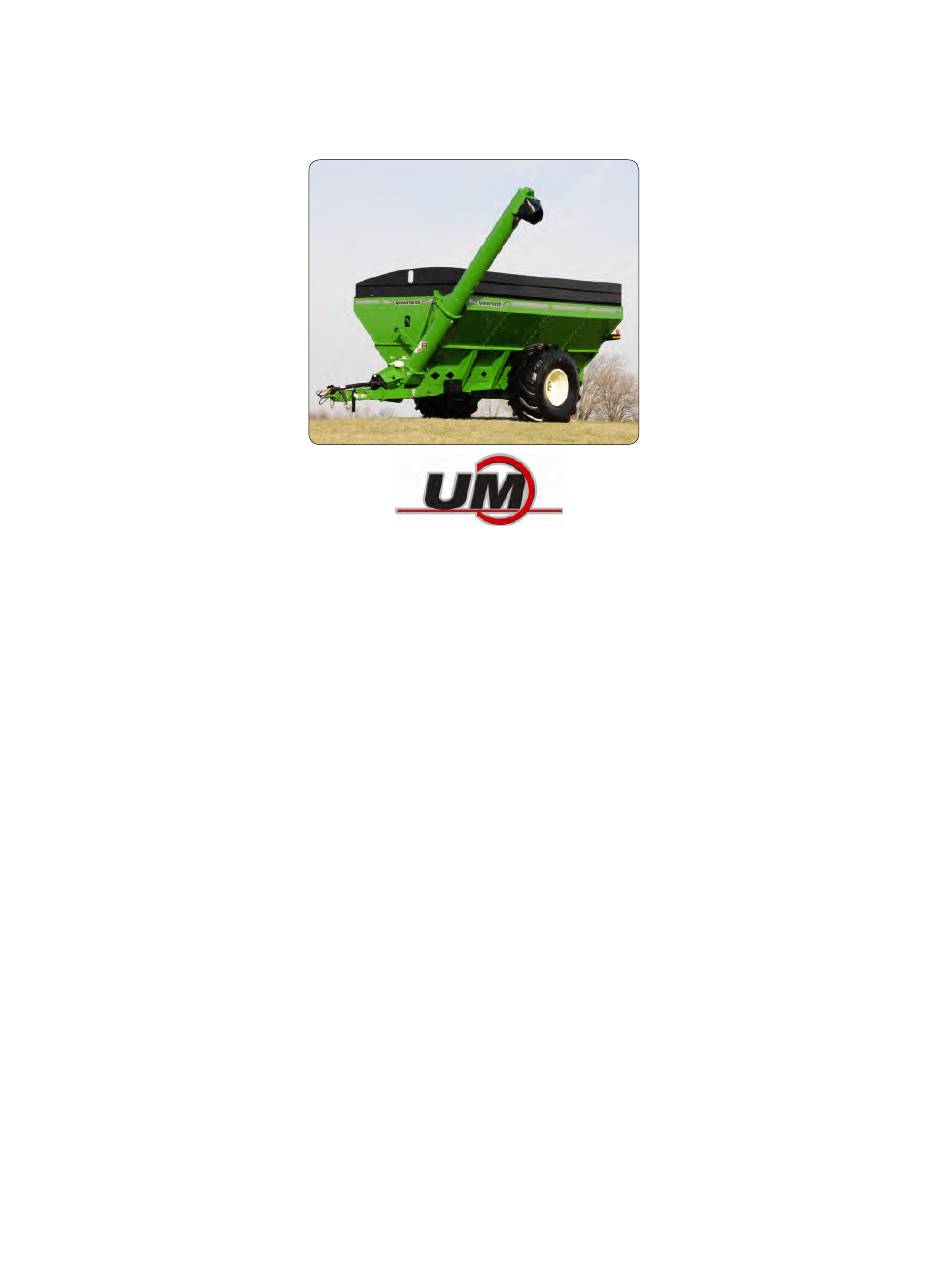

Grain carts dual-auger
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Grain Carts
Dual-Auger Models
830/1138/1242
Beginning With Serial Number D70190100
Part No. 2012223

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 830 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for um 830

Summary of Contents for um 830

  • Page 1 Grain Carts Dual-Auger Models 830/1138/1242 Beginning With Serial Number D70190100 Part No. 2012223...
  • Page 2 GRAIN CARTS — Introduction Foreword Your new GRAIN CART is designed and manufactured to give you years of dependable service. To keep it running efficiently, read the instructions in this operator’s manual. This manual covers operation, service, assembly, and parts for your GRAIN CART. Read and study manual completely before attempting to operate this implement.
  • Page 3 GRAIN CARTS — Introduction Product Information Please fill out and retain this portion for your records. All products manufactured by Unverferth Mfg. Co., Inc. are warranted to be free from material and workmanship defects for one full year from time of consumer delivery. Your local dealer will gladly assist you with any warranty questions. The serial number plate is located as shown below.

  • Page 4: Table Of Contents

    GRAIN CARTS — Introduction Table of Contents SECTION I Safety General Hazard Information ....................... 1-2 Safety Decals ..........................1-3 Follow Safety Instructions ......................1-4 Before Servicing or Operating ....................1-4 During Operation ........................1-5 Before Transporting ........................1-5 During Transport ......................... 1-5 Driveline Safety ..........................
  • Page 5 GRAIN CARTS — Introduction Table of Contents SECTION IV Maintenance Lubrication ..........................4-2 Seasonal Storage ........................4-3 U-Joints ............................4-4 Tires/Wheels ..........................4-4 Drive Train Inspection ........................ 4-5 Drive Sprockets .......................... 4-5 Indicator Arm ..........................4-6 Flow Control Gates ........................4-7 Chain Tightener Bracket ......................
  • Page 6 Optional Lights (Bundle #2005425B) ....................5-49 Weather Guard End Cap and Tarp Bow Components ..............5-50 Weather Guard Less End Caps and Tarp Bows Components - Model 830 .......5-52 Weather Guard Less End Caps and Tarp Bows Components - Models 1138 & 1242 .....5-54...
  • Page 7 — Safety GRAIN CARTS SECTION I Safety General Hazard Information ....................... 1-2 Safety Decals ..........................1-3 Follow Safety Instructions ......................1-4 Before Servicing or Operating ....................1-4 During Operation ........................1-5 Before Transporting ........................1-5 During Transport ......................... 1-5 Driveline Safety .......................... 1-6 Pressurized Oil ...........................

  • Page 8: Safety

    — Safety GRAIN CARTS General Hazard Information No accident-prevention program can be successful without the wholehearted cooperation of the person who is directly responsible for the operation of the equipment. A large number of accidents can be prevented only by the operator anticipating the result before the accident is caused and doing something about it.

  • Page 9: Safety Decals

    — Safety GRAIN CARTS Safety Decals Part No. 9003474 Part No. 98279 Part No. 9003478 Part No. 95046 Part No. 9003476 Part No. 93552 Part No. TA1-906109-0 Part No. 98229 Part No. 95839 Part No. 97961 Part No. 93551 Part No. 97575 Part No.

  • Page 10: Follow Safety Instructions

    — Safety GRAIN CARTS Follow Safety Instructions • Read and understand this operator’s manual before operating. • All machinery should be operated only by trained and authorized personnel. • To prevent machine damage, use only attachments and service parts approved by the manufacturer. •...

  • Page 11: During Operation

    — Safety GRAIN CARTS During Operation • Regulate speed to field conditions. Maintain complete control at all times. • Never service or lubricate equipment when in operation. • Keep away from overhead power lines. Electrical shock can cause serious injury or death. •...

  • Page 12: Driveline Safety

    — Safety GRAIN CARTS Driveline Safety • Do not allow children near equipment that is running or engaged. • Do not exceed 1000 rpm PTO speed. • Disengage the PTO, stop the tractor engine, and remove key from ignition before making inspections, or performing maintenance and repairs.

  • Page 13: Pressurized Oil

    — Safety GRAIN CARTS Pressurized Oil • Relieve the hydraulic system of all pressure before adjusting or servicing. See hydraulic power unit manual for procedure to relieve pressure. • High-pressure fluids can penetrate the skin and cause serious injury or death. Leaks of high-pressure fluids may not be visible.

  • Page 14: Preparing For Emergencies

    — Safety GRAIN CARTS Preparing for Emergencies • Keep a first aid kit and properly rated fire extinguisher nearby. • Keep emergency numbers for fire, rescue, and poison control personnel near the phone. Wearing Protective Equipment • Wear clothing and personal protective equipment appropriate for the job. •...

  • Page 15: Set Up

    — Set Up GRAIN CARTS SECTION II Set Up Hitch Installation ........................2-2 Auger Rest Stand Set Up ......................2-3 Wheels/Tire Set Up ........................2-4 Coupling PTO Driveshaft ......................2-4 FOR SCALE INFORMATION, PLEASE REFER TO YOUR SCALE MANUAL.

  • Page 16: Hitch Installation

    — Set Up GRAIN CARTS Hitch Installation 1. STANDARD HITCH 91299-195 Insert hitch into frame weldment and secure using coupler (102586B) and 1”-8 x 6” capscrew (91299-195), 1” lockwasher (9404- 102586B 041), and 1”-8 hex nut (9394-020). FIG. 2-1 Optional Clevis Hitch 102589B 9404-041 91299-195...

  • Page 17: Auger Rest Stand Set Up

    — Set Up GRAIN CARTS Auger Rest Stand Set Up 1. Attach the auger rest stand weldment (2011827B) with rubber bumpers (97896 to the auger tube lower assembly with three 1/2”-13UNC x 4” capscrews (9390-111) and 1/2”-13UNC elastic lock nuts (9398-016). (FIG. 2-3) FIG.

  • Page 18: Wheels/Tire Set Up

    — Set Up GRAIN CARTS Wheel/Tire Set Up Tire Pressure Tire pressure must be verified before first use and adjusted as necessary. Refer to maintenance section of this manual for information on tire pressure. Wheel Nuts • IMPROPERLY TORQUED WHEEL NUTS/BOLTS CAN CAUSE A LOSS OF IMPLEMENT CONTROL AND MACHINE DAMAGE.

  • Page 19: For Scale Information, Please Refer To Your Scale Manual

    — Operation GRAIN CARTS SECTION III Operation Electrical Hook-Up ........................3-2 Tractor Hook-Up ......................... 3-2 Transport Chain Connection ....................3-3 Jack ............................3-4 Hydraulic Hook-Up ........................3-4 Operation In Field ........................3-5 Weather Guard Tarp Operation ....................3-6 Operating Chain Oiler ........................ 3-7 FOR SCALE INFORMATION, PLEASE REFER TO YOUR SCALE MANUAL.

  • Page 20: Electrical Hook-Up

    — Operation GRAIN CARTS Electrical Hook-Up Your Grain Cart has the option of being supplied FIG. 3-1 with a 7-way SAE connector plug, which will adapt to the receptacle found on most tractors on the market today. If not available, an SAE J560 7-way outlet socket can be purchased from your Unverferth dealer (order #92824).

  • Page 21: Transport Chain Connection

    — Operation GRAIN CARTS Tractor Hook-Up (Continued) Transport Chain Connection • ALWAYS USE THE TRANSPORT CHAIN WHEN TRANSPORTING IMPLEMENTS. FAILURE TO DO SO COULD CAUSE PERSONAL INjURY OR DAMAGE IF THE IMPLEMENTS BE- COME DISENGAGED. • REPLACE THE TRANSPORT CHAIN IF ANY LINK OR END FITTING IS BROKEN, STRETCHED OR DAMAGED.

  • Page 22: Jack

    — Operation GRAIN CARTS Jack Use jack to support an empty grain cart, never FIG. 3-4 a loaded grain cart...always have a loaded grain cart hooked to tractor. Remove jack from storage on left-hand side of the frame and Storage Position install on mounting stud behind hitch.

  • Page 23: Operation In Field

    — Operation GRAIN CARTS Operation in Field • ELECTROCUTION WILL CAUSE SERIOUS INjURY OR DEATH. THE GRAIN CART IS NOT INSULATED. KEEP AWAY FROM ALL ELECTRICAL LINES AND DEVICES. ELECTROCU- TION CAN OCCUR WITHOUT DIRECT CONTACT. 1. Make sure the flow control door is in the closed Flow Control Indicator position before loading into the cart.

  • Page 24: Weather Guard Tarp Operation

    — Operation GRAIN CARTS Weather Guard Tarp Operation Always use adequate caution when operating tarp. If tarp is covered with snow, it is important to remove snow before operating. End caps must be free from grain that may be piled on them. Grain should not be heaped higher than end caps.

  • Page 25: Operating Chain Oiler

    — Operation GRAIN CARTS Operating Chain Oiler #23250 • MOVING OR ROTATING COMPONENTS CAN CAUSE SERIUS INjURY OR DEATH. ALWAYS DISCONNECT THE POWER SOURCE BEFORE SERVICING. ENSURE THE SERVICE COV- ERS, CHAIN/BELT COVERS AND CLEAN-OUT DOOR(S) ARE IN PLACE AND SECURELY FASTENED BEFORE OPERATING THE MACHINE.
  • Page 26 — Operation GRAIN CARTS Notes...

  • Page 27: For Scale Information, Please Refer To Your Scale Manual

    — Maintenance GRAIN CARTS SECTION IV Maintenance Lubrication ..........................4-2 Seasonal Storage ........................4-3 U-Joints ............................4-4 Tires/Wheels ..........................4-4 Drive Train Inspection ........................ 4-5 Drive Sprockets .......................... 4-5 Indicator Arm ..........................4-6 Flow Control Gates ........................4-7 Chain Tightener Bracket ......................4-7 PTO Shear-Bolt Clutch ......................

  • Page 28: Lubrication

    — Maintenance GRAIN CARTS Lubrication To keep your grain cart in top operating condition and to assure its proper performance and reliability for a long period of time, a periodic inspection and lubrication is a must. DESCRIPTION ITEM DESCRIPTION ITEM Linkage Pivot Cart Pivot, Rear (1 Shot Daily) Hinge Tube...

  • Page 29: Seasonal Storage

    — Maintenance GRAIN CARTS Seasonal Storage Always open flow door and auger cleanout doors to remove any remaining grain and to allow moisture to dry. Wash machine inside and out before storing to remove dirt and debris that can draw and collect moisture.

  • Page 30: U-Joints

    — Maintenance GRAIN CARTS U-Joints The U-joint will give you many years of service if grease is applied to each joint and spline weekly. For maximum gearbox life: -- Check oil level every week -- Replace oil every season, fill to fluid level or 1 liter (2 pints) 90 weight oil Tires/Wheels Check tire pressures and maintain at recommended values listed in the MAINTENANCE section of this manual.

  • Page 31: Drive Train Inspection

    — Maintenance GRAIN CARTS Drive Train Inspection To insure long life and dependable service from your grain cart, the drivetrain should be inspected after the first 5 loads, at the beginning of each season and after every 25 loads or annually thereafter, whichever comes first. Remove inspection cover and proceed as follows: - Make a general inspection of drivetrain looking for loose hardware.

  • Page 32: Indicator Arm

    — Maintenance GRAIN CARTS Drive Sprockets (Continued) Hole Configuration of Drive Sprocket REMOVAL 1. Remove all set or cap screws. 2. Insert set or cap screw in hole indicated by on diagram. Loosen bushing by tightening set or cap screw. OM02512 INSTALLATION 1.

  • Page 33: Flow Control Gates

    — Maintenance GRAIN CARTS Flow Control Gates Flow Control Indicator The Flow Control Gates are designed to prevent grain from putting an excess load on the horizontal auger during initial start-up. If gates are not working properly check: -- each pivot, on each end of gate, for wear or tightness.

  • Page 34: Pto Shear-Bolt Clutch

    — Maintenance GRAIN CARTS PTO Shear Bolt Clutch • Use a genuine OEM replacement shear bolt to ensure that the shear function does not occur too soon causing inconvenience or too late resulting in damage to driveline and auger components, see “Driveline Components”. FIG.

  • Page 35: Coupling The Pto Drive Shaft

    — Maintenance GRAIN CARTS PTO Shaft & Clutch (Optional) (Continued) Coupling The PTO Drive Shaft (Figs. E1-E2) Clean and grease the PTO and implement input connection (IIC) AS-Lock 1. Pull locking collar and simultaneously push PTO drive shaft onto PTO shaft until the locking device engages.

  • Page 36: Chains

    — Maintenance GRAIN CARTS PTO Shaft & Clutch (Optional) (Continued) Chains (Figs. G1-G3) NOTE: The chain is intended to prevent the shield from rotating against non-moving parts and thereby preventing shield damage. properly installed chain will increase the service life of the shield. 1.

  • Page 37: To Dismantle Guard

    — Maintenance GRAIN CARTS PTO Shaft & Clutch (Optional) (Continued) To Dismantle Guard Figs. (J1-J4) 1. Remove locking screw. 2. Align bearing tabs with cone pockets. 3. Remove half-guard. 4. Remove bearing ring. To Assemble Guards Figs. (K1-K5) 1. Grease yoke groove and inner profile tube. 2.

  • Page 38: To Assemble Cone

    — Maintenance GRAIN CARTS PTO Shaft & Clutch (Optional) (Continued) To Assemble Cone Figs. (L1-L3) 1. Dismantle guard (Figs. J1 - J3). Remove old cone (e.g. cut open with knife). Take off chain. Place neck of new cone in hot water (approx 80°...

  • Page 39: Auger Maintenance

    — Maintenance GRAIN CARTS Auger Maintenance Horizontal Auger Annually check all bolts, nuts, and set screws. Perform lubrication as specified. Vertical Auger Annually check all bolts, nuts and set screws. FIG. 4-6 Perform lubrication as specified. NOTE: The lower auger position is indexed from the drive dog/tube flange hinge surface, as shown.

  • Page 40: Auger Chain Drive

    — Maintenance GRAIN CARTS Auger Maintenance (Continued) Auger Chain Drive Annually check all bolts, nuts, and set screws. Perform lubrication as specified in Lubrication chart. FIG. 4-7 Drive Sprockets Gearbox PTO Assembly Horizontal Idler Arm Assembly Vertical Idler Arm Assembly Roller Chains 4-14...
  • Page 41 — Maintenance GRAIN CARTS Optional Electronic Scale Troubleshooting If you experience problems in the operation of your system, read through these trouble- shooting steps and perform those which are appropriate. This information may help you to correct the following operational difficulties without further dealer assistance or returning the unit for repair.
  • Page 42 — Maintenance GRAIN CARTS Optional Electronic Scale Troubleshooting (Continued) Indicator Lock-Up A locked up indicator is represented by an Err (error) display message. Test the weigh bar cables to isolate the source of the lock up problem, as follows: 1. Disconnect all weigh bars. 2.
  • Page 43 — Maintenance GRAIN CARTS Optional Electronic Scale Troubleshooting (Continued) Compare Weight Readings for All Weigh Bars as follows: Position a person or heavy object on the platform above each weigh bar, one bar at a time, and compare weight readings for the same person or same object. For each weighing, the weight itself will be off-center, favoring a single Weigh Bar, therefore, none of the readings will be accurate.

  • Page 44: Wheel, Hub And Spindle Disassembly And Assembly

    — Maintenance GRAIN CARTS Wheel, Hub and Spindle Disassembly and Assembly • TIPPING OR MOVEMENT OF THE MACHINE CAN CAUSE SERIOUS INjURY OR DEATH. BE SURE MACHINE IS SECURELY BLOCKED. • FALLING OBjECTS CAN CAUSE SERIOUS INjURY OR DEATH. DO NOT WORK UNDER THE MACHINE AT ANY TIME WHILE BEING HOISTED.
  • Page 45 — Maintenance GRAIN CARTS Wheel, Hub and Spindle Disassembly and Assembly (continued) 5. Inspect the spindle and replace if necessary. If spindle does not need to be replaced, skip to Step 6; otherwise continue with Step 5. Remove the bolt and lock nut that retains the spindle to the axle. Using a lifting device rated for 100 kg.

  • Page 46: Wheels And Tires

    — Maintenance GRAIN CARTS Wheels and Tires Wheel Nut Torque Requirements • IMPROPERLY TORQUED WHEEL NUTS/BOLTS CAN CAUSE A LOSS OF IMPLEMENT CONTROL AND MACHINE DAMAGE. TORQUE WHEEL NUTS/BOLTS TO VALUES IN TABLE. CHECK TORQUE BEFORE USE, AFTER ONE HOUR OF UNLOADED USE OR AFTER FIRST LOAD, AND EACH LOAD UNTIL WHEEL NUTS/BOLTS MAINTAIN TORQUE VALUE.

  • Page 47: Tire Warranty

    — Maintenance GRAIN CARTS Wheels and Tires (Continued) Tire Warranty For questions regarding new tire warranty, please contact your local original equipment tire dealer. Used tires carry no warranty. Following are phone numbers and Websites for your convenience: Continental/Mitas www.mitas-tyres.com/international/ Phone +420 267 111 550 Fax +420 271 750 214 Continental/Mitas...

  • Page 48: Complete Torque Chart

    — Maintenance GRAIN CARTS Complete Torque Chart Capscrews - Grade 5 NOTE: • Grade 5 capscrews can be identified by three radial dashes on the head. • For wheel torque requirements, refer to Wheels and Tires. • Tighten U-bolts to have the same number of threads exposed on each end. FOOT NEWTON SIZE...
  • Page 49 — Maintenance GRAIN CARTS Hydraulic Fittings – Torque and Installation Tightening O-Ring Fittings 1. Inspect components damage FIG. 4-7 O-Ring fittings contamination. Do not connect any other type of fitting to an O-ring fitting. 2. For adjustable fittings, insure the jam nut and washer are fully backed up.

  • Page 50: Hydraulic Fittings

    — Maintenance GRAIN CARTS Hydraulic Fittings – Torque and Installation (continued) Tightening JIC Fittings 1. Inspect all components for damage or contamination. FIG. 4-10 Do not connect any other type of fitting to a JIC fitting. JIC fittings Lubricate the threads. Turn the fitting into the port until it bottoms out.
  • Page 51 — Maintenance GRAIN CARTS Electrical System Diagram — Overall Right-Hand Side 2-Pin Extension #2004282 Tail Light RH Assembly #2001083B 3-Pin Extension #22987 To Tractor Rear Wiring Harness Front Wiring Harness #22983 #22790 3-Pin Extension #22987 Auger Wiring Harness #23165 Tail Light LH Assembly #2001084B Left-Hand Side...
  • Page 52 — Maintenance GRAIN CARTS Electrical Diagram — Front Wiring Harness #22983 4-26...
  • Page 53 — Maintenance GRAIN CARTS Electrical Diagram — Rear Wiring Harness #22790 4-27...
  • Page 54 — Maintenance GRAIN CARTS Electrical Diagram — Auger Light Wiring Harness #23165 4-28...
  • Page 55 — Maintenance GRAIN CARTS Electrical Diagram — 3 Pin Wiring Harness #22987 REFER TO INDIVIDUAL COMPONENT PRINTS FOR SPECIFICATIONS. Electrical Diagram — Wiring Harness Extension #2004282 GROUND [BLACK] 14 GA POWER [RED] 14 GA NOTES: 1/2 UNBRAIDED 1. WIRE: AUTOMOTIVE PRIMARY WIRE (SAE J1128-GPT) OR EQUIVALENT 2.
  • Page 56 — Maintenance GRAIN CARTS Electrical Diagram — Red Tail/Turn Light #9006282 Electrical Diagram — Amber Lamp Double Face #9005142 4-30...
  • Page 57 Optional Lights (Bundle #2005425B) ....................5-49 Weather Guard End Cap and Tarp Bow Components ..............5-50 Weather Guard Less End Caps and Tarp Bows Components - Model 830 .......5-52 Weather Guard Less End Caps and Tarp Bows Components - Models 1138 & 1242 .....5-54...

  • Page 58: Hitch Components

    — Parts GRAIN CARTS Hitch Components ITEM PART NUMBER DESCRIPTION NOTES 102586B Hitch Coupler =Black= 102589B Optional Non-Scale Unit Clevis Hitch Weldment =Black= 103641B Non-Scale Unit Spade Hitch Weldment =Black= 2004980G Service A-Frame Weldment with Decals =Green= Includes Items 5 through 8 2004980R Service A-Frame Weldment with Decals =Red= 94094...

  • Page 59: Touch-Up Paint

    — Parts GRAIN CARTS Touch-Up Paint SPRAY PAINT COLOR TOUCH-UP PAINT 97301 Green 97015 Off-White 97016 Black 97013 Toolbox ITEM PART NUMBER DESCRIPTION NOTES 2005025B Toolbox Mounting Plate 9005850 Toolbox / Storage Box 91263 Large Flange Nut, 3/8”-16UNC 9390-006 Capscrew, 1/4”-20UNC x 1 1/4” Gr.5 9405-064 Flat Washer, 1/4”...

  • Page 60: Decals

    — Parts GRAIN CARTS Decals...
  • Page 61 Decals ITEM PART NUMBER DESCRIPTION NOTES 9003127 Reflector 2 x 9 =AMBER= 9501639 Decal, UM Logo 9501640 Decal, UM Stripe (5 1/4 x 56 1/2) 901833 Decal, UM Circle 9503589 Decal, 830 9502331 Decal, 1138 9503590 Decal, 1242 23382 Decal, IMPORTANT (Ladder)

  • Page 62: Auger Lift Hydraulic Components

    — Parts GRAIN CARTS Auger Lift Hydraulic Components ITEM PART NUMBER DESCRIPTION NOTES 23067 Pin 1” Dia. x 5 3/4” 85632 Pin 1” Dia. x 3 3/4” 900034 Adapter 9/16-18 JIC Male x 9/16-18 O-Ring Male w/Restrictor 9003997 Sleeve - Hose Marker GREEN (Auger Raise) 9003998 Sleeve - Hose Marker GREEN (Auger Lower) 9006780...

  • Page 63: Flow Door Hydraulic Components

    — Parts GRAIN CARTS Flow Door Hydraulic Components ITEM PART NUMBER DESCRIPTION NOTES 24607 Pin 1” Dia. x 5 1/8” 85632 Pin 1” Dia. x 3 3/4” 9003995 Sleeve - Hose Marker RED (Flow Door Open) 9003996 Sleeve - Hose Marker RED (Flow Door Close) 901047 Cylinder 3 x 14 91383...

  • Page 64: Spout Hydraulic Components

    — Parts GRAIN CARTS Spout Hydraulic Components ITEM PART NUMBER DESCRIPTION NOTES 9002032 Clevis Pin 3/4” Dia. x 2” 9003789 Cylinder 1 1/2 x 4 (3000 PSI) 9004637 Hose 1/4” Dia. x 430” 9004638 Hose 1/4” Dia. x 440” 91383 Male Tip Coupling 91511 Dust Cap...

  • Page 65: Driveline Components With Shear Bolts

    — Parts GRAIN CARTS Driveline Components with Shear Bolts ITEM PART NUMBER DESCRIPTION NOTES 9002608 Yoke 1 3/4-20 Standard 9002684 Yoke 1 3/8-21 Optional 92529 Cross & Bearing Kit 9002609 Spring Pin 10 x 80 9002610 Inboard Yoke 900134 Inner Profile 900135 Outer Profile 9002613...

  • Page 66: Driveline Components With Over-Running Clutch Shear Bolts

    — Parts GRAIN CARTS Driveline Components with Over-Running Clutch Shear Bolts 5-10...
  • Page 67 — Parts GRAIN CARTS Driveline Components with Over-Running Clutch Shear Bolts ITEM PART NUMBER DESCRIPTION NOTES 9504668 PTO Assembly/Over-Running Clutch/Shear-Bolt) Includes Items 2 & 14 9504661 PTO Drive Shaft Assembly/Front Half Includes Items 3 through 13 92529 Cross & Bearing Kit 9002610 Inboard Yoke 9002609...

  • Page 68: Chain Oiler Components

    — Parts GRAIN CARTS Chain Oiler Components Weld Stud Weld Stud ITEM PART NUMBER DESCRIPTION NOTES 9501778 Oil Reservoir Tank - 2 Quart with Cap 97420 Flange Screw, 1/4”-20UNC x 3/4” Gr.5 97063 Hose Clip for 3/8” OD Tubing 98134 90°...

  • Page 69: Auger Housing Components

    — Parts GRAIN CARTS Auger Housing Components ITEM PART NUMBER DESCRIPTION NOTES 2001446B Cover Plate =Black= 23106B Plate 13 3/8” x 19” =Black= 23380G Shield Weldment =Green= 23380R Shield Weldment =Red= 23378B Hinge Weldment =Black= 91256 Flange Screw, 5/16”-18UNC x 3/4” Gr.5 91257 Large Flange Hex Nut, 5/16”-18UNC Gr.5 24640B...

  • Page 70: Lower Vertical Auger Tube & Flighting Components

    — Parts GRAIN CARTS Lower Vertical Auger Tube & Flighting Components ITEM PART NUMBER DESCRIPTION NOTES 23081B Bearing Weldment with Bronze Bearing =Black= 9001198 Bronze Bearing 9390-133 Capscrew, 5/8”-11UNC x 4 1/2” Gr.5 9801 Locknut, 5/8’-11UNC 9390-056 Capscrew, 3/8”-16UNC x 1 1/4” Gr.5 9405-076 Flat Washer, 3/8”...

  • Page 71: Vertical Auger Tube Linkage & Hydraulic Components

    — Parts GRAIN CARTS Vertical Auger Tube Linkage & Hydraulic Components ITEM PART NUMBER DESCRIPTION NOTES 23047B Link Weldment =Black= w/Grease Zerk 91160 Grease Zerk 23049B Link Weldment =Black= w/Grease Zerk 91160 Grease Zerk 23063 Pin 1 1/2” Dia. x 20 9/16” 23064 Pin 1”...

  • Page 72: Vertical Auger Tube Bracing Components

    — Parts GRAIN CARTS Vertical Auger Tube Bracing Components ITEM PART NUMBER DESCRIPTION NOTES 2004696B Tie Rod Weldment =Black= 2004711B Auger Brace Weldment =Black= 902703-056 Flat Head Socket, 5/8”-11UNC x 2 1/2” 9390-102 Capscrew, 1/2”-13UNC x 1 3/4” Gr.5 9398-019 Elastic Locknut, 5/8”-11UNC 9800 Locknut/Top, 1/2”-13UNC...

  • Page 73: Upper Vertical Auger Tube & Flighting Components

    — Parts GRAIN CARTS Upper Vertical Auger Tube & Flighting Components ITEM PART NUMBER DESCRIPTION NOTES 9800 Locknut, 1/2”-13UNC 97382 Flange Bearing Assembly 4 Bolt 1 3/4” Bore w/Seal & Setscrews 91160 Grease Zerk 9405-088 Flat Washer, 1/2” USS 2011809G Auger Tube Weldment =Green= 2011809R Auger Tube Weldment =Red=...

  • Page 74: Chain Drive - Horizontal Components

    — Parts GRAIN CARTS Chain Drive - Horizontal Components 5-18...
  • Page 75 — Parts GRAIN CARTS Chain Drive - Horizontal Components ITEM PART NUMBER DESCRIPTION NOTES 9390-051 Capscrew, 3/8”-16UNC x 1/2” G5 9404-021 Lock Washer, 3/8” 97382 Flange Bearing Assembly, 4 Bolt 1 3/4” Bore 9390-101 Capscrew, 1/2”-13UNC x 1 1/2” G5 9404-025 Lock Washer, 1/2”...

  • Page 76: Chain Drive - Vertical Components

    — Parts GRAIN CARTS Chain Drive - Vertical Components 5-20...
  • Page 77 — Parts GRAIN CARTS Chain Drive - Vertical Components ITEM PART NUMBER DESCRIPTION NOTES 9390-043 Capscrew, 5/16”-18UNC x 4 1/2” G5 9390-154 Capscrew, 3/4”-10UNC x 4 1/2” G5 9802 Locknut/Top, 3/4”-10UNC 98136 Grommet, 1/2” Dia. Groove, 3/8” ID 9807 Locknut/Top, 5/16”-18UNC 9800 Locknut/Top, 1/2”-13UNC 98116...

  • Page 78: Gearbox

    — Parts GRAIN CARTS Gearbox ITEM PART NUMBER DESCRIPTION NOTES 900220 Housing 900221 Cap, Thru 900222 Cap, Cantilvrd 900223 Gear, 22T 900224 Shaft w/Keyway 900225 Shaft w/Spline 900226 Bearing Cup 900227 Bearing Cone 900228 Seal 3N2413C 900229 Seal 3N2410C 900230 Gasket, 0.1mm 900231 Gasket, 0.2mm...

  • Page 79: Downspout

    — Parts GRAIN CARTS Downspout ITEM PART NUMBER DESCRIPTION NOTES 9001438 Rubber Hood 9405-066 Flat Washer, 1/4” 903174-537 Truss Head, Phillips Screw, 1/4”-20UNC x 1” 106906 Spout Strap 97189 Large Flange Nut, 1/4”-20UNC 5-23...

  • Page 80: Optional Hydraulic Adjustable Spout

    — Parts GRAIN CARTS Optional Hydraulic Adjustable Spout 5-24...
  • Page 81 — Parts GRAIN CARTS Optional Hydraulic Adjustable Spout ITEM PART NUMBER DESCRIPTION NOTES 24391 Adjustable Hydraulic Spout 24390B Adjustable Spout Assembly =Black= 24385B Shroud Weldment =Black= 24387B Spout Weldment =Black= 281368 Arm Link Plate 281369 Bushing, 3/4” Dia. 281372 Bushing, 9/16” Dia. 281377B Upper Deflector Weldment =Black= 281389...
  • Page 82 — Parts GRAIN CARTS Indicator Compoents ITEM PART NUMBER DESCRIPTION NOTES 91257 Large Flange Hex Nut, 5/16”-18UNC 24644B Indicator Weldment =Black= 9928 Locknut, 3/8”-16UNC 9390-057 Capscrew, 3/8”-16UNC x 1 1/2” Gr.5 24640B Cover Assembly =Black= w/Gate Position Decal 24641 Gate Position Decal 24637B Gate Rod/Bar =Black= 9390-059...

  • Page 83: Gate Linkage Components

    — Parts GRAIN CARTS Gate Linkage Components ITEM PART NUMBER DESCRIPTION NOTES 91262 Flange Screw, 3/8”-16UNC x 1” Gr.5 24489B Gate Linkage Weldment =Black= 24607 Pin, 1” Dia. x 5 1/8” 9391-046 Cotter Pin, 3/16” Dia. x 2” 9876 90° Elbow 9/16-18 JIC Male x 9/16-18 JIC Female 901047 Hydraulic Cylinder 3 x 14 98660...

  • Page 84: Screen Components

    — Parts GRAIN CARTS Screen Components ITEM PART NUMBER DESCRIPTION NOTES 24586B Screen/Grate Weldment =Black= 91262 Flange Screw, 3/8”-16UNC x 1” Gr.5 23653B Strap =Black= 5-28...

  • Page 85: Baffle And Tent Components

    — Parts GRAIN CARTS Baffle and Tent Components REAR FRONT ITEM PART NUMBER DESCRIPTION NOTES 91262 Flange Screw, 3/8”-16UNC x 1” 24474B Cover =Black= 24480B Gate Weldment Left-Hand =Black= 24605B Gate Weldment Right-Hand =Black= 9388-053 Carriage Bolt, 3/8”-16UNC x 1 1/2” G5 271045 Door Tube, Bushing 9928...

  • Page 86: Horizontal Auger Components

    — Parts GRAIN CARTS Horizontal Auger Components ITEM 100775 23559 23560 91160 91299-133 9801 98221 98222 98223 23580 23579 23581 24068 9390-123 9390-124 9405-100 9801 98146 98222 ITEM PART NUMBER DESCRIPTION NOTES 100775 Key, 3/8” x 3/8” x 2” 23559B Flight Weldment LH 14”...

  • Page 87: Horizontal Auger Rear Exterior Components

    — Parts GRAIN CARTS Horizontal Auger Rear Exterior Components ITEM PART NUMBER DESCRIPTION NOTES 23638B Cover =Black= 9395-010 Hex Jam Nut, 1/2”-13UNC Back Plate 97382 Flange Bearing Assembly 4-Bolt 9390-102 Capscrew, 1/2”-13UNC x 1 3/4” Gr.5 91262 Flange Screw, 3/8”-16UNC x 1” Gr.5 23560B Horizontal Flighting Weldment =Black= 5-31...

  • Page 88: Cleanout Door Components

    — Parts GRAIN CARTS Cleanout Door Components 5-32...
  • Page 89 — Parts GRAIN CARTS Cleanout Door Components ITEM PART NUMBER DESCRIPTION NOTES 2011846B Rear Link Arm Weldment =Black= 2011852B Front Link Arm Weldment =Black= 2011853B Cleanout Door Linkage Plate =Black= 2011966B Cleanout Door Assembly =Black= Includes Items 5-9 2011845B Cleanout Door Weldment =Black= 9405-070 Flat Washer, 5/16”...

  • Page 90: Front Upper Panel Components

    — Parts GRAIN CARTS Front Upper Panel Components ITEM PART NUMBER DESCRIPTION NOTES 2004552G Panel Corner Angle Brace =Green= Front, Right-Hand Side & Rear, Left-Hand Side 2004552R Panel Corner Angle Brace =Red= 2004553G Panel Corner Angle Brace =Green= Front, Left-Hand Side & Rear, Right-Hand Side 2004553R Panel Corner Angle Brace =Red= 2004993G...

  • Page 91: Upper Left-Front & Right-Rear Side Panel Components

    — Parts GRAIN CARTS Upper Left-Front & Right-Rear Side Panel Components ITEM PART NUMBER DESCRIPTION NOTES 2004991G Left-Front & Right-Rear Upper Side Panel =Green= Includes Items 2 through 4 2004991R Left-Front & Right-Rear Upper Side Panel =Red= 9501639 Decal, UNVERFERTH (5 1/4” x 56 1/2”) 9501640 Decal, Stripe (5 1/4”...

  • Page 92: Upper Right-Front & Left-Rear Side Panel Components

    Upper Right-Front & Left-Rear Side Panel Components ITEM PART NUMBER DESCRIPTION NOTES 2010466G 830, Right-Front & Left-Rear Upper Side Panel =Green= 2010466R 830, Right-Front & Left-Rear Upper Side Panel =Red= 2005526G 1138, Right-Front & Left-Rear Upper Side Panel =Green= Includes Items 2 through 4 2005526R 1138, Right-Front &...

  • Page 93: Rear Upper Panel Components

    Includes Items 4 through 6 2004992R Rear Upper Panel =Red= 9501640 Decal, Stripe (5 1/4” x 56 1/2”) 9501639 Decal, UNVERFERTH (5 1/4” x 56 1/2”) 901833 Decal, UM Logo 91262 Flange Screw, 3/8”-16UNC x 1” 91263 Large Flange Nut, 3/8”-16UNC 2004858B Bracket 5-37...

  • Page 94: Ladder Components

    — Parts GRAIN CARTS Ladder Components ITEM PART NUMBER DESCRIPTION NOTES 24873B Ladder Assembly Includes Items 1 through 7 9928 Locknut, 3/8”-16UNC 9390-060 Capscrew, 3/8”-16UNC x 2 1/4” Gr.5 97604 Flange Screw, 5/16”-18UNC x 1” Gr.5 91257 Large Flange Nut, 5/16”-18UNC 25458B Ladder Weldment 25457B...

  • Page 95: Upper Side Panel Support Components

    — Parts GRAIN CARTS Upper Side Panel Support Components ITEM PART NUMBER DESCRIPTION NOTES 2004995G Center Panel Support Bracket =Green= 2004995R Center Panel Support Bracket =Red= Panel Support Bracket =Black= 2005001B For Front, Left-Hand Side & Rear, Right-Hand Side of Cart Panel Support Bracket =Black= 2005003B For Front, Right-Hand Side &...

  • Page 96: Front & Rear Upper Panel Corner Tie Rod Components

    — Parts GRAIN CARTS Front & Rear Upper Panel Corner Tie Rod Components ITEM PART NUMBER DESCRIPTION NOTES 2005005B Corner Tie Rod =Black= 2005007B Corner Tie Rod Bracket =Black= 2005011G Strap =Green= 2005011R Strap =Red= 91262 Flange Screw, 3/8”-16UNC x 1” 91263 Large Flange Nut, 3/8”-16UNC 2004858B...

  • Page 97: Tank Cross Braces & Lower Cross Braces

    — Parts GRAIN CARTS Tank Cross Braces & Lower Cross Braces ITEM PART NUMBER DESCRIPTION NOTES 2004551B End Cross Brace Weldment =Black= 2004547B Center Cross Brace Weldment =Black= 91267 Flange Nut, 1/2”-13UNC 91266 Flange Screw, 1/2”-13UNC x 1 1/4” 2004476B Lower Cross Brace 9390-122 Capscrew, 5/8”-11UNC x 1 1/2”...

  • Page 98: Sideboard Components

    — Parts GRAIN CARTS Sideboard Components QTY BY MODEL ITEM PART NUMBER DESCRIPTION NOTES 1138 1242 102608 Window Glass 102693 Weatherstrip 25039B Angle 62 1/2” Long Shown 2010435B Angle 64 1/2” Long 25311B Front Left-Hand Sideboard 22” x 117 5/8” Shown 2010440B Front Left-Hand Sideboard 30”...

  • Page 99: Axle Assembly - Non-Scale Unit Components

    — Parts GRAIN CARTS Axle Assembly — Non-Scale Unit Components ITEM PART NUMBER DESCRIPTION NOTES 2005532B Axle Weldment =Black= 286170G Spindle & Hub Assembly =Green= 286170R Spindle & Hub Assembly =Red= 9390-138 Capscrew, 5/8”-11UNC x 7” Gr.5 9390-187 Capscrew, 1”-8UNC x 3” Gr.5 9398-019 Elastic Locknut, 5/8”-11UNC 9663...

  • Page 100: Axle Assembly - Wheels With Scale Components

    — Parts GRAIN CARTS Axle Assembly — Wheels With Scale Components ITEM PART NUMBER DESCRIPTION NOTES 2005532B Axle Weldment =Black= 267277G Spindle & Hub Assembly — Scale Unit =Green= 267277R Spindle & Hub Assembly — Scale Unit =Red= 9390-138 Capscrew, 5/8”-11UNC x 7” Gr.5 9390-187 Capscrew, 1”-8UNC x 3”...

  • Page 101: Track Axle Components

    — Parts GRAIN CARTS Track Axle Components FOR TRACK INFORMATION, PLEASE REFER TO YOUR TRACK MANUAL. ITEM PART NO. DESCRIPTION NOTES 250843 Pin, 1” Dia. x 4 9/16” 28985B Axle Weldment =Black= 268836B Axle Mount Weldment =Black= 9004903 Hitch Bar, 2.875” Dia. 91192 Retaining Ring 1”...

  • Page 102: Spindle & Hub Assembly - Non-Scale Unit

    — Parts GRAIN CARTS Spindle & Hub Assembly — Non-Scale Unit ITEM PART NUMBER DESCRIPTION NOTES 286170G Spindle & Hub Assembly =Green= Includes Items 1 through 16 286170R Spindle & Hub Assembly =Red= 283739G Hub with Bearing Cups and Studs =Green= Includes Items 2 through 4 283739R Hub with Bearing Cups and Studs =Red=...

  • Page 103: Spindle & Hub Assembly - Scale Unit

    — Parts GRAIN CARTS Spindle & Hub Assembly — Scale Unit ITEM PART NUMBER DESCRIPTION NOTES 267277G Spindle & Hub Assembly — Scale Unit =Green= Includes items 1 through 17 267277R Spindle & Hub Assembly — Scale Unit =Red= 283739G Hub with Bearing Cups and Studs =Green= Includes items 2 through 4 283739R...

  • Page 104: Wheels & Tires

    — Parts GRAIN CARTS Wheels & Tires PART NUMBER ITEM DESCRIPTION Model 830 Model 1138 Model 1242 111729SM Wheel & Tire Assembly 27 x 32 / TLIF800/65R32 17273SM Wheel Only 27 x 32 18904 18904 Wheel & Tire Assembly 30x32 / 900/70R32 R-1W...

  • Page 105: Optional Lights (Bundle #2005425B)

    — Parts GRAIN CARTS Optional Lights (Bundle #2005425B) ITEM PART NUMBER DESCRIPTION NOTES 22790 Wiring Harness, 132” 3-T 22983 Wiring Harness, 396” T 23165 Wiring Harness, 264” 2004282 Wiring Harness, 36” (2 Pin Connector) 22987 Wiring Harness, 36” (3 Pin Connector) 2001084B Bracket Assembly (Left-Hand) Includes Items 7A, 8-15...

  • Page 106: Weather Guard End Cap And Tarp Bow Components

    — Parts GRAIN CARTS Weather Guard End Cap and Tarp Bow Components 5-50...
  • Page 107 — Parts GRAIN CARTS Weather Guard End Cap and Tarp Bow Components ITEM PART NO. DESCRIPTION NOTES Models Model 1138 & 1242 Screw/Self Drilling 1/4-14 x 1” 9512 Hex Washer Head 91263 Hex Nut/Large Flange, 3/8”-16UNC 96972 Screw/Self Drilling 3/8”-16UNC x 1” 25124B Tarp Bow Strap 25125B...
  • Page 108 — Parts GRAIN CARTS Weather Guard Less End Caps & Tarp Bows Components Model 830 5-52...
  • Page 109 — Parts GRAIN CARTS Weather Guard Less End Caps & Tarp Bows Components Model 830 ITEM PART NO. DESCRIPTION NOTES 2011333B Tarp Kit with End Caps and Vent Covers 96972 Screw/Self Drilling, 3/8”-16UNC x 1” 221668 PVC Pipe - 180”...
  • Page 110 — Parts GRAIN CARTS Weather Guard Less End Caps & Tarp Bows Components Models 1138 & 1242 ITEM PART NUMBER DESCRIPTION NOTES 221659 Tarp Kit with Arched End Caps 25954 Roll Tube Weldment, 240” 25949 Fixed Tube Weldment, 230” 221668 Pipe - 180”...
  • Page 111 — Parts GRAIN CARTS Weather Guard Less End Caps & Tarp Bows Components Models 1138 & 1242 ITEM PART NUMBER DESCRIPTION NOTES 281712B Bracket & U-Nut Assembly 221749 Tarp Handle Weldment 91262 Large Flange Screw, 3/8”-16UNC x 1” 9005305 Lynch Pin 3/8” x 3” 9003078 Cap - Plastic (2 x 3) 902613...
  • Page 112 L:\OMUNVERFERTH\\1138/830/1242GRAINCART\2012223.indd///May 2023-0/May 2024-1...

This manual is also suitable for:

11381242

Table of Contents
