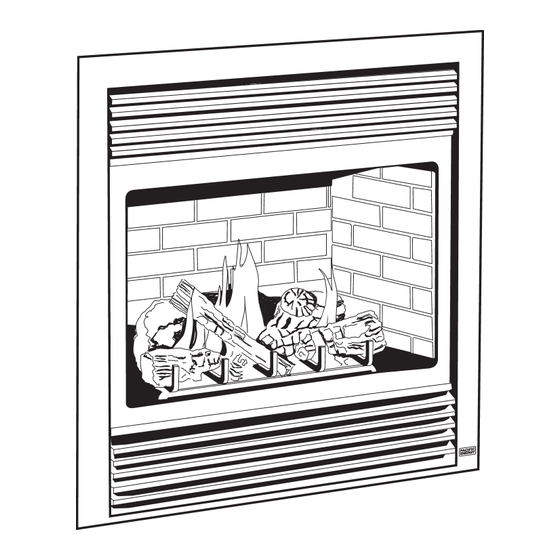

The Estate Series F

Direct Vent Fireplace

Installation Instruction Upgrade Supplement

For The Estate Series A

These instructions are only supplementary. Refer to the Installation and Operating

Instructions supplied with the appliance for proper gas supply, safety

requirements, and lighting instructions.

If an Optional Screen Door is to be installed, refer to the installation supplement

supplied with the Screen Door for additional installation and safety requirements.

080103-4

Estate F Supplement

5055.8011

Need help?

Do you have a question about the Estate F Series and is the answer not in the manual?

Page 1 The Estate Series F Direct Vent Fireplace Installation Instruction Upgrade Supplement For The Estate Series A These instructions are only supplementary. Refer to the Installation and Operating Instructions supplied with the appliance for proper gas supply, safety requirements, and lighting instructions. If an Optional Screen Door is to be installed, refer to the installation supplement supplied with the Screen Door for additional installation and safety requirements.
Page 2 EMBER MATERIAL Two different types of ember material are supplied Place the Glowing Embers randomly on the burner with this fireplace, Platinum Bright Embers and area away from the burner ports. This will produce Glowing Embers. The Platinum Bright Embers the best results.
Page 3 LOG SET ASSEMBLY Step 3 Fig. # 3 Right Rear Log Placement Unpack and inspect the log set. There should be a total of six logs, and one coal chunk. All gas and vent connections should be made before installing the log set.
Page 4 / Supports du manteau (Max. 3 1/2 po. Extension) 0 in./ 0 po. (0 mm) Pacific Energy Flex Pipe system / le systËme Conduit Flexible de Pacific Energy 1 in./ 1 po. (25 mm) Dura-Vent GS or Secure Vent system / le systËme Dura-Vent GS ou Secure Vent 1 3/4 in./ 1 3/4 po.
