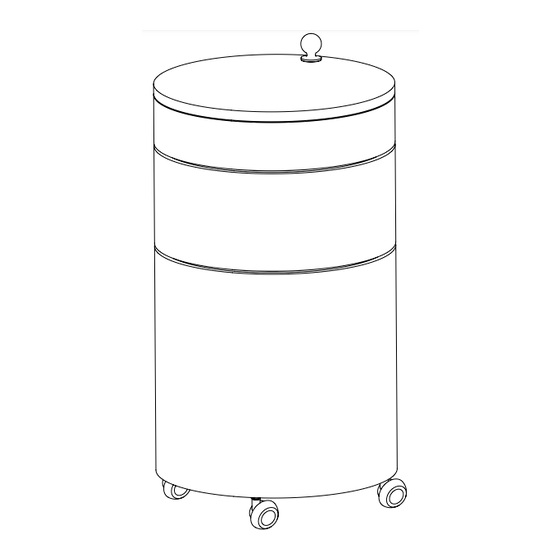

BARBOY

Assembly Instruction

Need help?

Do you have a question about the BARBOY and is the answer not in the manual?

Page 1 BARBOY Assembly Instruction...
Page 2 If the cassettes move too easily they can be tightening by the metal handle on the top of the Barboy (see drawing no. 3) Slight tolerance in diameter of cylinder may occur. Contact the store where you purchased your product for further details.
Page 3 Box contains: Barboy × 1 You may also need: Hex Key Ø5 In case you need to tighten bolts. You may also need an hex key.
Page 4 1. Tighten handle. The handle must be tightend periodically. 2. Wheels are delivered with plastic protectors to prevent scratches, which can be removed at your preference...
Page 5 Barboy has fulfilled the requirements in EN 14749:2005 Domestic and kitchen storage units and worktops. The test has been performed by the DANISH TECHNOLIGICAL INSTITUTE. If boxes are overloaded drawers may hang. Please be aware of recommended maximum weight in the following positions. The stated maximum recommended weight is based on the state of the opposite unit(s) are empty.
Page 6 3 kg. / 6,6 lbs 2 kg. / 4,4 lbs...
Page 7 When bottom drawer is empty do not fill anything in the the two top drawers or on the top plate In case you need to tighten the bolts on the back, be extra careful when tightening to ensure you won’t damage the painted surfaces of the bolts.
Page 8 Egeskovvej 29 | 8700 Horsens | Denmark info @ verpan.com | verpan.com...
