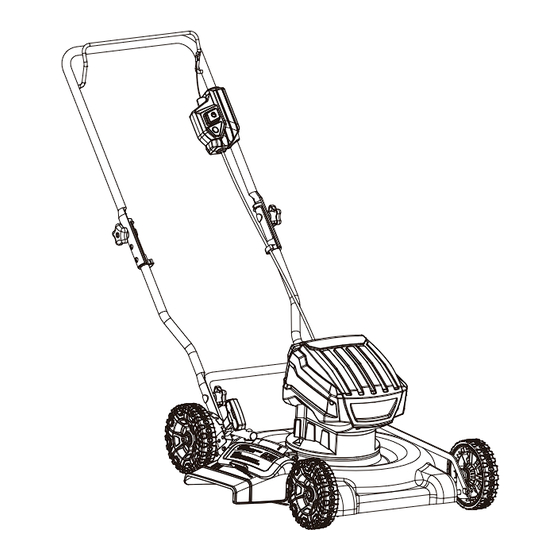

Full Boar M2025P Operator's Manual

80v brushless 20 in. cordless battery walk behind push mower

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Save This Manual for Future Reference

80V Brushless 20 in. Cordless

Battery Walk Behind Push Mower

Operator's Manual

MODEL NUMBER

M2025P

SERIAL NUMBER

PURCHASE DATE

Both model number and serial

number may be found on the main

label. You should record both of them

in a safe place for future use.

FOR YOUR SAFETY

READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE

GO FULL BOAR

Table of Contents

Need help?

Do you have a question about the M2025P and is the answer not in the manual?

Questions and answers

Summary of Contents for Full Boar M2025P

Page 1 Both model number and serial number may be found on the main label. You should record both of them in a safe place for future use. FOR YOUR SAFETY READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE GO FULL BOAR...
Page 2: Table Of Contents
Discover the FULL BOAR Advantage At FULL BOAR, we understand that land ownership definitely has its privileges, but it also comes with a great deal of responsibility. When duty calls and you need to respond, will you have what it takes to tame the...
Page 3 Use extra caution on slopes. Do not mow slopes greater than 15°. Mow across never up and down. 2. Slide the two hooks of the side discharge chute M2025P WARNING easy and cuts cleanly. The efficiency of the cutting system To reduce risk of injury, under the hinge pin on the mulch plug assembly.
Page 4 SUPPORT Have questions about your FULLBOAR equipment? Call us at (888) 533-2999, email us at Support@ gofullboar.com, or contact us via your favorite social media site. Introduction...
Page 5: Specifications
Battery Walk-Behind Lawn Mower Operator’s Manual » SPECIFICATIONS M2025P1 M2025P0 Model # Voltage 80 V Battery Included Battery Model No. LB8025 Battery Amp Hours 2.5 A Number of Batteries Included Charger Included Charger Model No. LC8022 Mower Type Manual Push Cutting Options Mulch, Side Discharge Cutting Width...
Page 6: Symbols
100 ft. SYMBOLS The rating plate on your machine may show symbols. These represent important information about the product or instructions on its use. DANGER Before leaving the mower, or not mowing, make sure the mower blades come to a WARNING STOP complete stop and the batteries and start...
Page 7: Safety
Battery Walk-Behind Lawn Mower Operator’s Manual » SAFETY The definitions below give the level of severity for each signal word. DANGER This symbol points out safety This symbol points out important WARNING DANGER instructions. Read and follow all safety instructions. This machine instructions before attempting to operate this machine.
Page 8 unit. Always wear safety goggles or safety glasses with side shields Pack; avoid contact. If contact accidentally occurs, flush with water. when operating and while performing an adjustment or repair. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery pack may cause irritation or burns.
Page 9 Battery Walk-Behind Lawn Mower Operator’s Manual » way. Unmodified plugs and matching outlets will reduce risk of 20. People with pacemakers should consult their physician(s) before use. electric shock. Electromagnetic fields in close proximity to heart pacemaker could cause pacemaker interference or pacemaker failure. In addition, 14.
Page 10 16. This manual cannot include all situations that can occur when you use MAINTENANCE SAFETY the product. Be careful and use your common sense. Do not operate 1. Before cleaning, repairing, or inspecting the product, stop the machine the product or do maintenance to the product if you are not sure and make certain the blade and all moving parts have stopped.
Page 11: Contents Supplied
Battery Walk-Behind Lawn Mower Operator’s Manual » CONTENTS SUPPLIED Your Full Boar lawn mower comes partially assembled and contains the following: DANGER WARNING CAUTION Before beginning assembly of product, make sure all parts are present. Compare parts with below NOTE package contents list.
Page 12: Assembly
ASSEMBLY DANGER This lawn mower was partially assembled at the factory. To assemble your machine follow the below instructions. WARNING HANDLE 3. Tighten the star shaped knobs and carriage bolt connecting the upper and intermediate connecting handlebars.(See Figure 2, illustration 3) CAUTION 1.
Page 13 Battery Walk-Behind Lawn Mower Operator’s Manual » SIDE DISCHARGE CHUTE 2. Align the battery with the right battery port. Make sure the battery release button snaps in place and the battery is fully seated and secure in the 1. Lift the mulch cover on the side of the mower. (See Figure 3, illustration 1) mower before beginning operation.
Page 14: Know Your Machine
KNOW YOUR MACHINE FEATURES AND CONTROLS Start/Stop Bail Control Start Button Turbo Switch Upper Handle Power Head Intermediate connecting handlebar Cutting Height Adjustment Lever Rear Wheel Side Discharge Chute Mulch Cover Front Wheel Battery Battery Indicator Battery Release Button Know Your Machine...
Page 15 Battery Walk-Behind Lawn Mower Operator’s Manual » Start/Stop Bail Lever Side Discharge Chute The start/stop bail lever is attached to the upper handle of Your mower is shipped as a mulcher. To discharge the grass the mower. Depress and squeeze it against the upper handle clippings to the side instead, follow the instructions on page to operate the unit.
Page 16: Operation
OPERATION CUTTING HEIGHT ADJUSTMENT STARTING DANGER The cutting height can be adjusted to 7 different positions. Raise wheels Be sure no one other than the WARNING for low cut and lower wheels for high cut. Adjust cutting height to suit your operator is standing near the requirements.
Page 17 Battery Walk-Behind Lawn Mower Operator’s Manual » Turbo Figure 9 7. To stop the mower, release the start/stop bail lever Figure 10 STOPPING THE MACHINE Release the start/stop bail control lever to stop the blade. (See Figure 11) DANGER Wait for the blade to stop WARNING completely before performing any work on the mower.
Page 18 2. Examine the Battery Pack. It must be undamaged. Do not charge a cracked, open, or leaking Battery Pack, or charge a non-recommended type of Battery Pack. (Only works with a FULL BOAR Li-Ion 80 V Battery Pack.) 3. The Full Boar Battery Pack’s terminals are designed to fit the adapted Full Boar Charger specifically.
Page 19 Battery Walk-Behind Lawn Mower Operator’s Manual » Battery Pack Indicator Light Indicator Definition Voltage LED 1 LED 2 LED 3 LED 4 range ~3.60 Press the switch or turn Discharge 3.60~3.75 it on and it will light up. Indication Release the switch for 3.75~3.90 3 seconds and it will turn off...
Page 20: Maintenance
MAINTENANCE CLEAN THE MOWER 2. The transmission is pre-lubricated and sealed at the factory and does Clean underside of the mower deck after each use to prevent build-up of not require lubrication. grass clippings or other debris. DANGER Before performing any cleaning WARNING on the lawn mower, remove the switch key and battery pack.
Page 21 Battery Walk-Behind Lawn Mower Operator’s Manual » DANGER WARNING DANGER To ensure safe operation of CAUTION WARNING your mower, periodically check the blade bolt for correct torque. NOTE CAUTION Blade bolt is heat treated. NOTE If bolt needs replacing, replace only with approved bolt.
Page 22: Transport & Storage
DANGER WARNING TRANSPORT AND STORAGE CAUTION DANGER Before transporting and storage, Apply a coat of chassis grease NOTE WARNING remove the switch key and battery to mower’s cutting blade to pack. prevent rusting. CAUTION The following steps should be taken to prepare your lawn mower for storage. NOTE Keep all equipment safe during transportation to prevent damage and accidents.
Page 23: Troubleshooting
Battery Walk-Behind Lawn Mower Operator’s Manual » TROUBLESHOOTING Problem Cause Remedy 1. The battery is not fully installed in the 1. Remove and then replace the battery into the machine. machine, making sure that it is fully installed and latched. 2.
Page 24 Problem Cause Remedy Clean the terminals on the battery and the tool. It is difficult to remove The battery pack/tool is new or there is Then apply dielectric grease to the battery the battery pack from the corrosion in the battery terminals and/or the terminals;...
Page 25: Parts Diagram
Battery Walk-Behind Lawn Mower Operator’s Manual » PARTS DIAGRAM DANGER WARNING CAUTION There are no Part#62 Charger and Part#61 Battery (1pcs) in Model No. M2025P0. NOTE Parts Diagram...
Page 26 1 POWER HEAD 33 START CONTROL ASSEMBLY Parts Diagram...
Page 27 Battery Walk-Behind Lawn Mower Operator’s Manual » PARTS LIST Description Description Power Head Assembly Start Control Assembly Top Cover Start Switch Button Screw ST3.5x9.5 Start Switch Button Compression Spring Sponge Start Switch Button Indenter Side Plate- Right Screw ST2.2x13 Screw ST3.5x13 Start Switch Sticker Screw ST3.5x16 Compression Sleeve...
Page 28 Description Description Upper Handle Box Positioning Bolt Cross Recessed Tapping Screw ST2.9x12 Height Adjustment Connecting Rod Nut M5 Shield-Trailing Screw M5x16 Screw M5x16 7in. Wheel Assy. Rear Wheel Axle Nut M10 Screw M5x12 Nut M6 Start/Stop Bail Lever Height Adjustment Positioning Plate Upper Handle Screw M6x16 Insulating Sleeve...
Page 29 Battery Walk-Behind Lawn Mower Operator’s Manual »...
Page 31 Battery Walk-Behind Lawn Mower Operator’s Manual »...
Page 32 GO FULL BOAR (888) 533-2999 Support@gofullboar.com...
