STD-610 Cinta de prueba STD-610
onmutador DOLBY NR
= +
r
Conmutador DOLBY NR | OFF Ci
: z ——— 3
—— a nil
63 10 125 280 318 S00
Conmutador DOLBY NR | ¢
"0 63 100 125 250 315 S00 ay ae "~ 63K Or tae 1
=
4 = 63 100125 280 318 S00 1H Ey 4h 63k WIZ 15k

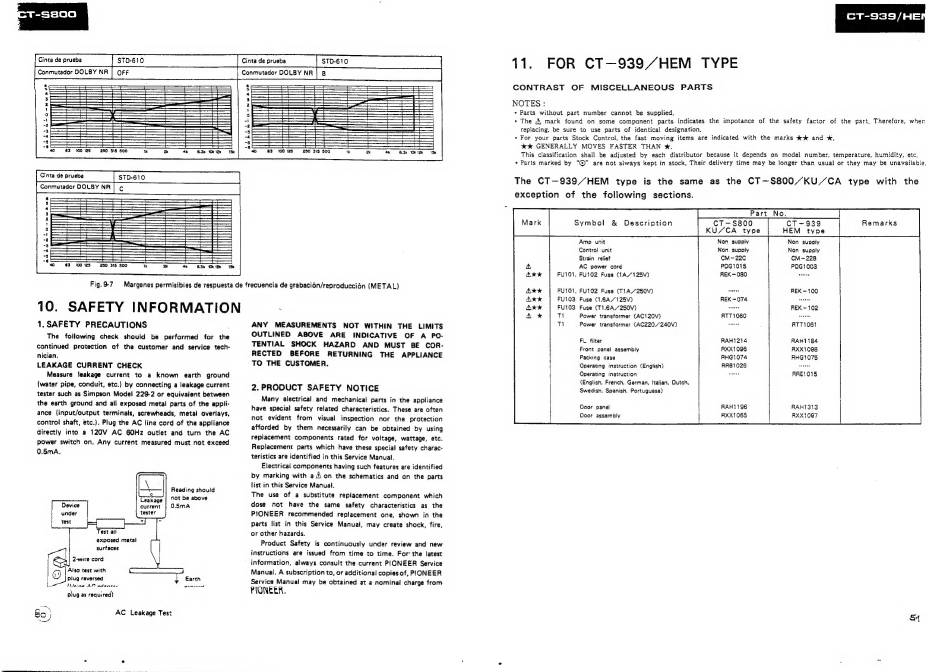

10. SAFETY INFORMATION
1,SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service tech-
nician,
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
{water pipe, conduit, etc.) by connecting a leakage current
tester such as Simpson Model 229-2 or equivalent between
the earth ground and al! exposed metal parts of the appii-
ance {input/output terminals, screwheads, metal overiays,
control shaft, etc.). Plug the AC line cord of the appliance
directly into a 120V AC 6OHz outlet and turn the AC
power switch on. Any current measured must not exceed
0.5mA.
=
Leakage
current
tester
Reading should
not be above
0.5mA
Test ait
exposed metal
surfaces
2-wire cord
Also test with
Plug reversed
WWeine AD adertwr meee st
plug as requi red)
Eo | AC Leakage Test
ANY MEASUREMENTS NOT WITHIN THE LIMITS
OUTLINED ABOVE ARE INDICATIVE OF A PO-
TENTIAL SHOCK HAZARD AND MUST BE COR-
RECTED BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are often
not evident from visual inspection nor the protection
afforded by them necessarily can be obtained by using
replacement components rated for voltage, wattage, etc.
Replacement parts which have these special safety charac-
teristics are identified in this Service Manual.
Electrical components having such features are identified
by marking with a on the schematics and on the parts
list in this Service Manual.
The use of a substitute replacement component which
dose not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
Parts list in this Service Manual, may create shock, fire,
or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For: the latest
information, always consuit the current PIONEER Service
Manual. A subscription to, or additional copies of, PIONEER
Service Manual may be obtained at a nominal charge from
PIONEER.
fom gp ici= 9s S|
11. FOR CT—939,/HEM TYPE
CONTRAST OF MISCELLANEOUS PARTS
NOTES :
* Parts without part number cannot be supplied.
* The A mark found on some component parts indicates the impotance of the safety factor of the part, Therefore, wher
replacing, be sure to use parts of identical designation, ;
+ For your parts Stock Control, the fast moving items are indicated with the marks %%& and *.
*&x& GENERALLY MOVES FASTER THAN x.
This classification shall be adjusted by each distributor because it depends on model number, temperature, humidity, etc.
* Parts marked by "©" are not always kept in stock. Their delivery time may be longer than usual or they may be unavailable,
The CT—939/HEM type is the same as the CT~S800/KU/CA type with the
exception of the following sections.
Symbol & Description cT-S800 Remarks
KU/CA type
Amp unit Non supply Non suppiy
Control unit Non supply Non supply
Strain relief CM-22C CM~228
AC power cord POG1015 PO0G1003
FU102 Fuse (1A/125V) REK~ 080
FU102 Fuse (TIA/250V)
Fuse (1.6A/125V)
Fuse (T1,.6A,/250V)
Power transformer (AC120V) RTT1060
Power transformer (AC220,"240V) Hien RTT1061
FL filter RAH1214 RAH1184
Front panel assambiy RXX1096 RXX1098
Packing case RHG1074 RHG1075
Operating instruction (English) RRB1026 oe
Operating instruction tress
(English, French, German, Italian, Dutch,
Swedish, Spanish, Portuguese)
RRE101S
Door panel RAH1196 RAH1313
Door assembly RXX1065 RXX1097
