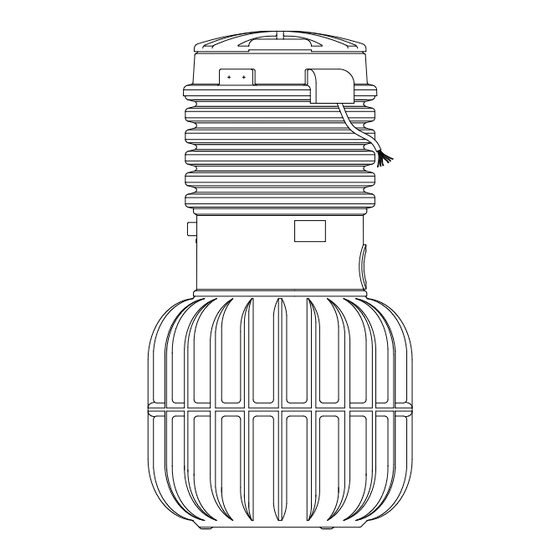

- Page 1 DH151 Typical Installation Instructions & Warranty Information Simplex Station 150-Gal. Capacity...
- Page 2 Environment One Grinder Pump Feature Identification 1. GRINDER PUMP BASIN – Polyethylene 2. ACCESSWAY COVER – HDPE 3. ELECTRICAL QUICK DISCONNECT (EQD) – Cable from pump core terminates here. 4. POWER AND ALARM CABLE – Circuits to be installed in accordance with local codes. 5.
- Page 3 Figure 1a SEAL CONDUIT PER NEC SECTION 300.5 & 300.7 Figure 1b FAILURE TO COMPLY WITH INSTALLATION INSTRUCTIONS WILL VOID WARRANTY...
-
Page 4: Tank Installation
The Environment One grinder installed on or in the basement prevent the unit from shifting pump is a well-engineered, floor (see Fig. 1b). If the tank is while the concrete is being reliable and proven product; to be set on the floor, it must be poured. - Page 5 CAUTION: Redundant check pre-installed in the accessway. soil with less than 12% fines, There is a 1-1/4” female NPT free of ice, rocks, roots, and valves on station laterals discharge connection on the organic material, it may be and anti-siphon/check valve assemblies on grinder pump outside of the tank 44”...
-
Page 6: Electrical Connection
7. ELECTRICAL 8a. Installing E/One supply length of conduit (contractor CONNECTION: (Supply panel cable: provided), which will protect it to E/One Alarm Panel) 1) Open the lid of the until it is below the 24” burial Before proceeding, verify that station. -
Page 7: Test Procedure
into the tank. Next, all liquid located in the alarm panel Call your local E/One and debris must be removed. enclosure. Then turn on the distributor if you experience Once tank is clean, reinstall alarm power circuit breaker. any problems. Please have the pump and proceed with the Leave pump breaker off. - Page 8 Field Joint Assembly Instructions IT IS EXTREMELY IMPORTANT THAT THE JOINT IS SEALED PROPERLY BEFORE BACKFILLING. EXCAVATING A UNIT FOR REPAIR IS VERY EXPENSIVE AND CAN BE EASILY AVOIDED BY USING PROPER CAUTION DURING THE FOLLOWING PROCEDURE. clean and dry. Parts included in Field Joint it;...
-
Page 9: Lifting Instructions
Lifting Instructions FAILURE TO FOLLOW THESE INSTRUCTIONS COMPLETELY WILL VOID WARRANTY. 1. Transporting unit to 2. No Ballast (to be poured in 3. Precast Ballast: Never installation site: Always lift a place): If the concrete anchor is lift a station that has a ballast unit from the bottom for the to be poured while the station attached by any means except... - Page 10 E/One Grinder Pump Station Ballast Calculations Any buried vessel that is submerged, or partially submerged, in water will be acted on by an upward buoyant force that attempts to return the vessel to a non-submerged state. The magnitude of this buoyant force is equal to the volume of the vessel that is submerged multiplied by the density of water.
- Page 11 E/One Grinder Pump Station Ballast Calculations Chart 1 Minimum Saturated Tank Tank Tank Tank “Net” Minimum Submerged Total Concrete Soil Station Buried External Buoyant Weight Buoyant Concrete Concrete Ballast Dimensions Ballast Height Height Volume Force Empty Force Volume Ballast Weight [dia x height] Weight (ft)
- Page 12 Adjusting the Height of the Grinder Pump Station TO INCREASE STATION HEIGHT 6 INCHES 1. Increasing station height can be done without cutting the station. Use the E/One Extender cover shroud kit (ND0082G01) and follow the instructions that are included with the kit. TO INCREASE STATION HEIGHT MORE THAN 6 INCHES or TO REDUCE THE STATION HEIGHT: REMOVE EXISTING COVER ASSEMBLY (Fig.
- Page 13 12. Clean all dirt and debris from top four corrugations on tank. Install the 24” coupler gasket on the tank between the top two corrugations with the white or yellow line facing out and on top. 13. Lube extension coupler and coupler gasket with pipe lube or dish soap. 14.
- Page 14 A Precision Castparts Company Environment One Corporation 2773 Balltown Road Niskayuna, New York 12309–1090 Voice: (01) 518.346.6161 Fax: 518.346.6188 NA0062P01 Rev F www.eone.com 5/24...
-
Page 15: General Information
User Instructions for the Environment One Grinder Pump General Information Your home is served by a low pressure sewer system; the key element is an Environment One grinder pump. The tank collects all solid materials and wastewater from the house. The solid materials are then ground to a small size suitable for pumping as a slurry with the wastewater. -
Page 16: Limited Warranty
E/One Sewers Limited Warranty For E/One Extreme D-Series, W-Series & Upgrade Environment One Corporation offers a limited warranty that guarantees its product to be free from defects in material and factory workmanship for a period of two years from the date of installation, or 27 months from the date of shipment, whichever occurs first, provided the product is properly installed,...
