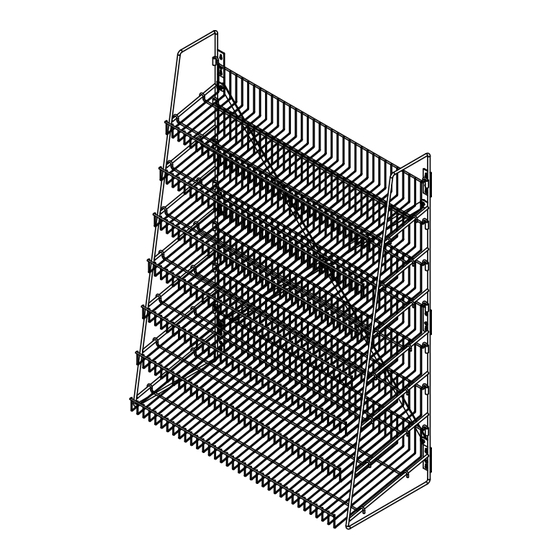

WIRE CANDY/SNACK RACK, 7 LEVELS 48"W
ASSEMBLY INSTRUCTIONS

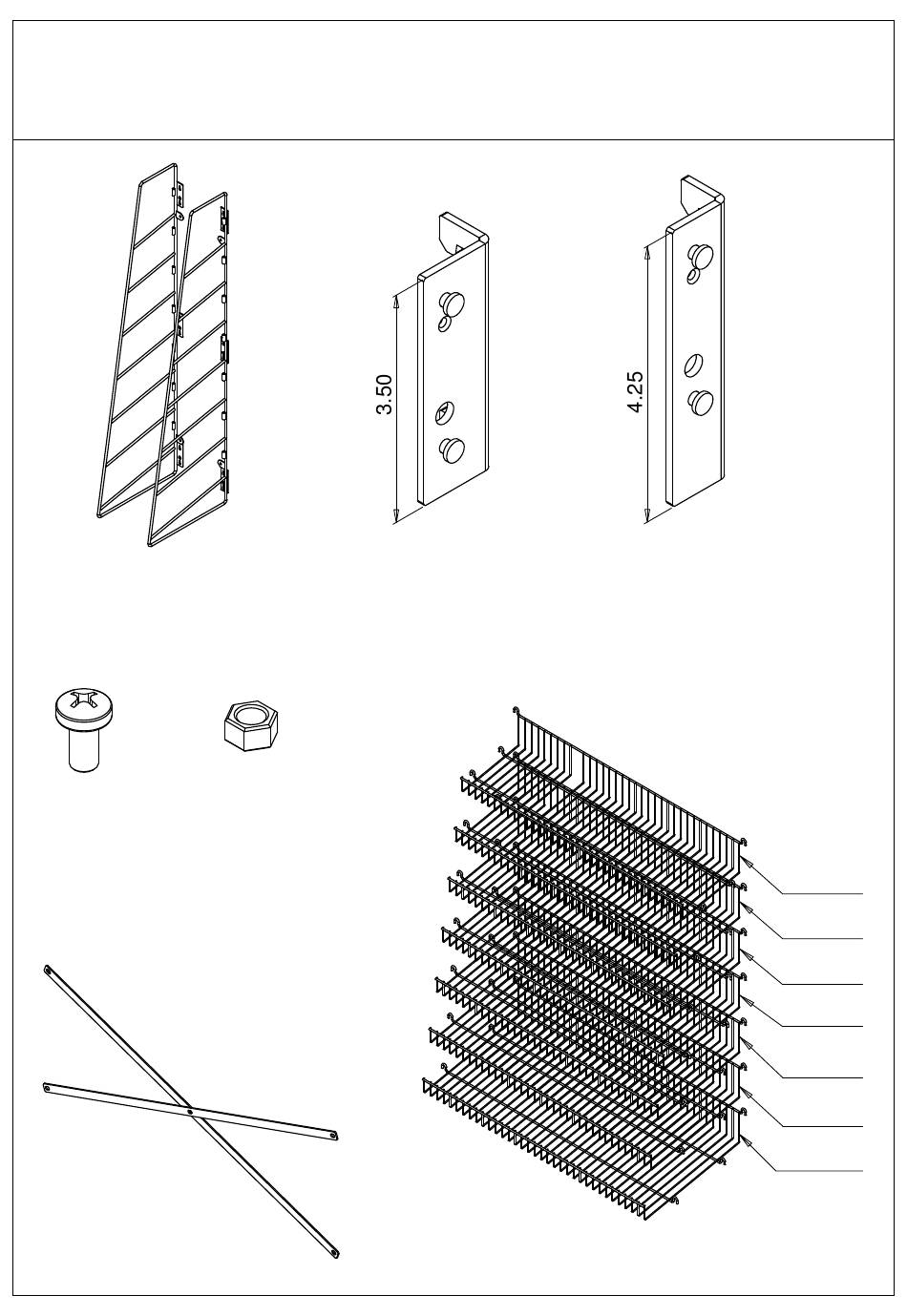

Frames
Hardware:
1/4‐20X0.5"
screws (5)
Cross Brace
3.5" Brackets
Lozier / Madix
1/4‐20
nuts (5)
READ ALL INSTRUCTIONS BEFORE YOU BEGIN.
DO NOT JUMP AHEAD OF ANY STEP.
4.25" Brackets
Streater
page 1 of 3
shelf 7
shelf 6
shelf 5
shelf 4
shelf 3
shelf 2
shelf 1
Advertisement
Related Manuals for Madix WCSR7L48-25
Summary of Contents for Madix WCSR7L48-25
- Page 1 1 of 3 WIRE CANDY/SNACK RACK, 7 LEVELS 48"W READ ALL INSTRUCTIONS BEFORE YOU BEGIN. ASSEMBLY INSTRUCTIONS DO NOT JUMP AHEAD OF ANY STEP. 3.5" Brackets 4.25" Brackets Frames Lozier / Madix Streater Hardware: 1/4‐20 1/4‐20X0.5" nuts (5) screws (5) shelf 7 shelf 6 shelf 5 shelf 4 shelf 3 shelf 2...
- Page 2 page 2 of 3 WIRE CANDY/SNACK RACK, 7 LEVELS 48"W READ ALL INSTRUCTIONS BEFORE YOU BEGIN. ASSEMBLY INSTRUCTIONS DO NOT JUMP AHEAD OF ANY STEP. Freestanding or wall Assembly steps： mounted instructions： 1. Stand both left and right frames up vertically. 2.
- Page 3 1. Stand both left and right frames up vertically. 2. Select the brackets appropriate for your gondola shelving unit. The 3.5" tall brackets will be used for Lozier or Madix. The taller 4.5" tall brackets will be used for Streater. Insert the brackets into the keyhole slots of the rear plates, the bracket tabs facing outward.
