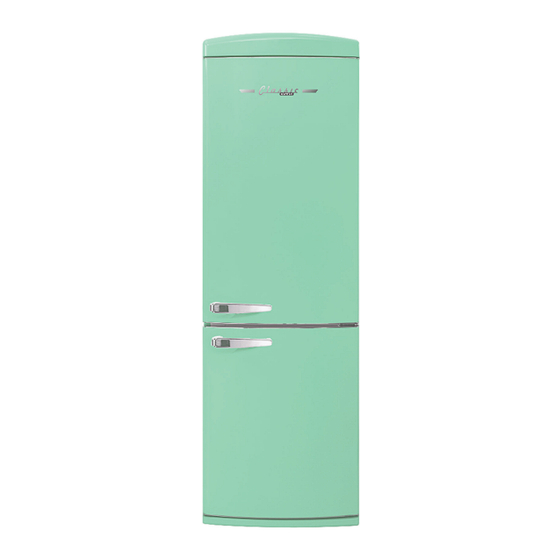

- Page 1 BOTTOM MOUNT REFRIGERATOR MODEL NUMBERS: UGP-340L W AC ,UGP-340L B AC, UGP-340L T AC, UGP-340L LG AC, UGP-340L O AC, UGP-340L Y AC, UGP-340L MB AC OWNER’S GUIDE serial number: Nov23V1 SA46158...
-
Page 2: Table Of Contents
Be safe using common sense and caution when installing, operating and cleaning this appliance. If you are unsure about any of these instructions or warnings, contact your local product dealer or Unique Appliances for assistance. NEED HELP? Before you call for service, here are a few things you can do to help us serve you better. -
Page 3: Important Safety Notes
It is not advised to connect an appliance that has been damaged, especially damage to the elec- trical supply cable or refrigerant circuit. In the event of damage please contact your local product dealer or Unique Appliances for assistance. DANGER •... - Page 4 IMPORTANT SAFETY NOTES IMPORTANT • Run the fridge for at least 4 hours empty before adding food to allow the interior to cool down properly. • This fridge is designed for domestic use only! It is intended for the storage of edible/consumable food and drinks.
-
Page 5: Grounding Instructions
GROUNDING INSTRUCTIONS This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current. The appliance has a cord that has a grounding wire and a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. -
Page 6: Installation
INSTALLATION INSTRUCTIONS POSITIONING THE APPLIANCE The area in which the fridge is to be installed must be relatively cool, dry, and suitably ventilated. The area must be protected against any inclement weather (rain, snow) and excessive surface dust. To ensure proper function, the appliance must be placed on a flat, firm, and stable surface resting level on all four supports. - Page 7 • This product should be serviced by an authorized technician and only genuine spare parts should be used. • Under no circumstances should you attempt to repair the appliance yourself unless advised by Unique. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning of the appliance. Unauthorized work may void the warranty.
-
Page 8: Product Features
PRODUCT FEATURES PRODUCT FEATURES A Refrigerator compartment 7 Freezer bottom drawer B Freezer compartment 8 Levelling feet 1 Wine rack 9 Door shelf 2 Refrigerator shelves 10 Adjustable door shelf 3 Crisper cover 11 Bottle shelf 4 Crisper 12 Thermostat box / Interior display 5 Freezer upper shelf 13 Egg holder 6 Freezer middle drawer... -
Page 9: Operation
OPERATION DISPLAY / CONTROL PANEL 1 Enables the setting of the freezer. 2 Enables the setting of the cooler. 3 Freezer set value screen. 4 Cooler (fridge) set value screen. 5 Economy mode symbol. 6 Super freeze symbol. 7 Alarm symbol. Note: When the appliance is plugged in for the first time, all symbols will be displayed for 2 seconds: the freezer adjustment indicator will display -18˚C, and the fridge adjustment indicator will display 4˚C. - Page 10 OPERATION SETTING THE FREEZER TEMPERATURE The initial temperature value for the freezer setting indicator is -18°C/0˚F. To adjust and set your preferred freezer temperature: • Press the freezer set button once. When you first press the button, the previous value will blink on the screen.
- Page 11 OPERATION RECOMMENDED TEMPERATURE FOR THE FRIDGE AND FREEZER COMPARTMENTS Freezer Compartment Fridge Compartment Remarks For regular use and best -18˚C/0˚F 4˚C/39˚F performance. -20˚C/-4˚F Recommended when environmental -22˚C/-8˚F 4˚C/39˚F temperature exceeds 30°C/86˚F. -24˚C/-11˚F Use when you wish to freeze food in a Super Freeze mode 4˚C/39˚F short period of time.
-
Page 12: Features
FEATURES ICE TRAY • Fill the ice tray with water and place in the freezer compartment. • After the water has completely frozen, you can twist the tray as as shown below to remove the ice cubes. ICEMATIC ICE MAKER The ice maker freezes and stores ice cubes. -
Page 13: Food Storage
FOOD STORAGE ADJUSTABLE GLASS SHELF Adjustable glass shelf mechanism provides higher storage spaces with a simple movement. To cover the glass shelf, push it. (Fig.1) You can load your food as you want in the resulting extra space. To bring the shelf in its original position, pull it to- fig. - Page 14 FOOD STORAGE The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment. GUIDE TO STORING FOOD IN THE FRIDGE COMPARTMENT Food Maximum Storage Time How and Where to Store Vegetables and fruit 1 week Vegetable crisper...
-
Page 15: Cleaning And Defrosting
FOOD STORAGE • When purchasing frozen food, make sure that it has been stored under appropriate conditions and that the packaging is not damaged. • Frozen food should be transported in appropriate containers and placed in the freezer as soon as possible. -
Page 16: Maintenance
MAINTENANCE REPLACING LED LIGHTING To replace any of the LEDs, please contact the nearest Authorised Service Centre. NOTE: The numbers and location of the LED strips may change according to the model. REPOSITIONING THE DOOR It is not possible to change the opening direction of your appliance door if door handles are in- stalled on the front surface of the appliance door. -
Page 17: Troubleshooting
TROUBLESHOOTING Error Codes Error Type Meaning Reason Action Needed Sensor Call Service for assistance as soon as Warning possible. 1. Set the freezer temperature to a colder value or set Super Freeze. This should remove the error code once the re- quired temperature has been reached. - Page 18 TROUBLESHOOTING (continued) Error Codes (continued) Error Type Meaning Reason Action Needed 1. Check is Super Cool mode is activated 2. Reduce the fridge compartment temperature Fridge compartment Various 3. Check to see if vents are clear and not is too cold clogged If this warning continues an authorised technician needs to be contacted.
- Page 19 TROUBLESHOOTING (continued) PROBLEM SOLUTION These are normal noises A “cracking” sound can occur: • During automatic defrosting • When the appliance is cooled or warmed (due to expansion of insulating materials). A short “cracking” sound occurs: • When the thermostat switches the compressor on/off. A motor noise occurs: •...
-
Page 20: Recommendations
RECOMMENDATIONS RECOMMENDATIONS • If the appliance is switched off or unplugged, wait at least 5 minutes before plugging the appli- ance in or restarting it in order to prevent damage to the compressor. • If you will not use your appliance for a long time (e.g. in summer holidays) unplug it. Clean the appliance according to the directions on page 15 and leave the door open to prevent humidity and smell. -
Page 21: Wiring Diagram
WIRING DIAGRAM white ambient sensor sensor green sensor yellow blue INNER MAIN BOARD DISPLAY BD67 white green fridge sensor white black balance heater defrost sensor green white pink fuse fuse defrost freezer sensor green heater sensor white serpentine tray heater sensor sensor (RDS) yellow... - Page 22 RATING PLATE UGP-340L W AC ,UGP-340L B AC, UGP-340L T AC, UGP-340L LG AC, UGP-340L O AC, UGP-340L Y AC, UGP-340L MB AC MADE IN TÜRKİYE FABRIQUÉ EN TÜRKİYE AC 115V-127V 11.7 1.99 1.764 SA46158...
-
Page 23: Warranty
Unique from any claim for damages to persons or property caused by the unit. -
Page 24: Product Registration
APPLIANCE INFORMATION APPLIANCE INFORMATION (manual copy - keep with your records) To make care and servicing of your fridge easy and efficient, please record the following informa- tion for future reference: Model: Serial Number: Purchased From: Date Purchased: NOTES PRODUCT REGISTRATION Please visit our website at https://uniqueappliances.com/product-registration/ to register your product. - Page 25 © 2023 Unique Appliances Ltd., 2245 Wyecroft Road, Oakville, Ontario, Canada, L6L 5L7 www.uniqueappliances.com...
