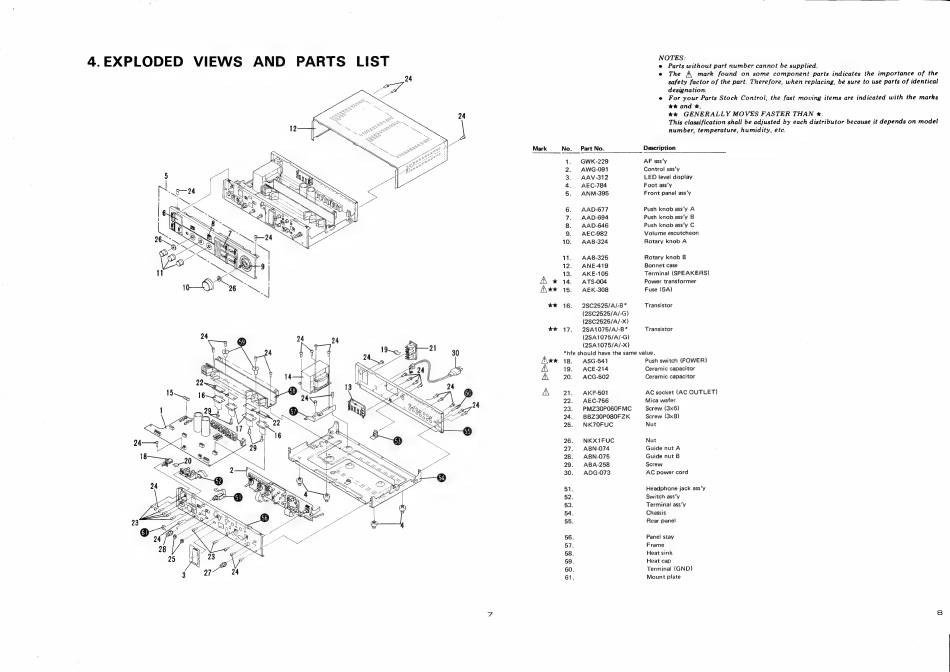

4.EXPLODED VIEWS AND PARTS
Mark
A
Awe
xr
kk
> PP
*
NOTES:
e Parts without part number cannot be supplied.
e The A mark found on some component parts indicates the importance of the
safety factor of the part. Therefore, when replacing, be sure to use parts of identical
designation.
e For your Parts Stock Control, the fast moving items are indicated with the marks
wx and *.
wx GENERALLY MOVES FASTER THAN k.
This classification shall be adjusted by each distributor because it depends on model
number, temperature, humidity, etc.
No. Part No. Description
1. GWK-229 AF ass'y
2. AWG-091 Control ass'y
3. - AAV-312 LED tevel display
4. AEC-784 Foot ass'y
5. ANM-395 Front panel ass'y
6. AAD-677 Push knob ass'y A
7. AAD-694 Push knob ass'y B
8. AAD646 Push knob ass''y C
9. AEC-982 Volume escutcheon
10. AAB-324 Rotary knob A
11. AAB-325 Rotary knob B
12. ANE-419 Bonnet case
13. AKE-105 Terminal (SPEAKERS)
14. ATS-004 Power transformer
15. AEK-308 Fuse (5A)
16. 2SC2525/A/-B* Transistor
(2SC2525/A/-G)
(2SC2525/A/-x)
17. 2SA1075/A/-B* Transistor
(2SA1075/A/-G)
(2SA1075/A/-X)
*hfe should have the same value.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
ASG-541
ACE-214
ACG-502
AKP-501
AEC-756
PMZ30PO60F MC
BBZ30P080F ZK
NK7OFUC
NKX1FUC
ABN-074
ABN-075
ABA-258
ADG-073
Push switch (POWER)
Ceramic capacitor
Ceramic capacitor
AC socket (AC OUTLET)
Mica wafer
Screw (3x6)
Screw (3x8)
Nut
Nut
Guide nutA
Guide nut B
Screw
AC power cord
Headphone jack ass'y
Switch ass'y
Terminal ass'y
Chassis
Rear panel
Panel stay
Frame
Heat sink
Heat cap
Terminal (GND)
Mount plate
