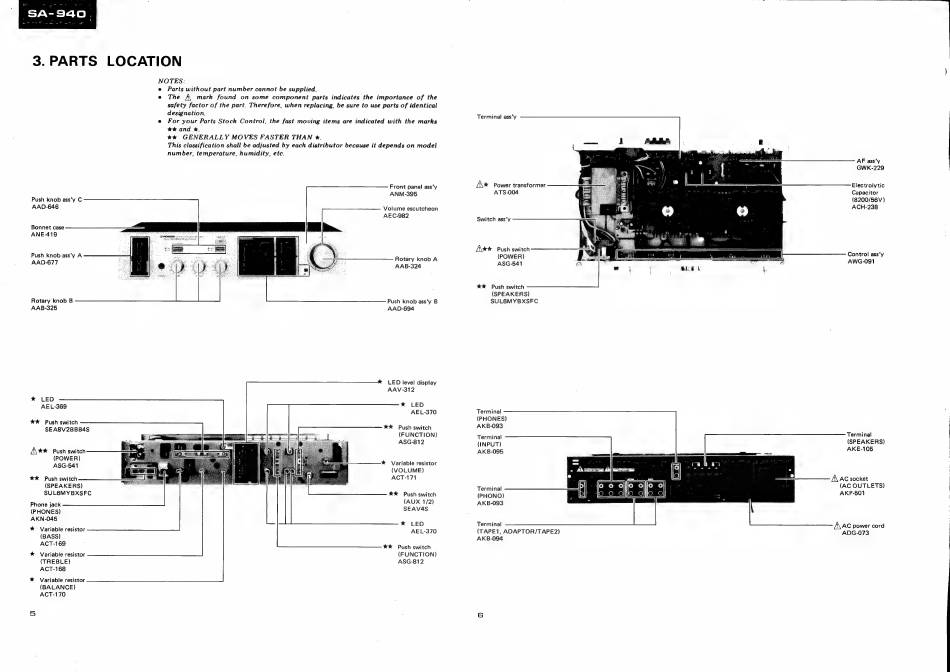

3. PARTS LOCATION
NOTES:
e Parts without part number cannot be supplied.
e The A mark found on some component parts indicates the importance of the
safety factor of the part. Therefore, when replacing, be sure to use parts of identical
designation.
e For your Parts Stock Control, the fast moving items are indicated with the marks
we and *.
wx GENERALLY MOVES FASTER THAN x.
This classification shall be adjusted by each distributor because it depends on model
number, temperature, humidity, etc.
Front panel ass'y
ANM-395
Push knob ass'y C
AAD-646
Volume escutcheon
AEC-982
Bonnet case
ANE-419
Push knob ass''y A
AAB-324
Rotary knob B Push knob ass'y B
AAB-325 AAD-694
* LED level display
AAV-312
* LED
AEL-369 * LED
AEL-370
*&k Push switch
(FUNCTION)
ASG-812
A\®* Push switch
POWER
rina
%* Variable resistor
(VOLUME)
%&k Push switch ACT-171
(SPEAKERS)
SUL6MYBXSFC *&k Push switch
Phone jack
Sa
(PHONES)
AKN-045
* LED
* = Variable resistor
AEL-370
(BASS)
ACT-169 %&*& Push switch
* Variable resistor
(FUNCTION)
(TREBLE) ASG-812
ACT-168
* Variable resistor
(BALANCE)
ACT-170
Terminal ass'y
AF ass'y
GWK-229
/\® Power transformer
ATS-004 Capacitor
(8200/56V)
ACH-238
Switch ass'y
Ak Push switch
(POWER)
ASG-541
Control ass'y
AWG-091
*&*& Push switch
(SPEAKERS)
SUL6MYBXSFC
Terminal
(PHONES)
AKB-093
. Terminal
patil
(SPEAKERS)
A\ac socket
(AC OUTLETS)
Terminal
(PHONO) Bea
AKB-093
