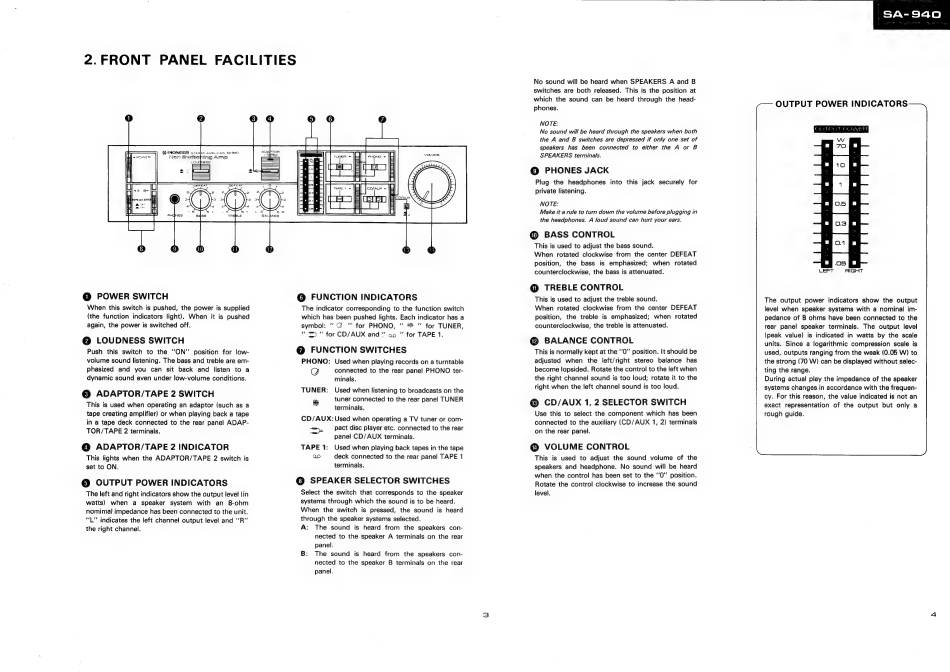

2.FRONT
PANEL
FACILITIES
WM PIONEER
sreako ame ue: em Sa-840
Non Switeshing Annp
i
O
.
@ POWER SWITCH
When this switch is pushed, the power is supplied
(the function
indicators light). When
it is pushed
again, the power is switched off.
@ LOUDNESS SWITCH
Push
this switch
to the 'ON'
position for low-
volume sound listening. The bass and treble are em-
phasized
and
you
can
sit back
and
listen to a
dynamic sound even under low-volume conditions.
© ADAPTOR/TAPE 2 SWITCH
This is used when operating an adaptor (such as a
tape creating amplifier) or when playing back a tape
in a tape deck connected to the rear panel ADAP-
TOR/TAPE 2 terminals.
@ ADAPTOR/TAPE 2 INDICATOR
This lights when the ADAPTOR/TAPE
2 switch is
set to ON.
@ OUTPUT POWER INDICATORS
The left and right indicators show the output level (in
watts)
when
a speaker
system
with
an
8-ohm
nomimal impedance has been connected to the unit.
"L" indicates the left channel output level and ''R"
the right channel.
@ FUNCTION INDICATORS
The indicator corresponding to the function switch
which has been pushed lights. Each indicator has a
symbol:
"@
" for PHONO,
" ## " for TUNER,
" =>" for CD/AUX and " ac " for TAPE 1.
@ FUNCTION SWITCHES
PHONO:
Used when playing records on a turntable
OQ
connected to the rear panel PHONO ter-
minals.
TUNER:
Used when listening to broadcasts on the
nm
tuner connected to the rear panel TUNER
terminals.
CD/AUX: Used when operating a TV tuner or com-
—
_ pact disc player etc. connected to the rear
panel CD/AUX terminals.
TAPE 1:
Used when playing back tapes in the tape
Qo
deck connected to the rear panel TAPE 1
terminals.
@ SPEAKER SELECTOR SWITCHES
Select the switch that corresponds to the speaker
systems through which the sound is to be heard.
When
the switch
is pressed,
the sound
is heard
through the speaker systems selected.
A:
The
sound
is heard
from
the speakers
con-
nected to the speaker A terminals on the rear
panel.
B:
The sound
is heard
from
the speakers
con-
nected to the speaker B terminals on the rear
panel.
No sound will be heard when SPEAKERS
A and B
switches are both released. This is the position at
which the sound
can be heard through the head-
phones.
NOTE:
No sound will be heard through the speakers when both
the A and B switches are depressed if only one set of
speakers
has been
connected
to either the A or B
SPEAKERS terminals.
@ PHONES JACK
Plug the headphones
into this jack securely
for
private listening.
NOTE:
Make it a rule to turn down the volume before plugging in
the headphones. A loud sound can hurt your ears.
@ BASS CONTROL
This is used to adjust the bass sound.
When
rotated clockwise from the center DEFEAT
position,
the bass
is emphasized;
when
rotated
counterclockwise, the bass is attenuated.
@ TREBLE CONTROL
This is used to adjust the treble sound.
When
rotated clockwise from the center DEFEAT
position,
the treble is emphasized;
when
rotated
counterclockwise, the treble is attenuated.
@ BALANCE CONTROL
This is normally kept at the '0' position. It should be
adjusted
when
the left/right
stereo
balance
has
become lopsided. Rotate the control to the left when
the right channel sound is too loud; rotate it to the
right when the left channel sound is too loud.
@ CD/AUX 1, 2 SELECTOR SWITCH
Use this to select the component which has been
connected to the auxiliary (CD/AUX 1, 2) terminals
on the rear panel.
@ VOLUME CONTROL
This is used to adjust the sound
volume
of the
speakers and headphone.
No sound will be heard
when the control has been set to the "0" position.
Rotate the control clockwise to increase the sound
level.
OUTPUT POWER INDICATORS
PUI TOUT
RCIWE FR]
ETAL
IT POCIWVE FR
Ww
The output power
indicators show the output
level when speaker systems with a nominal im-
pedance of 8 ohms have been connected to the
rear panel speaker terminals.
The output level
(peak value) is indicated
in watts by the scale
units. Since a logarithmic compression
scale is
used, outputs ranging from the weak (0.05 W) to
the strong (70 W) can be displayed without selec-
ting the range.
During actual play the impedance of the speaker
systems changes in accordance with the frequen-
cy. For this reason, the value indicated is not an
exact
representation
of the output
but only a
rough guide.
