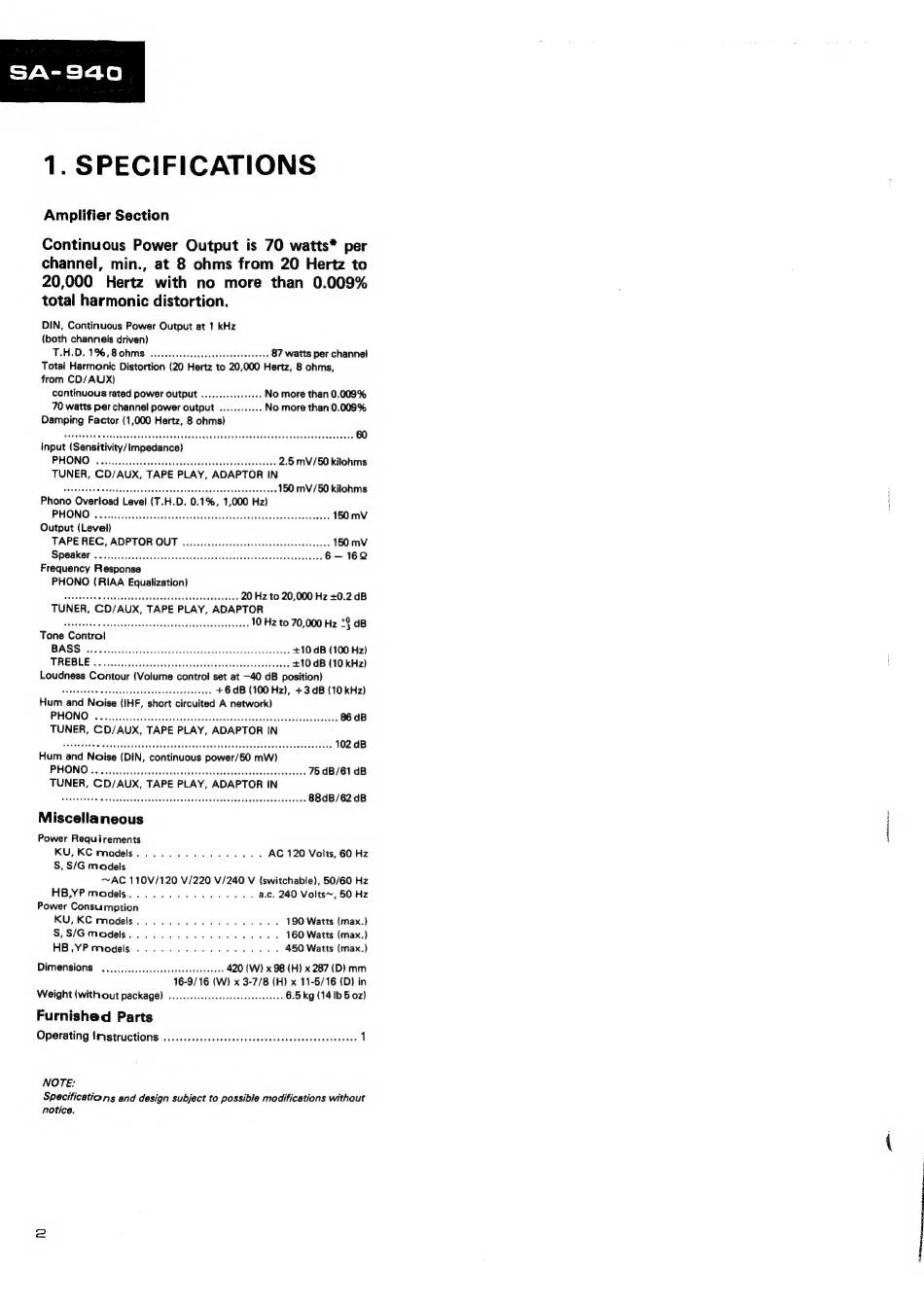

1. SPECIFICATIONS
Amplifier Section
Continuous Power Output is 70 watts* per
channel, min., at 8 ohms from 20 Hertz to
20,000 Hertz with no more than 0.009%
total harmonic distortion.
DIN, Continuous Power Output at 1 kHz
(both channels driven)
T.H.D. 196, 8OWMS ...... ce ccccceccccs esse een eenees 87 watts per channel
Total Harmonic Distortion (20 Hertz to 20,000 Hertz, 8 ohms,
from CD/AUX)
continuous rated power output ..............64. No more than 0.009%
70 watts per channel power output ............ No more than 0.009%
Damping Factor (1,000 Hertz, 8 ohms)
aaWoa sD aSecipicndiesueeesisuvalecaevds sedis eleven sauvucined snceancsnoeuyecbeees 60
Input (Sensitivity/lmpedance)
PHONO? wiaccsssdcesdscecdccsevssansenssecoederscesedesoes 2.5 mV/50 kilohms
TUNER, CD/AUX, TAPE PLAY, ADAPTOR IN
PbNslian tardies Vee'endee cdeaces sis Ciaeaes outedd ectedsctan Wes 150 mV/50 kilohms
Phono Overload Level (T.H.D. 0.1%, 1,000 Hz)
PHONO 5 cs vvschcccvernecvoncadveslas |a tecevavderes tevisudvecuastwewsters 150 mV
Output (Level)
TAPE REC, ADPTOR OUT ...........:::sssseeseeceeeeeeeeeeesecees 150 mV
Speakehseiss i fois cea teveecnvevenensSeunuctecavecdebecheses cvwdevacer 6-— 162
Frequency Response
PHONO (RIAA Equalization)
igddudei org chavo ceseitievvceuvssulweaeseneni sess 20 Hz to 20,000 Hz +0.2 dB
TUNER, CO/AUX, TAPE PLAY, ADAPTOR
eUhsspehiee.c douse wacedats sbceddeqaucauvacorctutve se 10 Hz to 70,000 Hz *$ dB
Tone Control
BASS (025 sncsiecths eebesteseets canes dececuabexsadsaloheueee +10 dB (100 Hz)
TREBLE isie sce, cccneceuvenusduhivschantetercenenchenseseveas +10 dB (10 kHz)
Loudness Contour (Volume control set at —40 dB position)
Veuuabube aces etuntetacdecs bens setveus dest +6 dB (100 Hz), +3 dB (10 kHz)
Hum and Noise (IHF, short circuited A network)
PHONO oon cccwtcteaeis cess tceseit cstcvenccnte cd vevaseeuis sWeaviseewsise 86 dB
TUNER, CD/AUX, TAPE PLAY, ADAPTOR IN
UgUt Reet ale Feed iowa ¥a beau ssetguacdesShersansCeaeeteesnsstecoe ys wlcebiesd 102 dB
Hum and Noise (DIN, continuous power/50 mW)
PHONO 75 dB/61 dB
TUNER, CD/A\
LAE LECUs NRE SU Suey eRe beas cave deodvebibesushstovesrecyesegestanesdel 88dB/62 dB
Miscellaneous
Power Requirements
KU, KC models... ........--2.. AC 120 Volts, 60 Hz
S, S/G models
~AC 110V/120 V/220 V/240 V (switchable), 50/60 Hz
HB,YP models... .....-...005. a.c. 240 Volts~, 50 Hz
Power Consumption
KU, KC models... ....0.0.2000 00% 190 Watts (max.)
S,S/Gmodels...........022. 00005 160 Watts (max.)
HB.YPmnodels...--- 2-2... ee eee 450 Watts (max.)
Dimensions 0... se. cccccccceceeeeeeeeetaee 420 (W) x 98 (H} x 287 (D) mm
16-9/16 (W) x 3-7/8 (H) x 11-5/16 (D) in
Weight (without package) ...........ccccssssecseessssees 6.5 kg (14 Ib 5 oz)
Furnished Parts
Operating Instructions ......cc.cccsseseeeeccesecceeencescceuaeseseees 1
NOTE:
Specifications and design subject to possible modifications without
notice.
