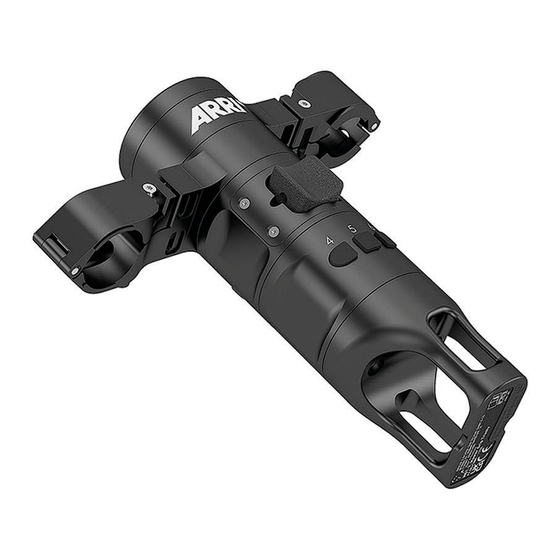

- Page 1 MGT-2 For TRINITY Gen. 1 and TRINITY Live USER MANUAL February 2024 • English D4510008071...
- Page 3 In no event shall ARRI or its subsidiaries be liable for or have a remedy for recovery of any special, direct, indirect, incidental, or consequential damages, including, but not limited to lost...
- Page 4 The information and intellectual property contained herein is confidential between ARRI and the client and remains the exclusive property of ARRI. If you find any problems in the documentation, please report them to us in writing. ARRI does not warrant that this document is flawless.
-
Page 5: Table Of Contents
2.2 MGT-1 and MGT-2 Interfaces ....................... 3 Introduction ..............................3.1 Recommended Accessories ......................... 3.2 Wiring MGT-2 TRINITY Gen. 1 and TRINITY Live ................4 To Assign the MGT-2 ..........................5 To Calibrate the MGT-2 ..........................10 6 Axis Adjustments ............................12 6.1 Tilt Axis Adjustments.......................... -
Page 6: About This Document
Our advanced service training courses are designed to transfer detailed knowledge about how to service and repair all types of ARRI products and give you permanent access to detailed service instructions, special tools and service parts. To learn more, please visit... -
Page 7: Technical Data
2.12 in ⌀ 19 mm ⌀ 24 mm 0.75 in 0.96 in Weight MGT-2 0,5 kg / 1.10 lb 2.2 MGT-1 and MGT-2 Interfaces LBUS Lemo 0B 4pin (24 V max. 3 A) Pin 1 Ground Pin 2 CAN Low... -
Page 8: Introduction
TRINITY Gen.1 and TRINITY Live systems. As the MGT-2 has two digital joysticks, the tilt axis and the zoom can be controlled simultaneously. The LBUS enables the zoom to be controlled either via a cforce mini motor or via LCUBE CUB-2. -
Page 9: To Assign The Mgt-2
To Assign the MGT-2 | 4 4 To Assign the MGT-2 Press OK to enter the menu. Press Down until you reach Settings. Press OK to call up the joystick selection. Use Up and Down to cycle through the available joysticks. -
Page 10: To Calibrate The Mgt-2
5 | To Calibrate the MGT-2 5 To Calibrate the MGT-2 Press OK to enter the menu. Press OK to enter the Calibration menu. Press Down Until you reach Joystick. Press YES to start the Zero calibration. Now the Zero calibration will be performed. - Page 11 To Calibrate the MGT-2 | 5 In the second step, move the lower joystick J-2 to the right. In the second step, move the lower joystick J-2 to the left. Once complete, Calibration done will appear at the bottom of the screen.
-
Page 12: Axis Adjustments
Press Down until you have reached the desired setting. Press OK to enter the desired setting. NOTICE! Joystick, allows you to select which of the two joysticks is responsible for tilting or zooming. Recommended Values Tilt Speed 20 – 40% Window MGT-2 User Manual... -
Page 13: Zoom Axis Adjustments
Press Down until you have reached the desired setting. Press OK to enter the desired setting. NOTICE! Joystick, allows you to select which of the two joysticks is responsible for tilting or zooming. Recommended Values Zoom Speed 5 – 20% Window MGT-2 User Manual... - Page 14 Notes MGT-2 User Manual...
