FLUE-GUARD INSTALLATION PROCEDURE (Ver.2)
1
2
STANDARD
1
OUTER FLUE-GUARD
2
INNER FLUE-GUARD
3
M5x12 BUTTON-HEAD SOCKET SCREW
4
NON-OSCAR FLUE-GUARD BOTTOM BRACKET (OPTIONAL)

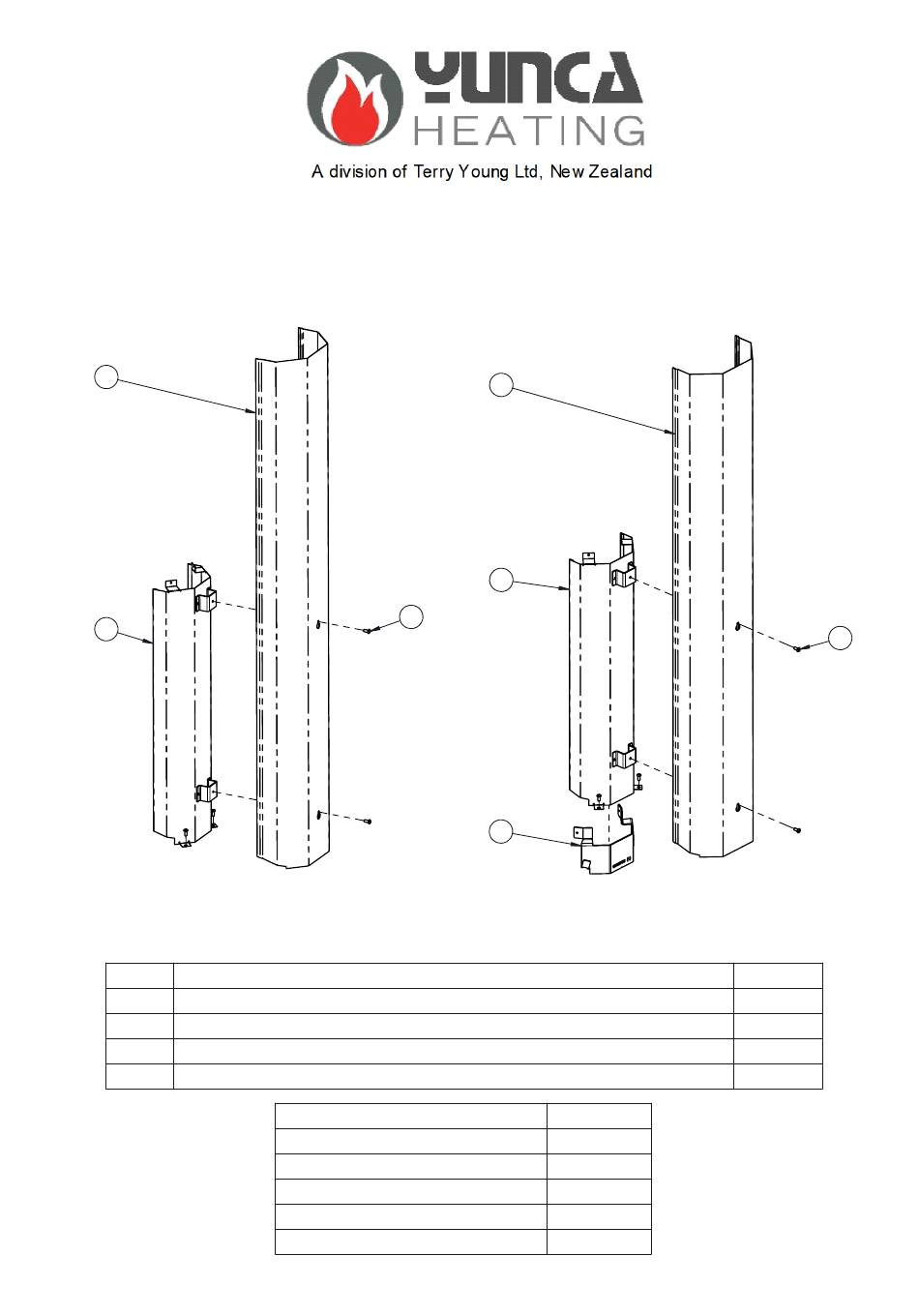

ASSEMBLY DRAWING REF. No.: 0003766
OSCAR FREESTANDING WOODBURNER
(A)
TOOLS REQUIRED
CORDLESS DRILL
3.3mm DIA. DRILL BIT
3mm ALLEN KEY
3.2mm Dia. POP-RIVET (73STST 4-1)
1
2
3
(OPTIONAL)
4
PARTS DESCRIPTION
RIVETER
NON-OSCAR (RETROFIT)
(B)
QUANTITY
1
1
1
1
4
www.yunca.co.nz
3
QUANTITY
1
1
4
1
Page 1 of 3
Advertisement
Related Manuals for Yunca Heating OSCAR
Summary of Contents for Yunca Heating OSCAR
- Page 1 (OPTIONAL) STANDARD NON-OSCAR (RETROFIT) PARTS DESCRIPTION QUANTITY OUTER FLUE-GUARD INNER FLUE-GUARD M5x12 BUTTON-HEAD SOCKET SCREW NON-OSCAR FLUE-GUARD BOTTOM BRACKET (OPTIONAL) TOOLS REQUIRED QUANTITY CORDLESS DRILL 3.3mm DIA. DRILL BIT 3mm ALLEN KEY RIVETER 3.2mm Dia. POP-RIVET (73STST 4-1) ASSEMBLY DRAWING REF. No.: 0003766 www.yunca.co.nz...
- Page 2 A. BASIC INSTALLATION OF STANDARD OSCAR FLUE-GUARD STEP 1: STEP 2: Position the Inner Flue-guard at the back of the flue as shown Using the rivet holes above the flue guard, drill a 3.3mm diameter below then screw the bottom side M5x12 Buttonhead socket hole on each sides of the flue then install the 3.2mm Pop-rivets...
- Page 3 B. INSTALLATION OF FLUE-GUARD FOR NON-OSCAR UNITS STEP 1: STEP 2: Mark the centre of top of the fireplace behind the flue, then place Slide the Inner flue-guard into the bottom bracket clips and align the centre of the bracket on the marked line. When set, drill a 3.3mm diameter hole on the flue thru the rivet holes of the...
