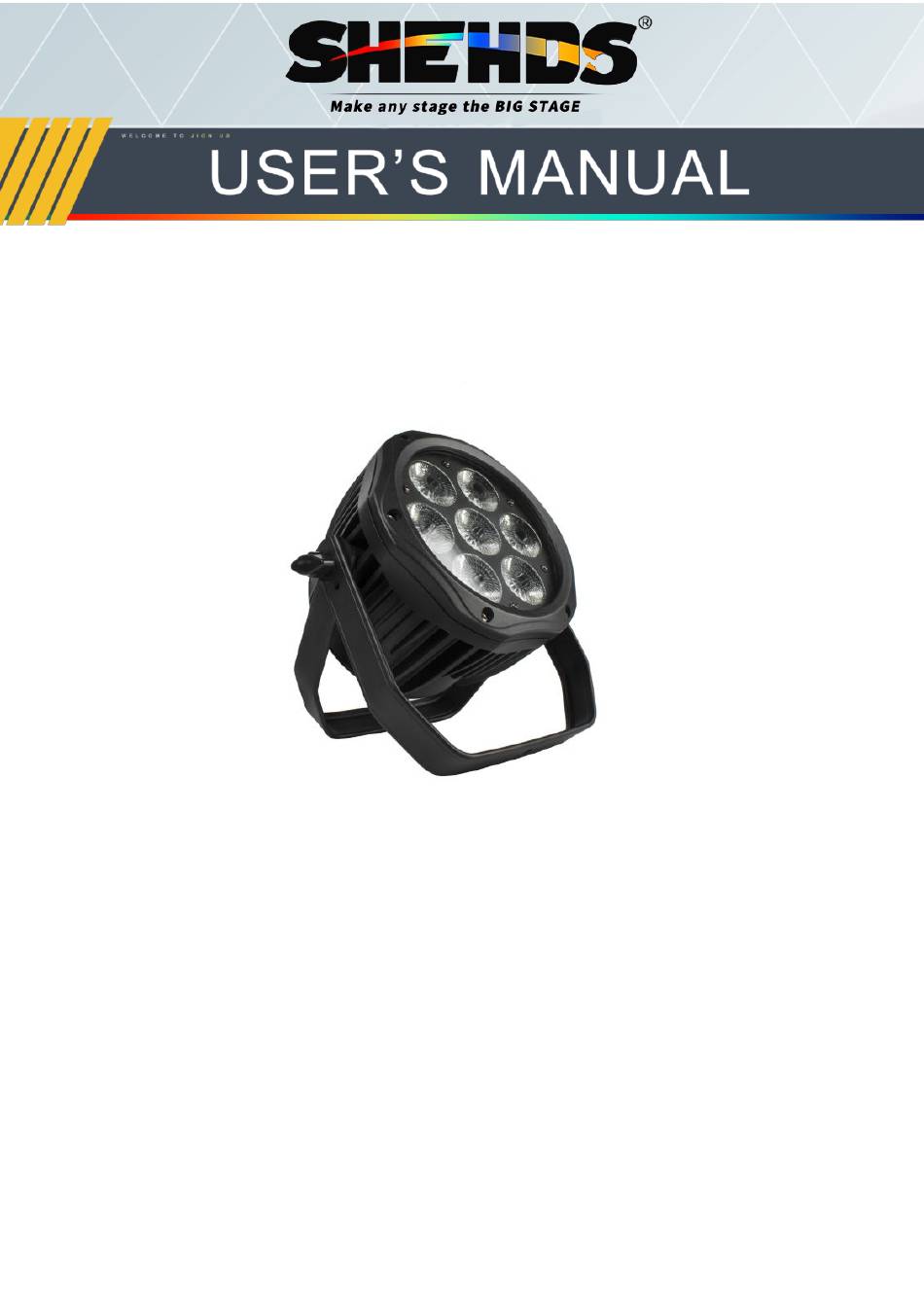

- Page 1 Waterproof LED Par 7x18W Light FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOU INITIAL START - UP! www.shehds.com...
-
Page 2: Table Of Contents
12. DMX address code ................... 10 13. DMX last state ..................11 14. Observe the DMX channel value ............11 15. Sound control mode ................11 16. DMX Channel .................... 12 17. Fault handling ..................12 18. Accessories list ..................13 www.shehds.com... -
Page 3: Maintenance
Do not touch the device’s housing bare hands during its operation (housing becomes hot)! For replacement use lamps and fuses of same type and rating only. CAUTION! Be careful with your operations. With a high voltage you can suffer a dangerous electric shock when touching the wires! www.shehds.com... -
Page 4: Operating Determination
The lamp must never be ignited if the objective-lens or any housing-cover is open, as discharge lamps may explode and emit a high ultraviolet radiation, which may cause burns. The maximum ambient temperature 45°C must never be exceeded. www.shehds.com... -
Page 5: Attention Item
The operator has to make sure that safety-relating and machine-technical installations are approved by a skilled person once a year. Allow the fixture to cool for ten minutes before handling. www.shehds.com... - Page 6 The fixture can be placed directly on the stage floor or rigged in any orientation on a truss without altering its operation characteristics. For securing a fixture to the truss, install two safety wires which can hold at least 10 times the weight of the fixture. Use only the safety wires with screw-on carabines. www.shehds.com...
-
Page 7: Dmx-512 Connection
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120 Ω resistor between Signal (–) and Signal (+) into a 3-pin (5-pin) XLR-plug and plug it in the DMX-output of the last fixture. www.shehds.com... -
Page 8: Technical Specifications
The interior of the fixture should be cleaned at least annually using a vacuum-cleaner or an air-jet. Remove dust and dirt from the fans and cooling vents using a soft brush and vacuum-cleaner. Important! Check the air filters periodically and clean before they become clogged! www.shehds.com... -
Page 9: Replacing The Fuse
- [MENU] used to move back to the previous screen - [UP] used to move up on the previous page. - [DOWN] used to move down on the next page. - [ENTER] used to save adjusted values, to leave menu or to perform desired action. www.shehds.com... -
Page 10: Control Menu Map
White Dimmer v000-v255 0-255 Amber Dimmer y000-y255 0-255 Violet Dimmer p000-p255 0-255 Flash /Strobe FK01-FK99 01-99 Color Choice CL01-CL08 01-08 Color jump change CC01-CC99 01-99 Color Gradual change DE01-DE99 01-99 Color pulse change CP01-CP99 01-99 Sound Control mode Sou1-sou9 www.shehds.com... -
Page 11: Dmx Settings
ENTER button to confirm, the current mode will be displayed on sou1-sou9 the display, and use the UP/DOWN button to select: , press the ENTER button to run mode. wait 30 seconds to automatically exit the menu mode. www.shehds.com... -
Page 12: Dmx Channel
Strobe 0-255 0-250 Macro mode 251-255 Sound control mode 0-250 Macro speed CH10 DMX Channel Summary-6 Channels Mode Channel Value Function Red Dimmer 0-255 Green Dimmer 0-255 Blue Dimmer 0-255 White Dimmer 0-255 Amber Dimmer 0-255 Violet Dimmer 0-255 www.shehds.com... -
Page 13: Fault Handling
C. A channel fails 1.The stepper motor or motor lead may be damaged. 2.The drive circuit of the motor may be damaged. Accessories list Screw x 2 Fixed lock x 1 Power cable x 1 Dmx512 cable x 1 Manual x 1 www.shehds.com...
