Summary of Contents for Laguna Tools SmartShop CBX
Page 1

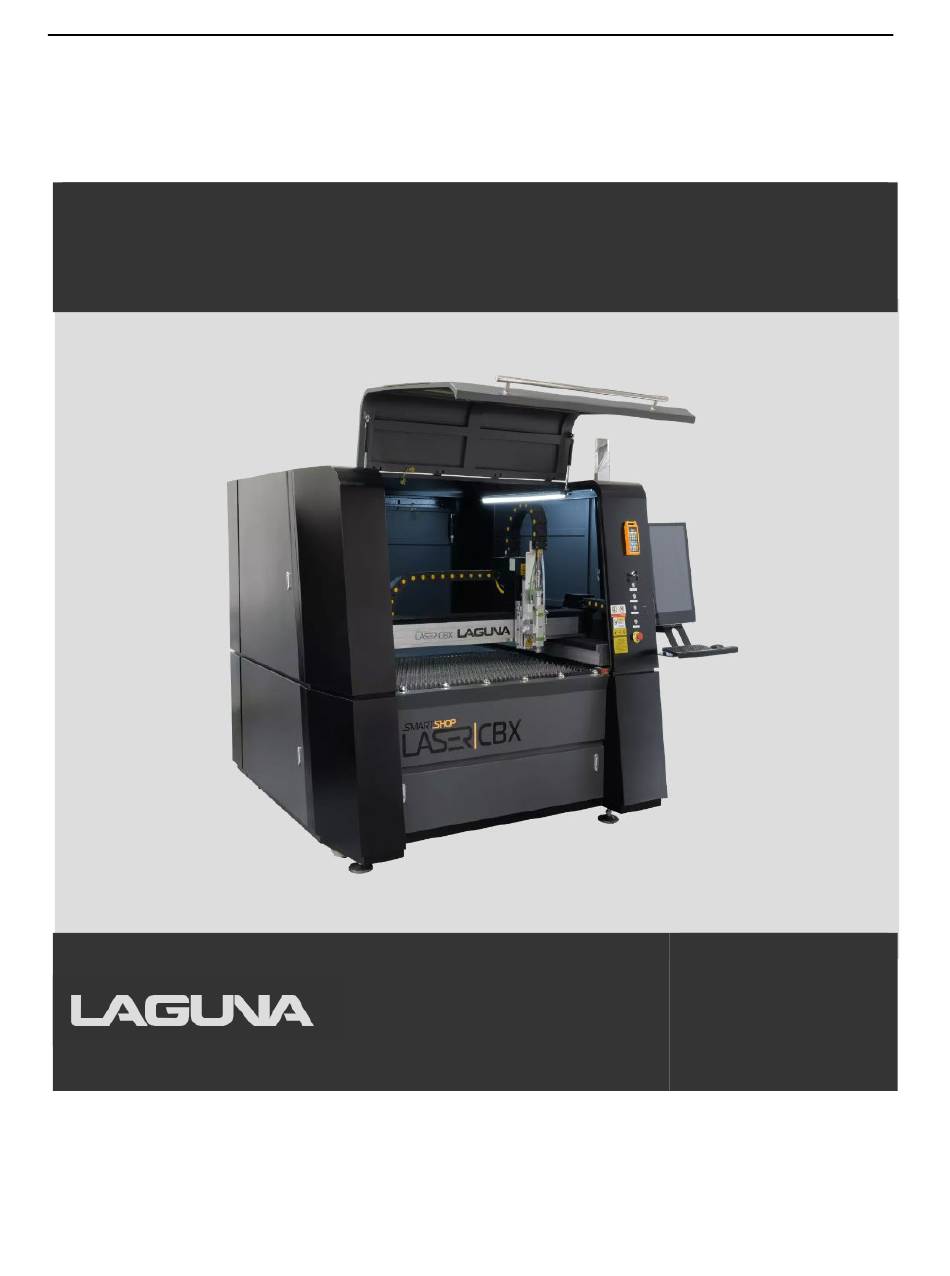

SmartShop CBX Fiber Laser SmartShop CBX Fiber Laser Laguna Tools 744 Refuge Way Grand Prairie, lagunatools.com...
Page 2
LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. DISCLAIMER Laguna Tools is not responsible for errors or omissions. Specifications subject to change. Machines may be shown with optional accessories. Revision 02 (11/02/2023)
Additional Safety Information ......................8 Electrical and Gas Safety ................10 Electrical ............................10 Gas ..............................10 Receiving the Machine ..................11 SmartShop CBX Overview ................13 Features ............................13 Components ..........................13 Machine Placement ..................16 Placement ............................. 16 Lighting ............................
Page 4
SmartShop CBX Fiber Laser Unpacking the Machine......................... 19 Leveling the Machine ........................20 Power Supply Installation ......................21 Laser Head Installation ......................... 36 Display Swivel Arm ........................60 Chiller Installation .......................... 78 6.10 Connecting the Main Power Supply ....................91 6.11...
Laguna Tools equipment is designed for specific and limited applications. This product should neither be modified nor used for any application other than those for which it was designed.
SmartShop CBX Fiber Laser A helpful tip from Laguna Tools staff. Safety Warnings 1. Failure to comply with safety instructions may lead to personal injury and/or damage to the equipment. Do not operate the machine unless familiar with all safety instructions, warnings, and signs.
Additional Safety Information 1. All motion parameters have been set up by Laguna Tools. If any modifications are required, please have a professional operator perform the changes. 2. Safety Signs should be attached to places that are easy to spot.
Page 9
21. Never stand on the machine. Serious injury may occur if the machine is tipped or if the cutting tool is unintentionally contacted. 22. Consult the Owner’s Manual or Laguna Tools for recommended accessories. Using improper accessories will increase the risk of serious injury or damage.
SmartShop CBX Fiber Laser 2.0 Electrical and Gas Safety Electrical DANGER Before connecting the machine to the power source, verify that the correct electrical requirements are met. Consult a qualified electrician if you are unsure of proper setup. The CBX requires permanent, direct power installed by a qualified electrician familiar with industrial best practices.
Contact Laguna Tools Customer Service as soon as possible in case of damage. It is advisable to photograph and document any shipping damage. The original packaging is required to return damaged equipment to Laguna Tools.
SmartShop CBX Fiber Laser 4.0 SmartShop CBX Overview The Laguna Tools Smartshop® Laser/CBX is equipped with an enclosed working area preventing dust and eliminating light pollution. It also comes with a casting beam for increased rigidity and stability. For smooth operation, the CBX uses water/forced air cooling, a dust prevention system, and an automatic lubrication system to ensure longevity and consistency.
Page 14
One (1) IPG specification sheet • • One (1) laser lead cable (yellow) One (1) IPG power supply • One (1) display mount/keyboard stand • One (1) pair of overhead LED light fixtures • One (1) SmartShop CBX laser machine •...
SmartShop CBX Fiber Laser 5.0 Machine Placement When unpacking the SmartShop CBX Fiber Laser, separate all enclosed items from the packing materials and inspect each for damage. Save the packaging materials until all issues concerning missing or damaged items have been resolved.
SmartShop CBX Fiber Laser 6.0 Setup & Assembly WARNING To avoid and prevent injury, setup problems, and potential damage to the machine, read through the entire setup section prior to proceeding. NOTE It is highly recommended that two (2) people assemble the machine.
SmartShop CBX Fiber Laser Gas Requirements DANGER Improper use of gas can cause death or serious injury. Consult a professional if you are unsure of proper gas safety. This machine requires the use of Oxygen (O2) and Nitrogen (N2) gas for proper use. We recommend having a six (6) pack of each tank.
SmartShop CBX Fiber Laser Before moving the CBX machine to a desired location, verify that there is 4 feet of clearance on all sides of the machine. 1. After unloading the machine off the deliver trailer, move it to the desired location.
SmartShop CBX Fiber Laser Power Supply Installation DANGER DO NOT plug in the machine until setup and assembly is complete. NOTE It is recommended that two (2) people assemble the machine. Tools needed: • Short 5mm Allen key • Long 5mm Allen key •...
Page 22
SmartShop CBX Fiber Laser 2. Open the control panel door, which is the lower door on the right side of the machine. Figure 6–2 3. Find the green Molex style plug and the serial plug. a. Cut the zip ties with the cutting tool and stretch out the cables.
Page 23
SmartShop CBX Fiber Laser 4. “Feed” the stretched-out cables through the opening near the back of the machine. a. Set them down once they are pulled through. Figure 6–4 Figure 6–5 5. Locate the PWM cable • Large diameter chiller tubing •...
Page 24
SmartShop CBX Fiber Laser 6. Open and remove the power supply door, located on the back of the machine in the bottom left. (This will help clear the work area). a. Remove the door by pulling down and holding the top pin and moving away from the hole.
Page 25
SmartShop CBX Fiber Laser 8. “Feed” the excess cables behind the control panel. Figure 6–11 9. “Feed” the stiff wires through the holes that are below the blue chiller connectors. Pull them behind the control panel, near the excess cables.
Page 26
SmartShop CBX Fiber Laser 11. Insert the two stiff wires into both blue tubes. Figure 6–14 12. Tape both tubes to the wires. This will act as a “snake” Figure 6–15...
Page 27
SmartShop CBX Fiber Laser 13. Pull the tubes through the holes. Figure 6–16 Figure 6–17 14. Remove the tape from the leads. 15. On the chiller, you will find two hose clamps. Cut the zip tie and remove the clamps.
Page 28
SmartShop CBX Fiber Laser 16. Place a hose clamp on each tube. a. To avoid confusion later, label one tube, “inlet” and the other “outlet”. To help identify each tube, blow into one end of tube while feeling the air come out the other end.
Page 29
SmartShop CBX Fiber Laser 18. Move the power supply to the back of the machine near the power supply cavity. CAUTION The power supply is heavy. It is highly recommended to use a pallet truck or two (2) people to move it.
Page 30
SmartShop CBX Fiber Laser 20. Press fit the water INLET tube to the power supply OUTLET connection. a. Verify the tube is tight and fasten the hose clamp on the connection. Figure 6–22 21. Press fit the water OUTLET tube to the power supply INLET connection.
Page 31
SmartShop CBX Fiber Laser 22. Connect the Ethernet cable to the power supply. Figure 6–24 23. Connect the green Molex style plug to the power supply. Figure 6–25 a. Verify the plug is in all the way and secure it by...
Page 32
SmartShop CBX Fiber Laser Figure 6–27 24. Connect the PWM cable to the power supply. Figure 6–28 a. Verify the cable is fully inserted. Use a small flathead screwdriver to tighten the screws on either side of the cable. Figure 6–29...
Page 33
SmartShop CBX Fiber Laser 25. Carefully insert the yellow laser lead cable into the cavity and pull through the backside opening and place on top of the cavity. Figure 6–30 Figure 6–31...
Page 34
SmartShop CBX Fiber Laser 26. Slide the power supply into the cavity. CAUTION The power supply is heavy. It is highly recommended to have two (2) people slide the machine Figure 6–32 Figure 6–33 Figure 6–34...
Page 35
SmartShop CBX Fiber Laser 27. Once the power supply is in place, connect the serial cable to the power supply. (You may have to get inside the machine and reach through the cavity.) a. Verify the cable is fully inserted.
SmartShop CBX Fiber Laser Laser Head Installation 28. Use an Allen key to remove the screws on the gantry cover. Figure 6–37 a. Remove the laser lead line cover. Figure 6–38 Figure 6–39...
Page 37
SmartShop CBX Fiber Laser 29. Insert the cable through the hole form the bottom. Figure 6–40 Figure 6–41...
Page 38
SmartShop CBX Fiber Laser 30. Pull through enough laser lead line so that it can reach the laser head. This line will be placed into the tracks. Figure 6–42 31. Place the lead line along the gantry and track as shown in figures 6-44 and 6-45.
Page 39
SmartShop CBX Fiber Laser 32. Place the cable along the track as shown in figure 6-45 and 6- 46. (This is the general area the wire will be placed in the track). Figure 6–45 Figure 6–46...
Page 40
SmartShop CBX Fiber Laser 33. Use an Allen key to remove the screws on the cover over the gantry. Figure 6–47 a. Remove the cover Figure 6–48...
Page 41
SmartShop CBX Fiber Laser 34. On the cable track covers, insert a small flathead screwdriver into the hole on the cover. a. Use the screwdriver to pry the covers off. CAUTION DO NOT break the covers. DO NOT cut/nick Figure 6–49 the cable under the covers.
Page 42
SmartShop CBX Fiber Laser 36. Once the covers are removed, position the laser lead line into the track. a. Place the end of the laser lead in the position shown in figure 6-53. Figure 6–52 37. Push the gantry forward for better access for laser head installation.
Page 43
SmartShop CBX Fiber Laser 40. Align the laser head holes to the four outer bracket holes. Figure 6–54 41. Use an Allen key to tighten the screws. Figure 6–55...
Page 44
SmartShop CBX Fiber Laser 42. Remove the tape and black cover on the laser head and laser lead. a. Save the covers. Use them whenever the components are not in use. b. Take note of the red dot position on the laser Figure 6–56...
Page 45
SmartShop CBX Fiber Laser 44. Locate the green and black line. a. The green line (12 hole) is for the auto focus sensors. b. The black line (8 hole) is for the autofocus motor. Figure 6–58 45. Remove the connector cover and insert the green line (12 hole) into the left-side connection.
Page 46
SmartShop CBX Fiber Laser 47. Locate the other green line (4 hole) a. This line is for the crash and capacitance sensor. Figure 6–61...
Page 47
SmartShop CBX Fiber Laser 48. Insert this green line (4 hole) into the connection shown in Figure 6-62. Figure 6–62 49. Locate the longer clear tube on the laser head.
Page 48
SmartShop CBX Fiber Laser 50. Insert this tube into the lower compression fitting shown if Figure 6-63 Figure 6–63 51. Locate the two short clear tubes. a. Locate their connections as well. Figure 6–64...
Page 49
SmartShop CBX Fiber Laser 52. Turn the metal end of the connection counterclockwise and pull it off. HOLD ON TO THE METAL END. DO NOT LOSE THIS PIECE. Figure 6–65 a. Slide this piece on the tube as shown in Figure 6-66.
Page 50
SmartShop CBX Fiber Laser a. Press fit the tube on the connection port (It does not matter which tube goes where; the tubes form a loop.) Figure 6–68 53. Slide the metal end down and turn clockwise to tighten. Figure 6–69...
Page 51
SmartShop CBX Fiber Laser 54. Do this to the other side as well. a. Verify the connections are fully tightened. Do not overtighten them. Figure 6–70 55. Locate the gas air assist line. Figure 6–71 a. The connection is made at the lower part of the laser head.
Page 52
SmartShop CBX Fiber Laser 56. Remove the black cover and insert the air assist line into the connection fitting shown in Figure 6-73 a. Verify the air assist line is fully inserted. Figure 6–73 57. Slide the gantry cover back.
Page 53
SmartShop CBX Fiber Laser 58. With a clean rag, wipe off all the cosmoline lubricant that is on the metal below. (the lubricant helps prevent corrosion during shipping). Figure 6–75 Figure 6–76 59. Do this to the laser head gantry rail as well.
Page 54
SmartShop CBX Fiber Laser 60. On the front of the machine, place the laser lead line cable inside the track. 61. In this area, replace the covers by press fitting them onto the track. Figure 6–78 Figure 6–79 62. Push the gantry to the back of the machine Figure 6–80...
Page 55
SmartShop CBX Fiber Laser You will now need to take apart a track link to slide the laser lead line cable into the track. 63. Using a flathead screwdriver, pop out two or three yellow pins to free one of the links.
Page 56
SmartShop CBX Fiber Laser Figure 6–83 64. Once a link is free, place the laser lead line into the cable channel. Figure 6–84 65. Replace the links and reinsert the yellow pins. Figure 6–85...
Page 57
SmartShop CBX Fiber Laser 66. Position the laser lead line into the rest of the track. Figure 6–86 67. Verify that the laser lead line is correctly positioned inside the full length of the track and replace all the track covers by push fitting them into position.
Page 58
SmartShop CBX Fiber Laser 70. Coil the cable into the top compartment. Figure 6–89 71. Replace both gantry covers. a. Tighten the screws with an Allen key. Figure 6–90 Figure 6–91...
Page 59
SmartShop CBX Fiber Laser 72. Reinstall the power supply cavity cover. a. Tighten the screws with an Allen key. Figure 6–92 73. Reinstall the rear machine cover. a. Tighten the screws with an Allen key. Figure 6–93 Figure 6–94...
SmartShop CBX Fiber Laser 74. Put the power supply cavity door back on and close the door. Figure 6–95 Display Swivel Arm NOTE It is recommended to use two people to install the swivel arm.
Page 61
SmartShop CBX Fiber Laser 75. On the inside of the machine, use an Allen key to remove the screws on swivel arm mount cover. Figure 6–96 76. The swivel arm will be placed on the machine wall here and mounted with Allen screws.
Page 62
SmartShop CBX Fiber Laser 77. Use an Allen key to remove the screws from the swivel arm. (hold on to the screws) Figure 6–98 78. Align the holes and hold the swivel flat against the machine wall. Figure 6–99 79. Use an Allen key to tighten the screws from the back side.
Page 63
SmartShop CBX Fiber Laser 80. Locate the HDMI and power cable that came with the swivel arm. 81. “Feed” these cables through the center hole of the swivel arm. Figure 6–101 82. Use a Phillips screwdriver to remove the four mounting screws.
Page 64
SmartShop CBX Fiber Laser 83. Align the mount screw holes to the swivel arm and use a Phillips screwdriver to tighten the screws in place. Figure 6–103 84. Locate the monitor and use an Allen key to remove the screws on the back.
Page 65
SmartShop CBX Fiber Laser 86. Use a Philips screwdriver to remove the screws on the back of the monitor cover. Figure 6–106 87. “Feed” the cables through the center hole and plug in the HDMI and connection cables to the...
Page 66
SmartShop CBX Fiber Laser 88. Replace the cover a. Use a Phillips screwdriver to replace the screws. 89. Locate the keyboard and mouse and retrieve the USB dongle from the bottom of the mouse. Figure 6–109...
Page 67
SmartShop CBX Fiber Laser 90. Insert the dongle into one of the machine’s USB ports. Figure 6–110 91. In the front of the electrical compartment, you’ll find a bundle of wires which is shown in Figure 6-111. 92. Remove the wires from the machine and extend and place them on the ground.
Page 68
SmartShop CBX Fiber Laser Figure 6–112 93. Place the PC in the machine. Figure 6–113 Figure 6–114...
Page 69
SmartShop CBX Fiber Laser 94. Insert the SCSI Plug 1 into the port. a. Fully tighten by turning the knobs clockwise on either side. Figure 6–115 1. Insert the Remote ON/OFF plug into the port. Figure 6–116...
Page 70
SmartShop CBX Fiber Laser 2. Insert the SCSI plug 2 into the port. a. Fully tighten by turning the knobs clockwise on either side. Figure 6–117 3. Insert the Ethernet cable into the port. Figure 6–118...
Page 71
SmartShop CBX Fiber Laser 4. Insert USB 1 and USB 2 into both ports. Figure 6–119 95. Insert the machine communication plug into the port. a. Use a small flathead screwdriver to tighten the screws on either side. Figure 6–120...
Page 72
SmartShop CBX Fiber Laser 5. Insert the HDMI cable into the port. Figure 6–121 6. Insert the power cable into the port. Figure 6–122...
Page 73
SmartShop CBX Fiber Laser Figure 6–123 7. Move the PC to the front of the cavity. Figure 6–124 8. Replace the swivel arm mount cover. a. Use the Allen key to tighten the screws. Figure 6–125...
Page 74
SmartShop CBX Fiber Laser 9. Locate the table cabinet LED lights. Figure 6–126 10. There are two electrical plugs on each side. Plug these into the ends of the light. Figure 6–127 Figure 6–128...
Page 75
SmartShop CBX Fiber Laser 11. Press the light fixture into the light mount brackets Figure 6–129 12. Do this to the other side as well. (one side has only one plug) Figure 6–130 13. To mount the status light, use an Allen key to remove the screws on top of the machine.
Page 76
SmartShop CBX Fiber Laser 14. Insert the connection cable down through the hole. Figure 6–132 15. Use an Allen key to tighten down the screws on the status light. Figure 6–133...
Page 77
SmartShop CBX Fiber Laser 16. Inside the cabinet, locate the 4- pin connection plug and connect them together. (these are for the status light) Figure 6–134 Figure 6–135 17. Once connected place down the side of the machine. Figure 6–136...
SmartShop CBX Fiber Laser Chiller Installation 1. Move the chiller to the back of the machine. 2. The low side indicated with the letter “L” will cool the power supply. Figure 6–138 3. The high side indicated by the letter “H” will cool the optic system.
Page 79
SmartShop CBX Fiber Laser 4. Locate the machine water OUTLET hose and connect it to the chiller INLET (L) connector. Figure 6–140 5. Locate the machine water INLET hose and connect it to the chiller OUTLET (L) connector. Figure 6–141...
Page 80
SmartShop CBX Fiber Laser 6. Use a small Phillips screwdriver to tighten the hose clamp screws and secure both hose clamps. Figure 6–142 7. Locate the optic cooling lines (smaller blue tubes) and insert them into the machine. a. These form a loop with...
Page 81
SmartShop CBX Fiber Laser 8. Connect the other ends to inlet (H) and outlet (H) chiller machine. a. These form a loop with the laser head, so it does not matter which hose goes where. 9. Locate the chiller alarm cable.
Page 82
SmartShop CBX Fiber Laser 10. Connect the 4-prong end of the alarm cable to the machine. a. Rotate the metal end clockwise to tighten. Figure 6–145 11. Connect the 3-prong end to the chiller. a. Rotate the metal end clockwise to tighten.
Page 83
SmartShop CBX Fiber Laser 6.9.1 Chiller Power Cable 1. From the control panel side, “feed” a stiff wire through the back hole that is next to the alarm cable. Figure 6–147 Figure 6–148 2. Tape the chiller power cable to the stiff wire.
Page 84
SmartShop CBX Fiber Laser 3. “Feed” the chiller power cable through. a. Remove the tape Figure 6–150 4. Locate the power cord for the chiller the tape was removed from. a. It’s a 220 volt single phase connection. Figure 6–151...
Page 85
SmartShop CBX Fiber Laser Close up of terminals. Figure 6–152 5. Insert the tan wire into the L1 block terminal and use a small Phillips head screwdriver to tighten the lead. Figure 6–153 Figure 6–154...
Page 86
SmartShop CBX Fiber Laser 6. Insert the blue wire into the L2 block terminal and use a small flathead screwdriver to tighten the lead. Figure 6–155 Figure 6–156...
Page 87
SmartShop CBX Fiber Laser 96. Locate the control panel ground wire and pair it with the chiller ground wire. a. The ends have a u-shape Figure 6–157 Figure 6–158 7. Connect both wires to the same ground wire terminal. a. Use a small Philips...
Page 89
SmartShop CBX Fiber Laser 8. Locate the PWM connection cable which is marked with a P+ and P-. a. They are going to be lying in the cabinet. b. These leads will be plugged into the terminals in the control panel.
Page 90
SmartShop CBX Fiber Laser 9. Insert the P+ (positive) lead into the terminal shown in Figure 6- a. Use a small flathead screwdriver to tighten the lead into the terminal. b. Verify the lead is secure in the terminal. Figure 6–164 10.
SmartShop CBX Fiber Laser 12. Coil up the blue Ethernet cable and place it inside the cabinet. a. This cable is for diagnostic use. Figure 6–167 Figure 6–168 6.10 Connecting the Main Power Supply 1. Locate the main power supply wires.
Page 92
SmartShop CBX Fiber Laser 2. Insert the brown wire into the L2 block terminal. BROWN WIRE HERE a. Use a small flathead screwdriver to tighten the lead. Figure 6–169 3. Insert the blue wire into the in the area shown in Figure 6-171.
Page 93
SmartShop CBX Fiber Laser Verify all the electrical connections are secure. 4. Tuck away all the cords inside the cabinet. Figure 6–171 Figure 6–172...
SmartShop CBX Fiber Laser 6.11 Handheld Controller 5. Attach the controller to the front of the machine. a. It is magnetic Figure 6–173 6. Plug the antenna USB into the USB port on the PC. Figure 6–174...
Page 95
SmartShop CBX Fiber Laser 7. Attach the antenna to the inside of the cabinet. a. The antenna is magnetic Figure 6–175 Figure 6–176 Figure 6–177...
SmartShop CBX Fiber Laser 8. Close the control panel door. Figure 6–178 6.12 Gas Connection and hookup Connect the gas hoses to the gas ports on the back of the machine. Press fit the hoses and then use a crescent wrench to turn the nut clockwise to tighten.
Page 97
SmartShop CBX Fiber Laser Connect the hoses to ports on the regulators. (verify that the hoses match up to their respected ports on the machine and regulators) DANGER DO NOT open the Figure 6–179 open the gas at this time. Only open the...
Page 98
SmartShop CBX Fiber Laser 9. Fill the chiller with 4 gallons (15 Liters) of distilled water or until the full level is reached. Figure 6–181 Figure 6–182...
Page 99
SmartShop CBX Fiber Laser 10. Connect the machine power lines to a triple phase 220 Volt outlet. Figure 6–183 11. After connected to power, turn the main power switch clockwise to where the switch is vertical. a. The machine should now have power engaged.
Page 100
SmartShop CBX Fiber Laser 12. Turn the chiller power switch clockwise to turn it on. a. The machine will make a series of beeps. This is normal. It is the alarm. The beeps will stop once water has circulated through the machine.
Page 101
SmartShop CBX Fiber Laser 13. Verify the emergency stop is disengaged. a. Pull and turn the knob clockwise to verify it is in the “out” position. Figure 6–188 Figure 6–189...
Page 102
SmartShop CBX Fiber Laser 14. Turn the power key clockwise to engage the power to the machine. a. The status light will illuminate to indicate the machine is receiving power. Figure 6–190 15. Press the PC button. a. The PC will boot up and the display screen will engage.
Page 103
SmartShop CBX Fiber Laser 16. Press the “light” button to verify the light is working. Figure 6–192 17. Close and secure all doors. Figure 6–193...
SmartShop CBX Fiber Laser Other Remote Control Functions Quickly lowers the Move the laser to laser head height (0,0,0) axis point. along the z-axis. Quickly raises the Identifies the laser head height position of the along the z-axis. sheet on the work area.
SmartShop CBX Fiber Laser 9.0 Maintenance Fiber laser cutting machine needs to do the basic daily maintenance and maintenance to ensure the normal operation of the equipment, reduce possible failures, and prolong the service life of the equipment. Follow this maintenance table to ensure proper use of the machine.
Page 114
SmartShop CBX Fiber Laser Check whether Check the Check if Check the surface of Check if the air filter is cable contact of photoelectric safety relay Check the cutting each proximity Change the chiller dirty. Clean or replace if each line...
SmartShop CBX Fiber Laser Cleaning the Helical Racks The helical racks on the machine may collect dust and debris which can interfere with the smooth operation of the gantry and spindle. Clean with a plastic brush following the angle of the grooves.
SmartShop CBX Fiber Laser 10.0 Troubleshooting Problem Causes Solution Slag or dross on backside of Not enough gas pressure Increase gas pressure Striations on cuts Too much gas pressure Decrease gas pressure • Align the laser beam Nozzle is hot Beam is unaligned •...
Machines sold through dealers must be registered with Laguna Tools within thirty (30) days of purchase to be covered by this warranty. Laguna Tools guarantees all new machines sold to be free of manufacturers’ defective workmanship, parts, and materials.
Page 118
Laguna Tools is not responsible for damage or loss caused by a freight company or other circumstances not in our control. All claims for loss or damaged goods must be notified to Laguna Tools within twenty-four (24) hours of delivery.
Page 119
Tools is not responsible for damage or loss caused by a freight company or other circumstances not in our control. All claims for loss or damaged goods must be notified to Laguna Tools within twenty-four (24) hours of delivery. Please contact our Customer Service Department for more information.
