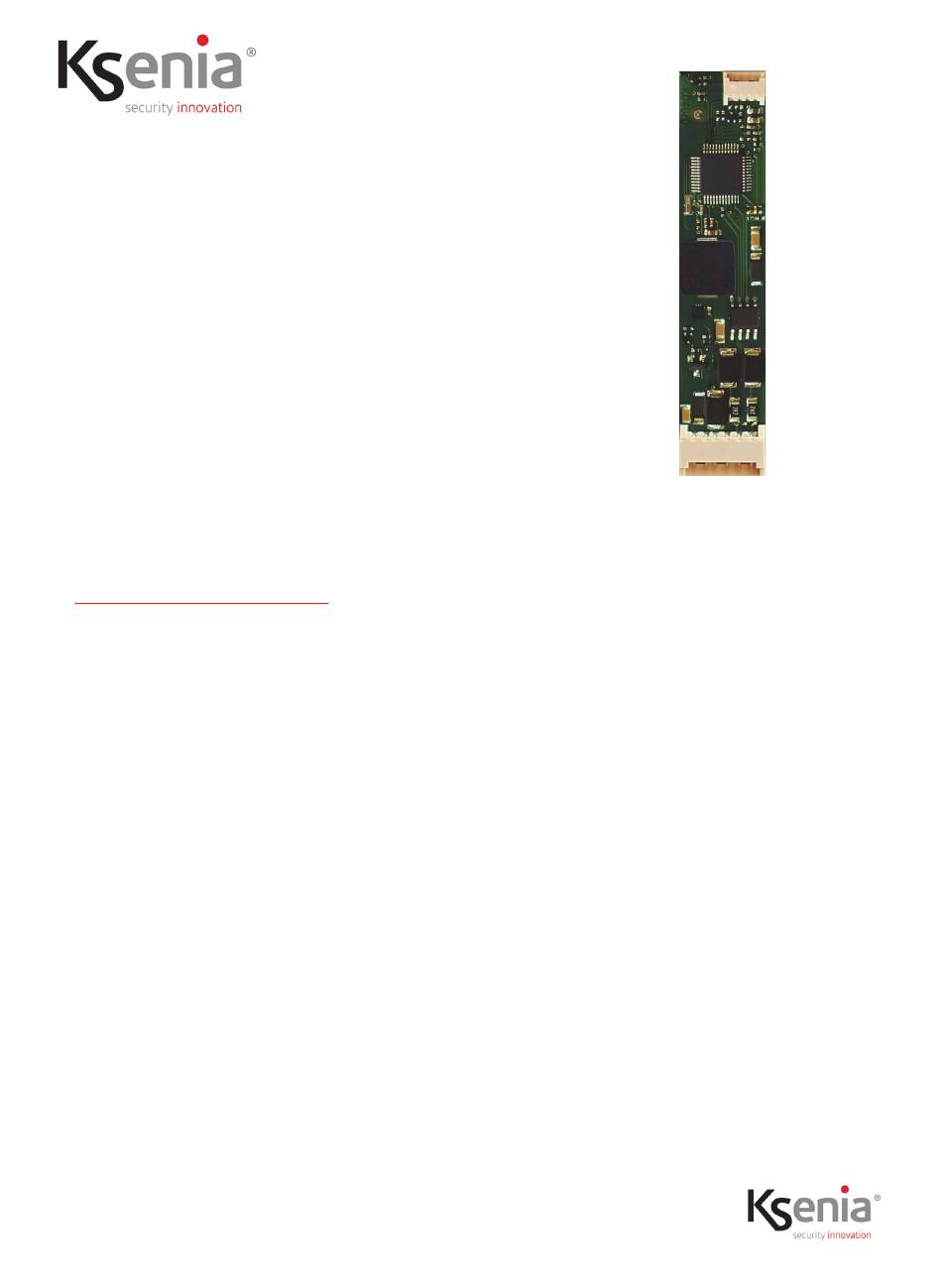

Ksenia matrix BUS KSI2300006.300 Installation Manual

matrix BUS
Expansion module
Installation guide
INTRODUCTION

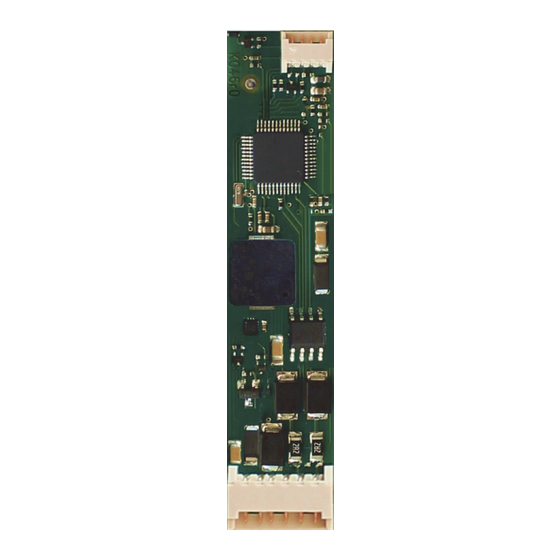

matrix BUS is a wired expansion card that can operate as UNIVERSAL, in this case it adds 1 zone (input) of
NC/NO, balanced and inertial type to the lares 4.0, or as OPTEX, and in this case it can add up to three zones,
depending on the type of Optex sensor connected.
For connecting Optex sensors, matrix BUS provides a serial port compatible with the Optex sensors of the
following series:
• BXS (PIR or PIR+AM/ curtain coverage right and left sides);
• VXS (PIR+AM/ PIR+AM+MW/ 90° coverage);
• WXI* (PIR/ PIR+AM/ 180° coverage right and left sides);
• WXS* (PIR+AM/ PIR+AM+MW/ 180° coverage right and left sides);
• QXI* (PIR/ PIR+MW/ 120° coverage right and left sides);
allowing their remote management (configuration data and detailed alarm signalling) through Ksenia
SecureWeb and from Ksenia PRO App.
matrix BUS is supplied with one cable for connecting Optex motion detectors and with one 6-wires cable of
30cm (of which 4 wires for connecting the BUS of lares 4.0 control panel, 1 wire for the programmable
generic input and 1 wire for the positive power supply). Finally, it is provided with a double-side adhesive
support for positioning matrix BUS inside the sensors.
code R30046.110en
ed.01/2021
KSI2300006.300
